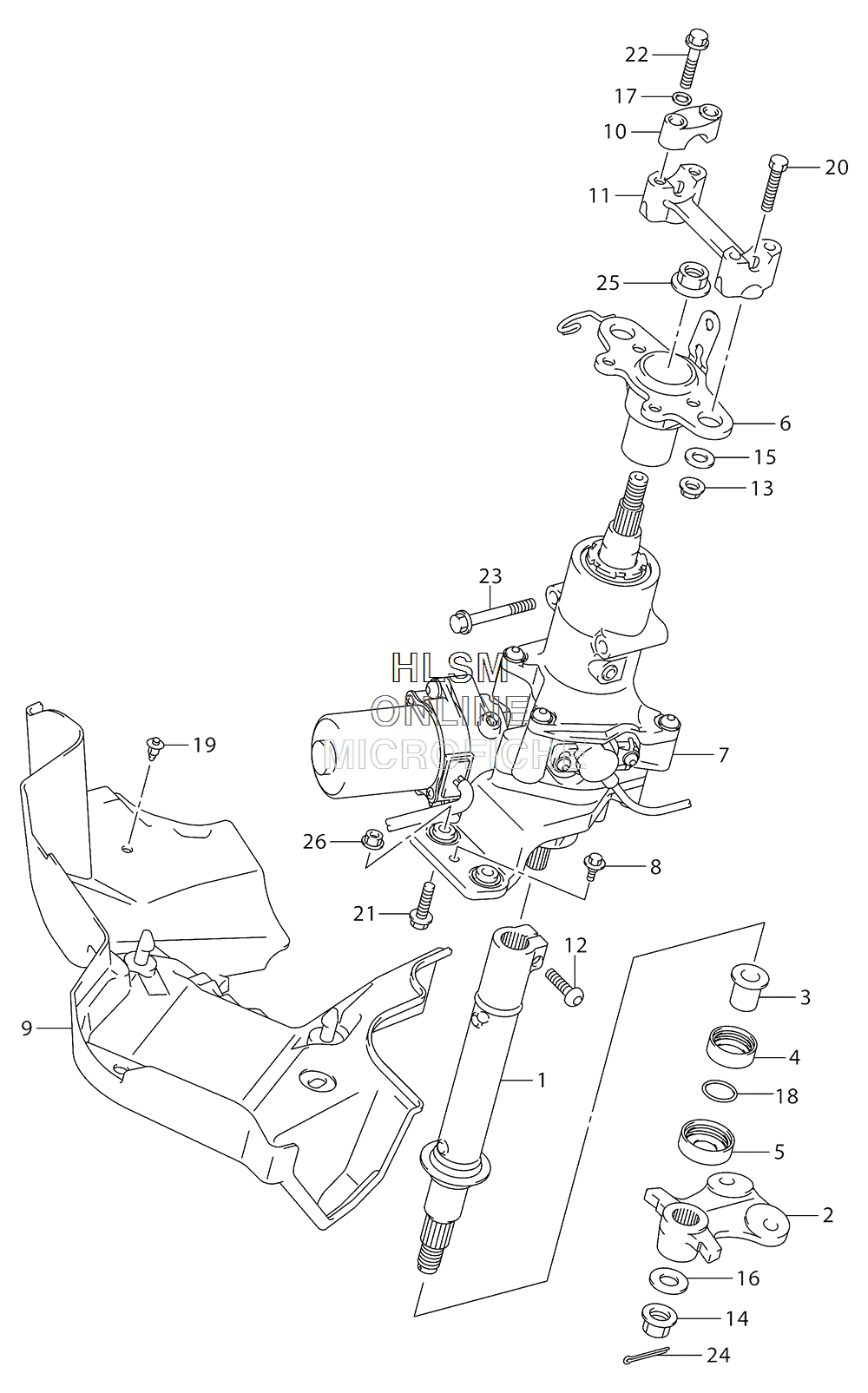

STEERING SHAFT для Suzuki KINGQUAD 500 AXI SE [LTA500XPZL6] - 2016 года выпуска`
-
№АртикулНазвание
-
151650-31G40 SHAFT, STEERINGSHAFT, STEERING
-
251653-31G30 PLATE, STEERING ARMPLATE, STEERING ARM
-
351661-31G00 BUSH, STEERING SHAFT LOWERBUSH, STEERING SHAFT LOWER
-
451662-31G00 SEAL, STEERING SHAFT DUSTSEAL, STEERING SHAFT DUST
-
551663-31G10 SEAL, STEERING LOWER DUSTSEAL, STEERING LOWER DUST
-
651680-31G00 PLATE, STEERING SHAFTPLATE, STEERING SHAFT
-
751700-31G10 BODY ASSY, STEERING EPSBODY ASSY, STEERING EPS
-
809111-06085 BOLT (6X12)BOLT (6X12)
-
951771-31G00 PLATE, EPS ECUPLATE, EPS ECU
-
1056211-09F00-291 CLAMP, HANDLE HOLDER UP (BLACK)CLAMP, HANDLE HOLDER UP (BLACK)
-
1156211-31G10 CLAMP, HANDLE HOLDERCLAMP, HANDLE HOLDER
-
1209106-08129 BOLT (8X25)BOLT (8X25)
-
1309159-10115 NUTNUT
-
1409159-14027 NUTNUT
-
1509160-10039 WASHER (10.5X22X2.3)WASHER (10.5X22X2.3)
-
1609160-14062 WASHER (14.5X30X3.2)WASHER (14.5X30X3.2)
-
1709164-08015 WASHERWASHER
-
1809280-24010 O RING (D:2.4,ID:23.7)O RING (D:2.4,ID:23.7)
-
1909409-07333 CLIPCLIP
-
2001500-1035A BOLTBOLT
-
2101550-0830A BOLTBOLT
-
2201550-0835A BOLTBOLT
-
2301550-0875A BOLTBOLT
-
2404111-2020A PINPIN
-
2508316-1014A NUTNUT
-
2608319-3108A NUTNUT
