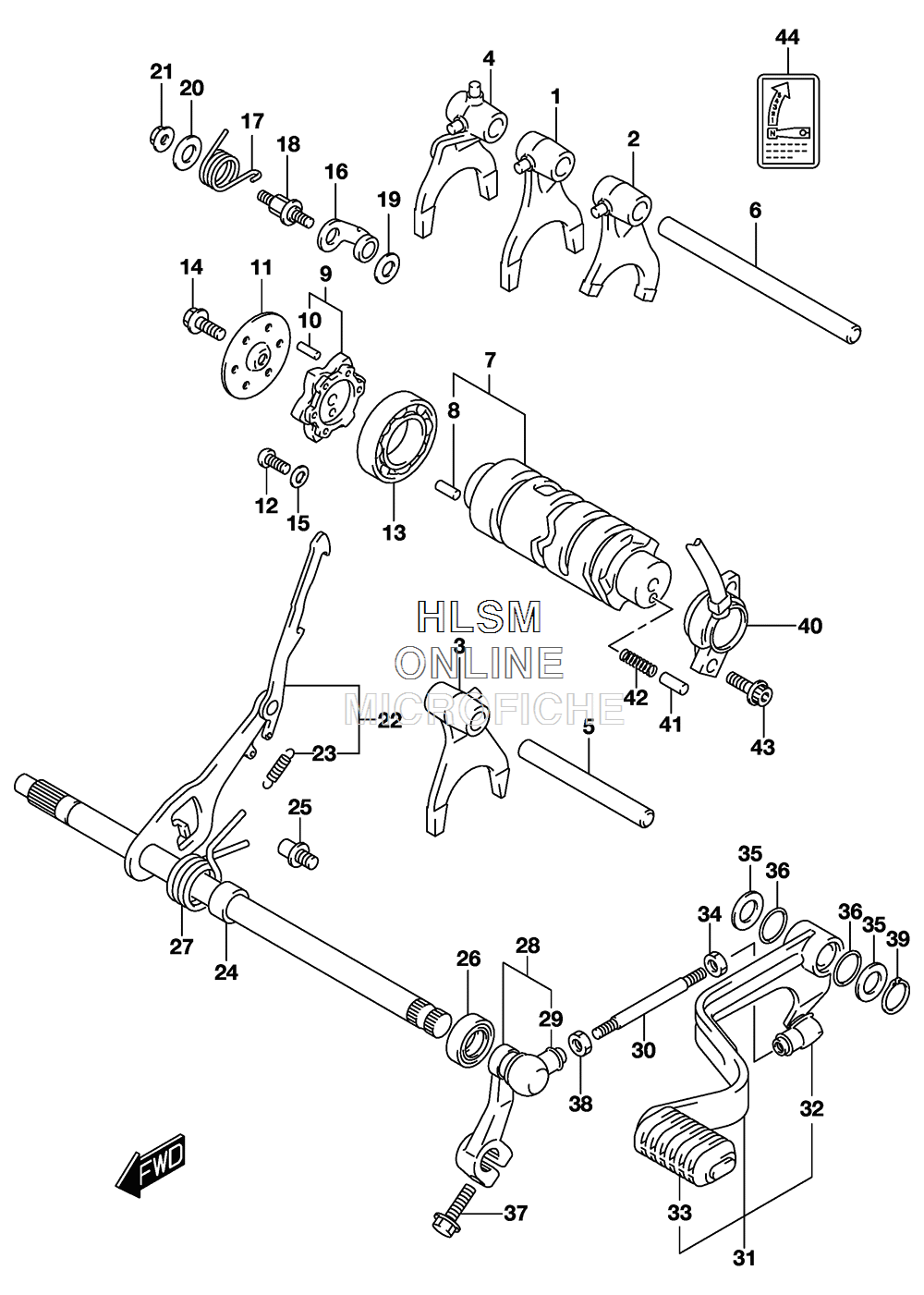

GEAR SHIFTING (1) (CAN) для Suzuki KINGQUAD 400 FSI [LTF400FL6] - 2016 года выпуска
-
№АртикулНазвание
-
125211-19B00 FORK, GEAR SHIFT, NO.1FORK, GEAR SHIFT, NO.1
-
225221-19B00 FORK, GEAR SHIFT, NO.2FORK, GEAR SHIFT, NO.2
-
325231-19B00 FORK, GEAR SHIFT, NO.3FORK, GEAR SHIFT, NO.3
-
425240-38F60 FORK, GEAR SHIFT, REVERSEFORK, GEAR SHIFT, REVERSE
-
525411-14311 SHAFT, GEAR SHIFT FORK NO.2SHAFT, GEAR SHIFT FORK NO.2
-
625411-18900 SHAFT, GEAR SHIFT FORK NO.1SHAFT, GEAR SHIFT FORK NO.1
-
725310-38F50 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
804221-04089 ...PIN...PIN
-
925380-44D00 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
1009261-04002 ...ROLLER (4X13.8)...ROLLER (4X13.8)
-
1125382-44D00 GUIDE, GEAR SHIFTGUIDE, GEAR SHIFT
-
1209125-06122 SCREW (6X12)SCREW (6X12)
-
1309262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
1401500-0620A BOLTBOLT
-
1508211-06165 WASHERWASHER
-
1625350-24B00 STOPPER, GEAR SHIFT CAMSTOPPER, GEAR SHIFT CAM
-
1725355-38F60 SPRING. GEAR SHIFT CAM STOPPERSPRING. GEAR SHIFT CAM STOPPER
-
1825356-12C00 SUPPORT, GEAR SHIFTSUPPORT, GEAR SHIFT
-
1908211-06141 WASHERWASHER
-
2008211-06181 WASHERWASHER
-
2108316-1006A NUTNUT
-
2225510-38F60 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
2325518-38F50 ...SPRING...SPRING
-
2425516-44D00 SPACER, GEAR SHIFTSPACER, GEAR SHIFT
-
2525671-36A00 STOPPER, GEAR SHIFTSTOPPER, GEAR SHIFT
-
2609283-14005 OIL SEAL (14X22X7.3)OIL SEAL (14X22X7.3)
-
2709444-26025 SPRINGSPRING
-
2825520-38F60 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
2925526-47000 ...COVER, DUST...COVER, DUST
-
3025525-26B10 ROD, GEAR SHIFT LINKROD, GEAR SHIFT LINK
-
3125600-27H50 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3225526-47000 ...COVER, DUST...COVER, DUST
-
3325652-24401 ...RUBBER...RUBBER
-
3409140-06025 NUTNUT
-
3509181-13003 SHIM (13X20X0.8)SHIM (13X20X0.8)
-
3609280-10016 O RING (D:1.9,ID:9.8)O RING (D:1.9,ID:9.8)
-
3701550-0620A BOLTBOLT
-
3808310-0006A NUTNUT
-
3908331-3113A CIRCLIPCIRCLIP
-
4037720-27H10 BASE ASSY, GEAR SHIFT TERMBASE ASSY, GEAR SHIFT TERM
-
4109209-05011 PIN (5X15.5)PIN (5X15.5)
-
4209440-04010 SPRINGSPRING
-
4307120-0516A BOLTBOLT
-
4468392-24220 LABEL, GEAR SHIFT PATTERNLABEL, GEAR SHIFT PATTERN
