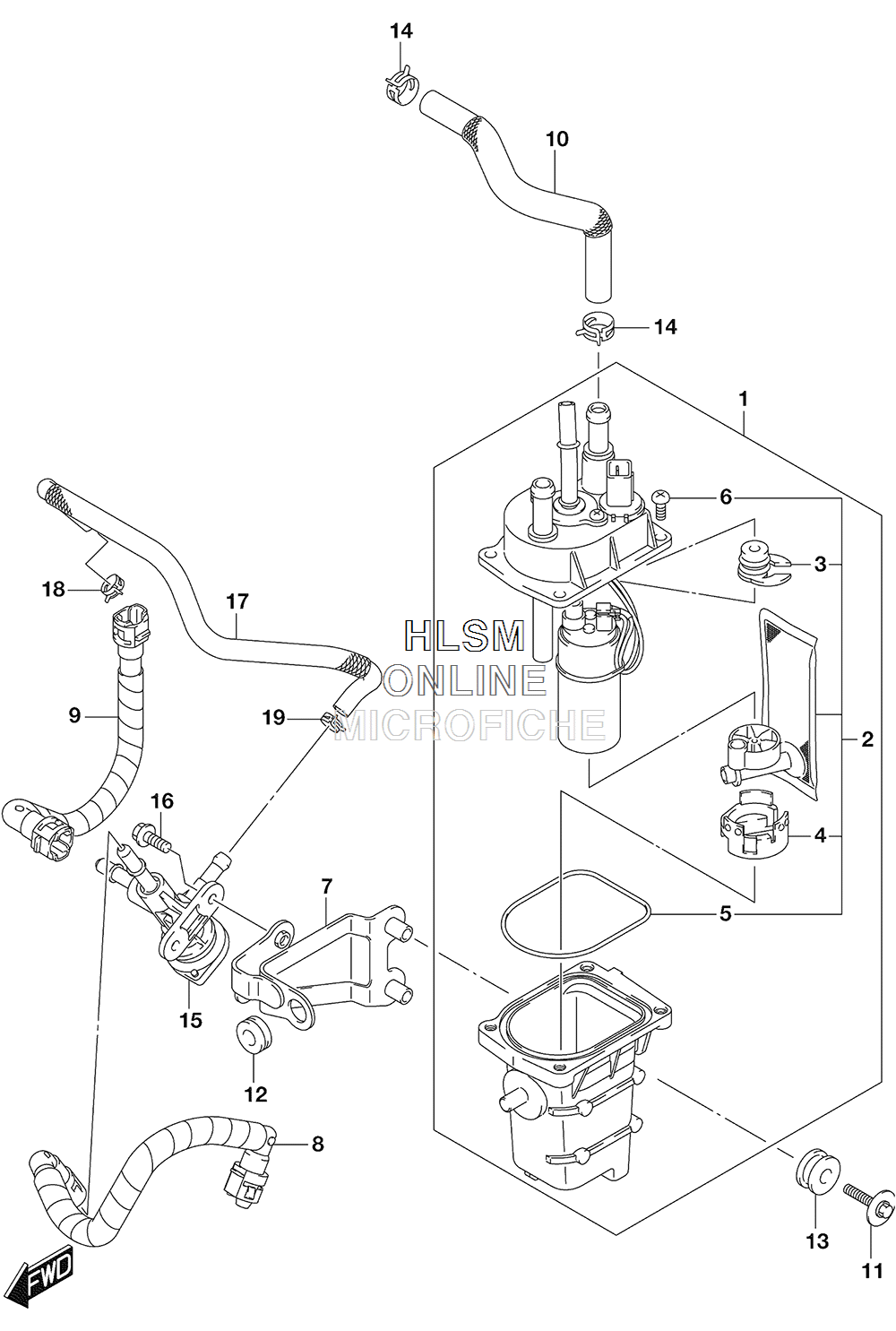

FUEL PUMP для Suzuki LT-A400FZL5 King Quad 400ASi - 2015 года выпуска
-
№АртикулНазвание
-
115100-33H02 PUMP ASSY, FUELPUMP ASSY, FUEL
-
215420-33H00 FILTER SET, FUEL PUMPFILTER SET, FUEL PUMP
-
315141-33H00 INSULATORINSULATOR
-
415142-33H00 INSULATORINSULATOR
-
515162-33H00 O RINGO RING
-
613602-14G50 SCREWSCREW
-
715310-27H00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
815810-27H01 HOSE, FUEL NO.1HOSE, FUEL NO.1
-
915820-27H01 HOSE, FUEL NO.2HOSE, FUEL NO.2
-
1015831-27H00 HOSE, FUEL NO.3HOSE, FUEL NO.3
-
1109116-06186 BOLT (6X25)BOLT (6X25)
-
1209320-08021 CUSHIONCUSHION
-
1309320-10503 CUSHIONCUSHION
-
1409401-12410 CLIPCLIP
-
1544300-45G20 REGULATOR ASSY, FUELREGULATOR ASSY, FUEL
-
1601547-0616A BOLTBOLT
-
1715841-27H00 HOSE, FUEL RETURNHOSE, FUEL RETURN
-
1809401-11419 CLIPCLIP
-
1909401-13414 CLIPCLIP
