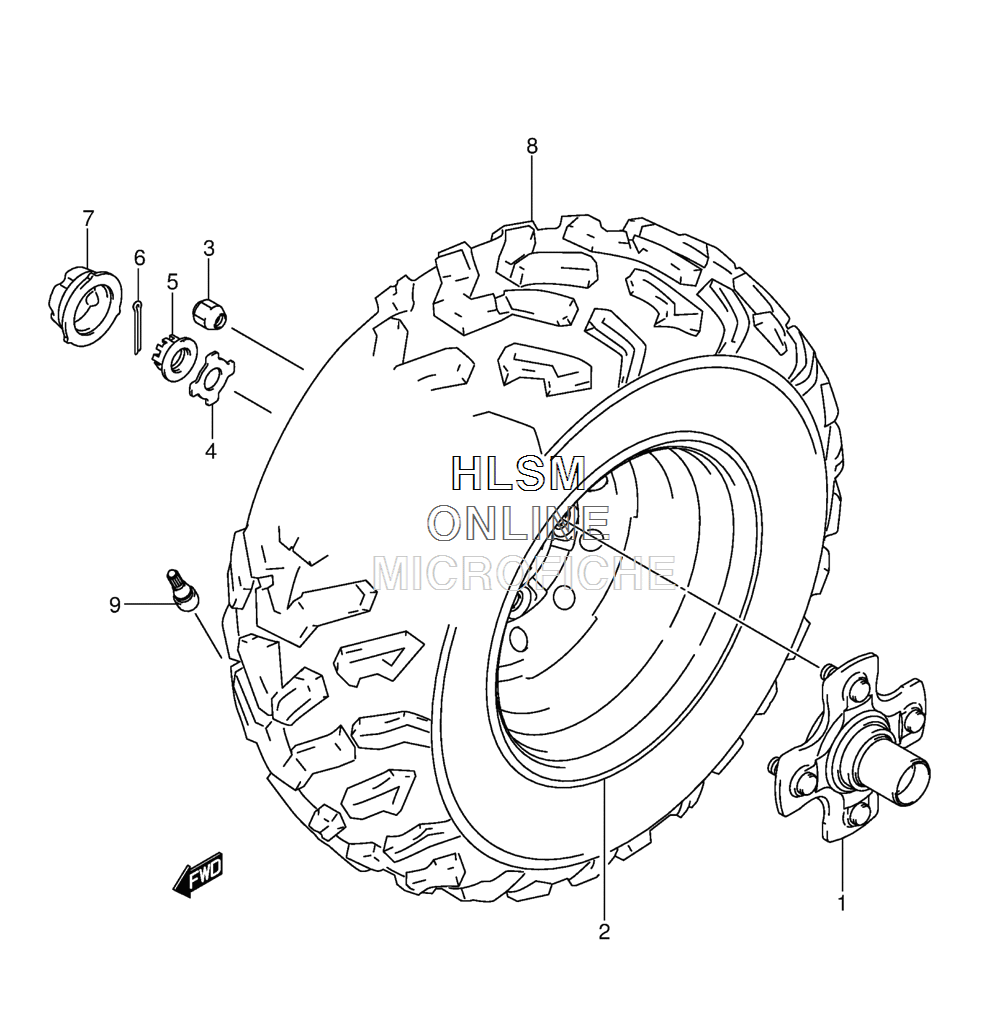

WHEEL - REAR - RIGHT для Suzuki LT-A500X KingQuad 500X (STANDARD COLORS) - 2014 года выпуска
-
№АртикулНазвание
-
164110-31G10 HUB, REAR WHEELHUB, REAR WHEEL
-
265310-11H00-291 RIM, REAR WHEEL (12X7.5AT) (BLACK)RIM, REAR WHEEL (12X7.5AT) (BLACK)
-
265310-11H00-YUM RIM, REAR WHEEL (12X7.5AT) (SILVER)RIM, REAR WHEEL (12X7.5AT) (SILVER)
-
309140-10021 NUTNUT
-
464723-03G00 WASHERWASHER
-
509141-20008 NUTNUT
-
604111-4035A COTTER PINCOTTER PIN
-
754725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
865110-11H00 TIRE, REAR (AT25X10-12)TIRE, REAR (AT25X10-12)
-
943130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
