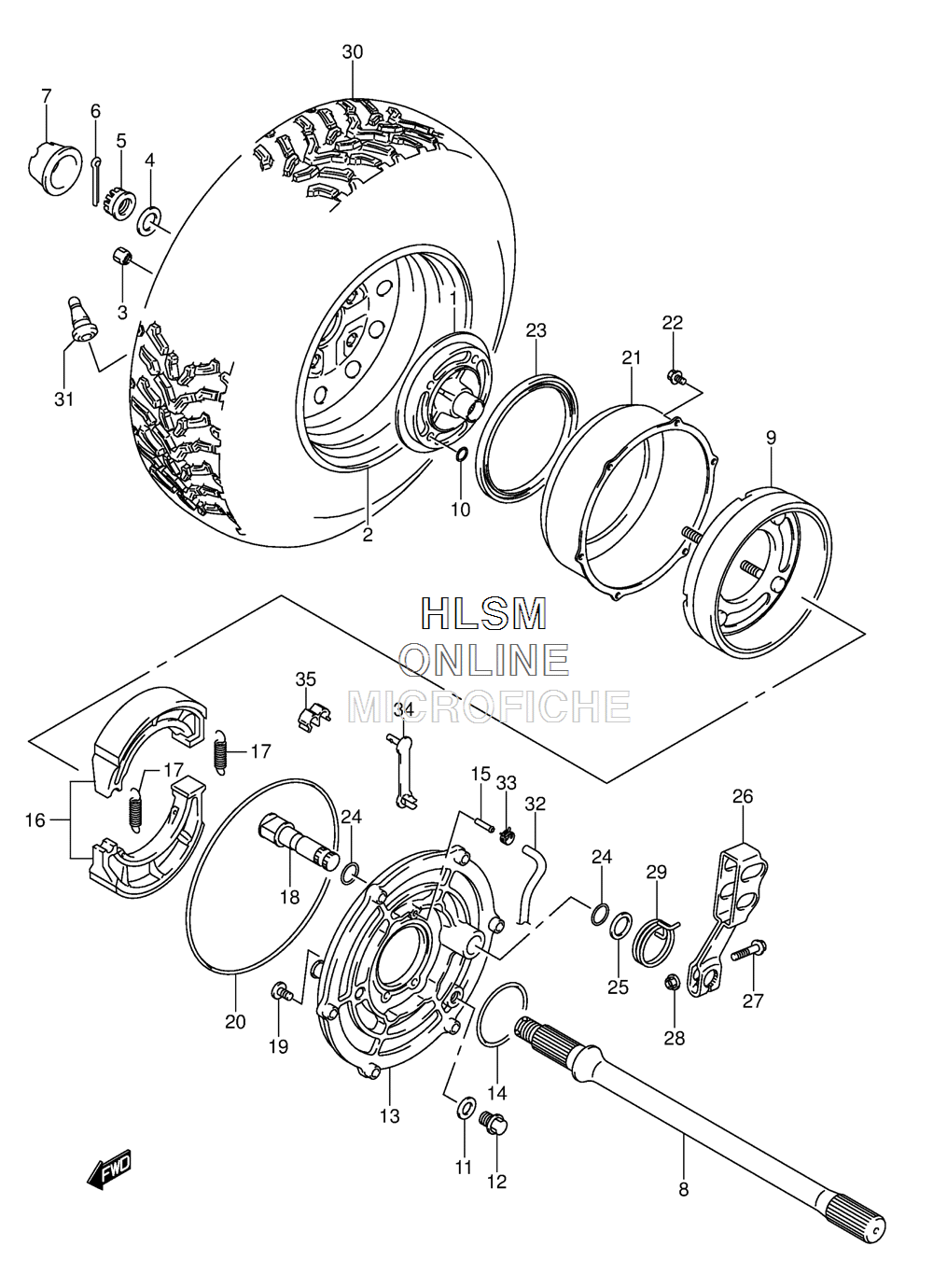

WHEEL - RIGHT REAR W/ AXLE для Suzuki LT-A400 KingQuad 400ASi (STANDARD COLORS) - 2014 года выпуска`
-
№АртикулНазвание
-
164111-38F32 HUB, REAR WHEEL RIGHT HANDHUB, REAR WHEEL RIGHT HAND
-
265310-38F40-291 RIM, REAR WHEEL (12X7.5AT) (BLACK)RIM, REAR WHEEL (12X7.5AT) (BLACK)
-
309140-10021 NUTNUT
-
464723-38F00 WASHERWASHER
-
509141-20008 NUTNUT
-
604111-4035A COTTER PINCOTTER PIN
-
754725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
864711-38F20 AXLE, REAR RIGHT HANDAXLE, REAR RIGHT HAND
-
964120-38F00 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
1009280-10016 O RING (D:1.9,ID:9.8)O RING (D:1.9,ID:9.8)
-
1109161-10007 WASHER (10X17X2)WASHER (10X17X2)
-
1209247-10008 PLUG (10X12)PLUG (10X12)
-
1364210-38F10 PANEL, REAR BRAKE ANCHORPANEL, REAR BRAKE ANCHOR
-
1409280-63001 O RING (D:1.9,ID:63.1)O RING (D:1.9,ID:63.1)
-
1509364-04004 UNIONUNION
-
1664400-38830 SHOE SET, REAR BRAKESHOE SET, REAR BRAKE
-
1755420-30000 SPRING, BRAKE SHOESPRING, BRAKE SHOE
-
1864440-09F00 CAM, REAR BRAKECAM, REAR BRAKE
-
1909106-08161 BOLT (8X20)BOLT (8X20)
-
2009280-00038 O RING (D:3.7,ID:186)O RING (D:3.7,ID:186)
-
2164123-38F00 COVER, REAR BRAKE DRUMCOVER, REAR BRAKE DRUM
-
2201547-0612A BOLTBOLT
-
2364124-38F00 SEAL, REAR BRAKE DRUM COVERSEAL, REAR BRAKE DRUM COVER
-
2464443-18A00 O RING, REAR BRAKE CAM DUSTO RING, REAR BRAKE CAM DUST
-
2509160-16033 WASHER (16X26X1)WASHER (16X26X1)
-
2664451-09F00 LEVER, REAR BRAKE CAMLEVER, REAR BRAKE CAM
-
2701550-0635A BOLTBOLT
-
2808316-1006A NUTNUT
-
2964484-38F00 SPRING, REAR BRAKE CAM LEVERSPRING, REAR BRAKE CAM LEVER
-
3065110-38FC0 TIRE, REAR (AT25X10-12)TIRE, REAR (AT25X10-12)
-
3143130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
3264275-27H00 HOSE, REAR BRAKE BREATHERHOSE, REAR BRAKE BREATHER
-
3309401-06405 CLIPCLIP
-
3409407-03401 CLAMP (L:33)CLAMP (L:33)
-
3509408-00200 CLIPCLIP
