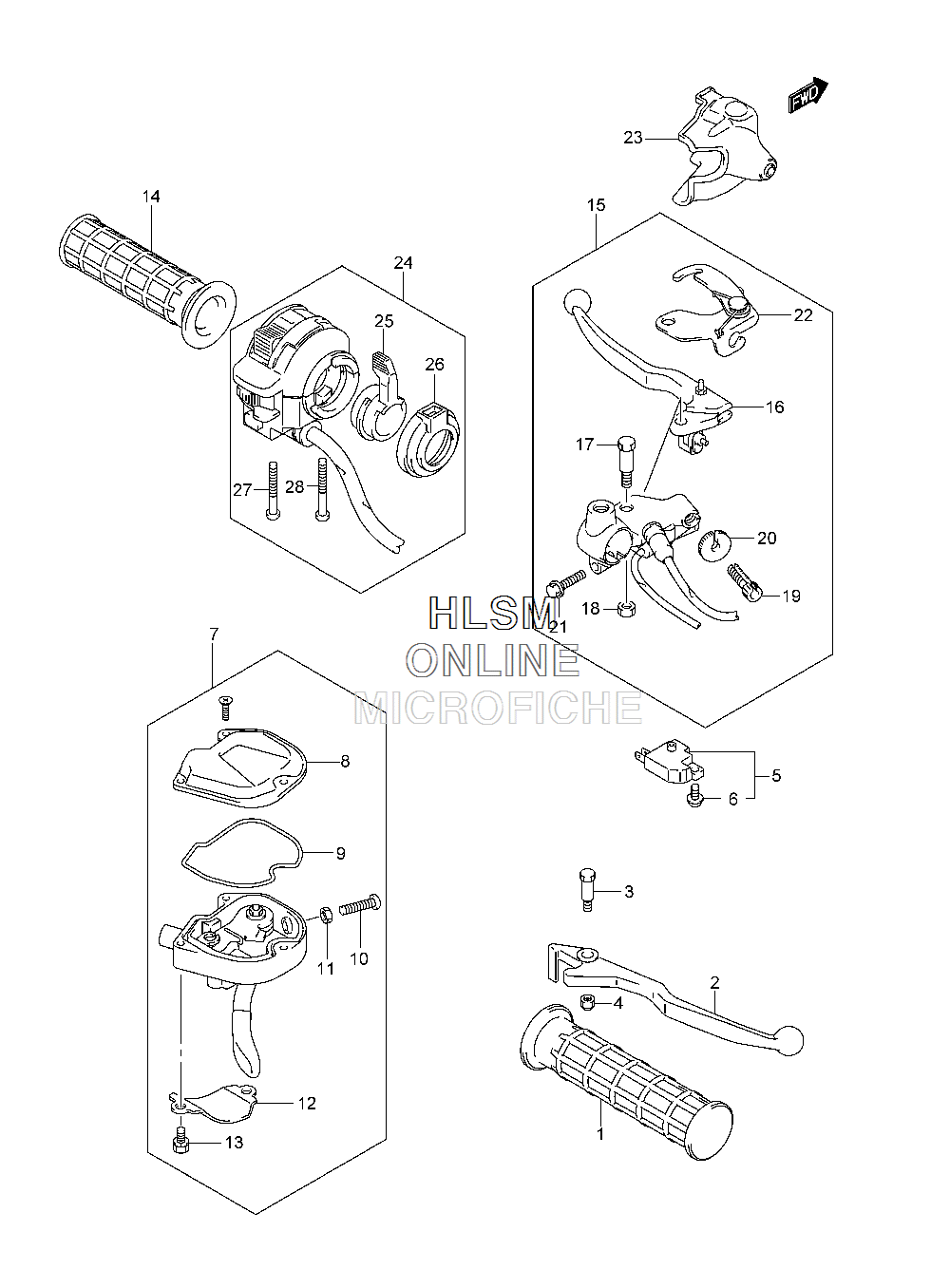

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-F400FZ KingQuad 400FSi (CAMO - TRUE TIMBER XD3) - 2013 года выпуска`
-
№АртикулНазвание
-
157211-21G10 GRIPGRIP
-
257421-39D20 LEVER, FRONT BRAKELEVER, FRONT BRAKE
-
357431-04F00 BOLT, FRONT BRAKE LEVER PIVOTBOLT, FRONT BRAKE LEVER PIVOT
-
457433-09F00 NUT, FRONT BRAKE LEVER PIVOTNUT, FRONT BRAKE LEVER PIVOT
-
557460-14J01 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
657465-17C00 ...SCREW...SCREW
-
757100-27H01 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
857121-27H00 ...CAP...CAP
-
957157-27H00 ...GASKET...GASKET
-
1002112-0520B ...SCREW...SCREW
-
1108310-0005B ...NUT...NUT
-
1257126-07G00 ...HOLDER...HOLDER
-
1357127-07G00 ...BOLT...BOLT
-
1457211-21G10 GRIPGRIP
-
1557501-27H00 LEVER ASSY, REAR BRAKELEVER ASSY, REAR BRAKE
-
1657620-27820 ...LEVER SET, BRAKE...LEVER SET, BRAKE
-
1757431-09F00 ...BOLT, PIVOT...BOLT, PIVOT
-
1808319-2106B ...NUT...NUT
-
1957441-08C00 ...ADJUSTER, WIRE...ADJUSTER, WIRE
-
2057442-08C00 ...NUT, LOCK...NUT, LOCK
-
2101547-0620B ...BOLT...BOLT
-
2257790-38FA0 ...STOPPER, BRAKE LEVER...STOPPER, BRAKE LEVER
-
2357541-38FA0 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
2437400-27H00 SWITCH ASSY, LEFTSWITCH ASSY, LEFT
-
2537571-19B01 ...LEVER, CHOKE...LEVER, CHOKE
-
2637576-19B01 ...COVER, CHOKE...COVER, CHOKE
-
2702112-05407 ...SCREW...SCREW
-
2802112-05457 ...SCREW...SCREW
