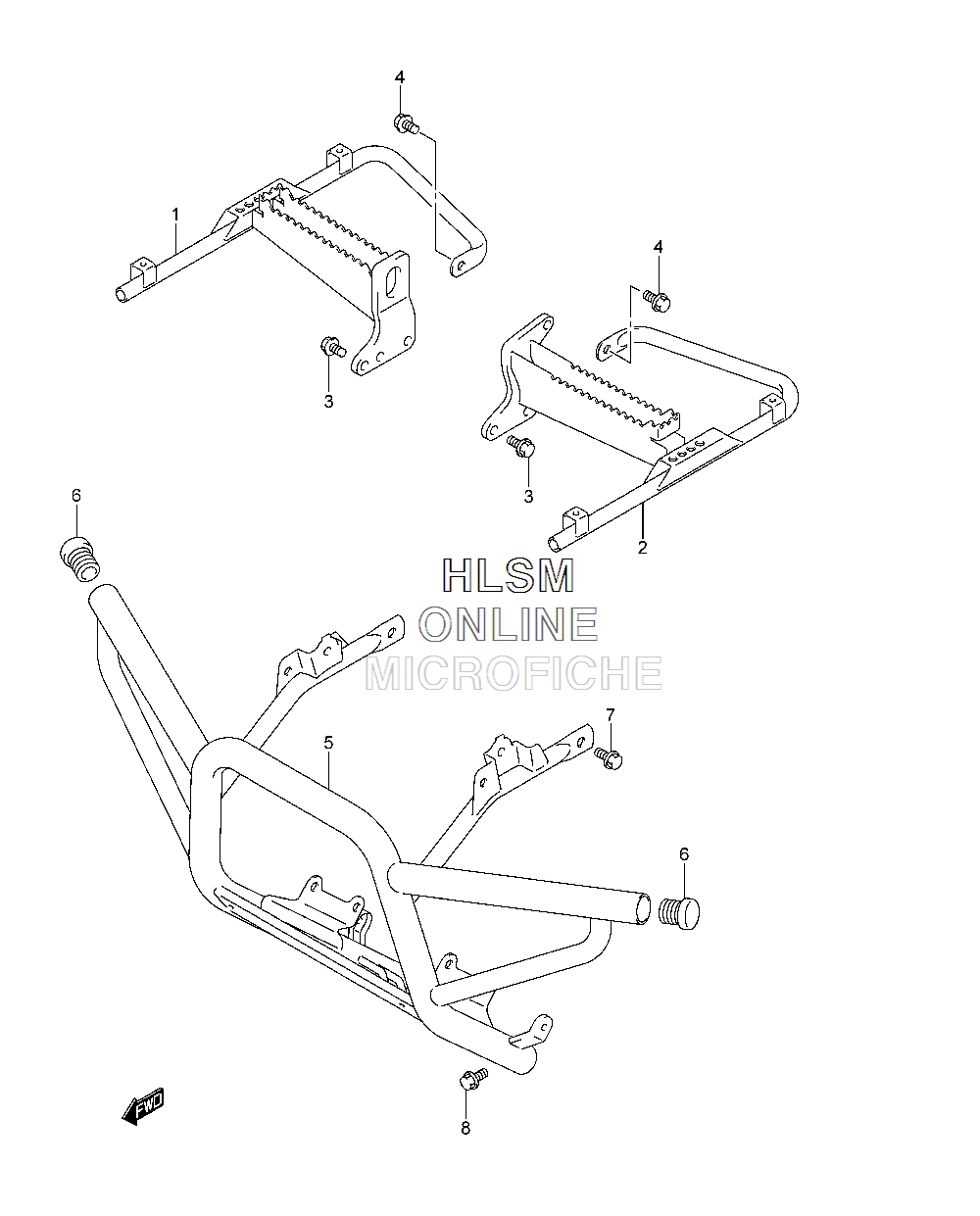

FOOTREST W/ BUMBER для Suzuki LT-F400F KingQuad 400FSi (STANDARD COLORS) - 2013 года выпуска`
-
№АртикулНазвание
-
143510-27HA0 FOOTREST, RIGHTFOOTREST, RIGHT
-
243520-27HA0 FOOTREST, LEFTFOOTREST, LEFT
-
309103-10275 BOLT (10X25)BOLT (10X25)
-
401550-0816A BOLTBOLT
-
546710-27H00-YSN GRIP, FRONT (BLACK)GRIP, FRONT (BLACK)
-
643978-38F00 CAPCAP
-
701550-0816A BOLTBOLT
-
809103-08441 BOLT (8X16)BOLT (8X16)
