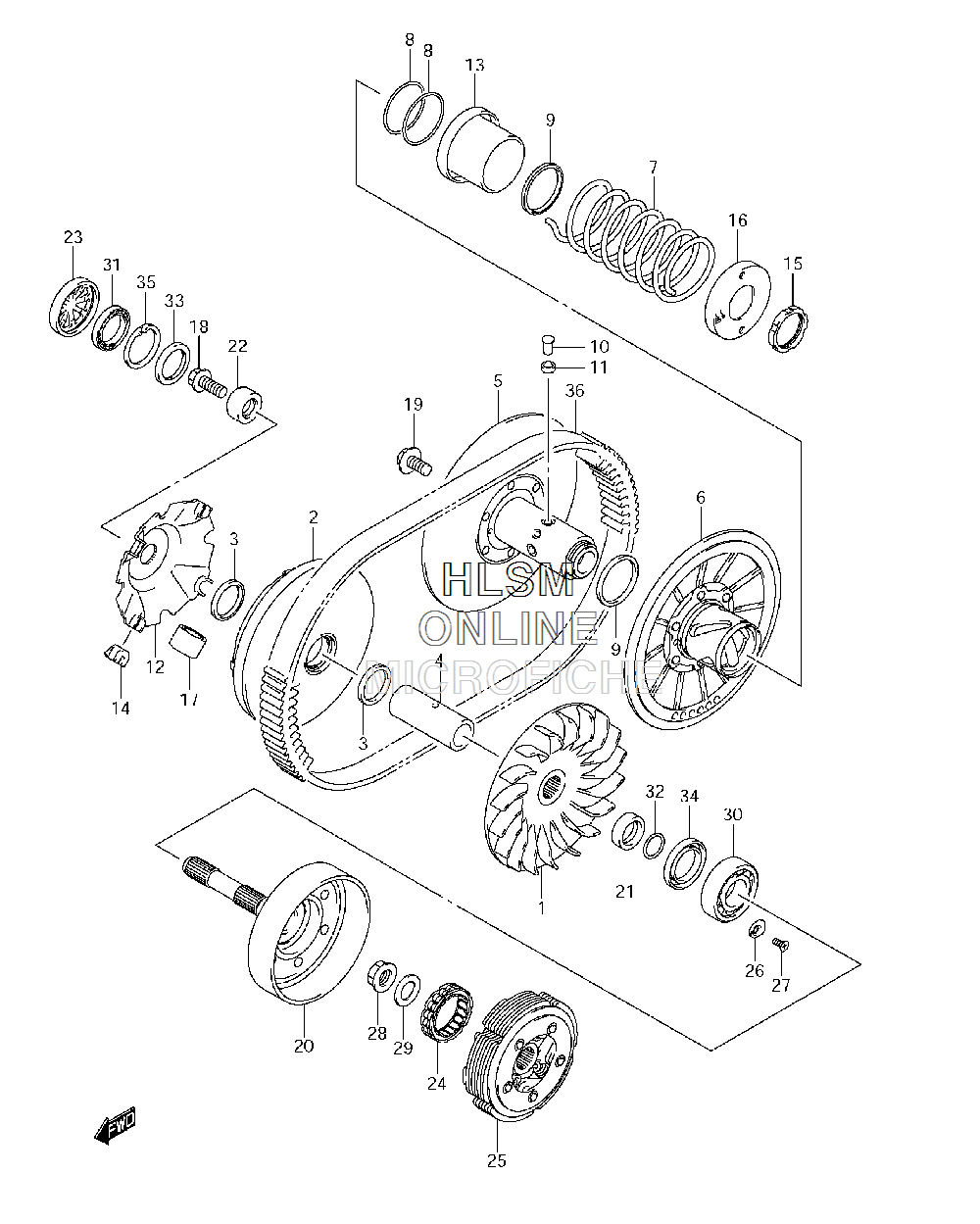

TRANSMISSION (1) для Suzuki LT-A750XZ KingQuad 750AXi (CAMO/LTD METALLIC RED) - 2013 года выпуска
-
№АртикулНазвание
-
121110-31G00 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
221120-31G00 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
321124-31G00 SEAL, MOVABLE DRIVE FACE OILSEAL, MOVABLE DRIVE FACE OIL
-
421125-31G00 SPACER, MOVABLE DRIVESPACER, MOVABLE DRIVE
-
521210-31G01 FACE, FIXED DRIVENFACE, FIXED DRIVEN
-
621240-31G01 FACE, MOVABLE DRIVENFACE, MOVABLE DRIVEN
-
721243-09F52 SPRING, MOVABLE DRIVENSPRING, MOVABLE DRIVEN
-
821245-15F00 O-RING, MOVABLE DRIVENO-RING, MOVABLE DRIVEN
-
921247-31G00 SEAL, MOVABLE DRIVENSEAL, MOVABLE DRIVEN
-
1021248-15F01 PIN, MOVABLE DRIVENPIN, MOVABLE DRIVEN
-
1121249-15F00 SPACER, MOVABLE DRIVENSPACER, MOVABLE DRIVEN
-
1221431-31G00 PLATE, MOVABLE DRIVEPLATE, MOVABLE DRIVE
-
1321471-09F60 SHEET, MOVABLE DRIVENSHEET, MOVABLE DRIVEN
-
1421481-14F00 DAMPER, MOVABLE DRIVE PLATEDAMPER, MOVABLE DRIVE PLATE
-
1521518-09F50 NUT, DRIVEN PULLEY SPRINGNUT, DRIVEN PULLEY SPRING
-
1621519-09F52 HOLDER, MOVABLE DRIVEN SPRINGHOLDER, MOVABLE DRIVEN SPRING
-
1721650-31G00 ROLLER, MOVABLE DRIVEROLLER, MOVABLE DRIVE
-
1809103-12028 BOLT (12X30)BOLT (12X30)
-
1909103-12049 BOLT (12X25)BOLT (12X25)
-
2021100-31G20 HOUSING, CLUTCHHOUSING, CLUTCH
-
2121102-31G00 SPACER, PRIMARY SHAFTSPACER, PRIMARY SHAFT
-
2221106-31G10 SPACER, CLUTCH HOUSINGSPACER, CLUTCH HOUSING
-
2321107-31G00 CAP, V-BELT BEARING HOUSINGCAP, V-BELT BEARING HOUSING
-
2421273-44D00 CLUTCH, ONE WAYCLUTCH, ONE WAY
-
2521500-31G00 CLUTCH ASSY, SHOE (NA)CLUTCH ASSY, SHOE (NA)
-
2624741-20A00 RETAINER, CL HSG BRGRETAINER, CL HSG BRG
-
2709126-06011 SCREW (6X12)SCREW (6X12)
-
2809159-18023 NUTNUT
-
2909164-18004 WASHERWASHER
-
3009262-28014 BEARING (28X68X18)BEARING (28X68X18)
-
3109262-35075 BEARING (35X47X7)BEARING (35X47X7)
-
3209280-25004 O RING (D:2.4,ID:24.7)O RING (D:2.4,ID:24.7)
-
3309283-35051 OIL SEAL (35X47X5)OIL SEAL (35X47X5)
-
3409283-38025 OIL SEAL (38X56X7)OIL SEAL (38X56X7)
-
3508331-41479 CIRCLIPCIRCLIP
-
3627601-31G00 V-BELT, DRIVEV-BELT, DRIVE
