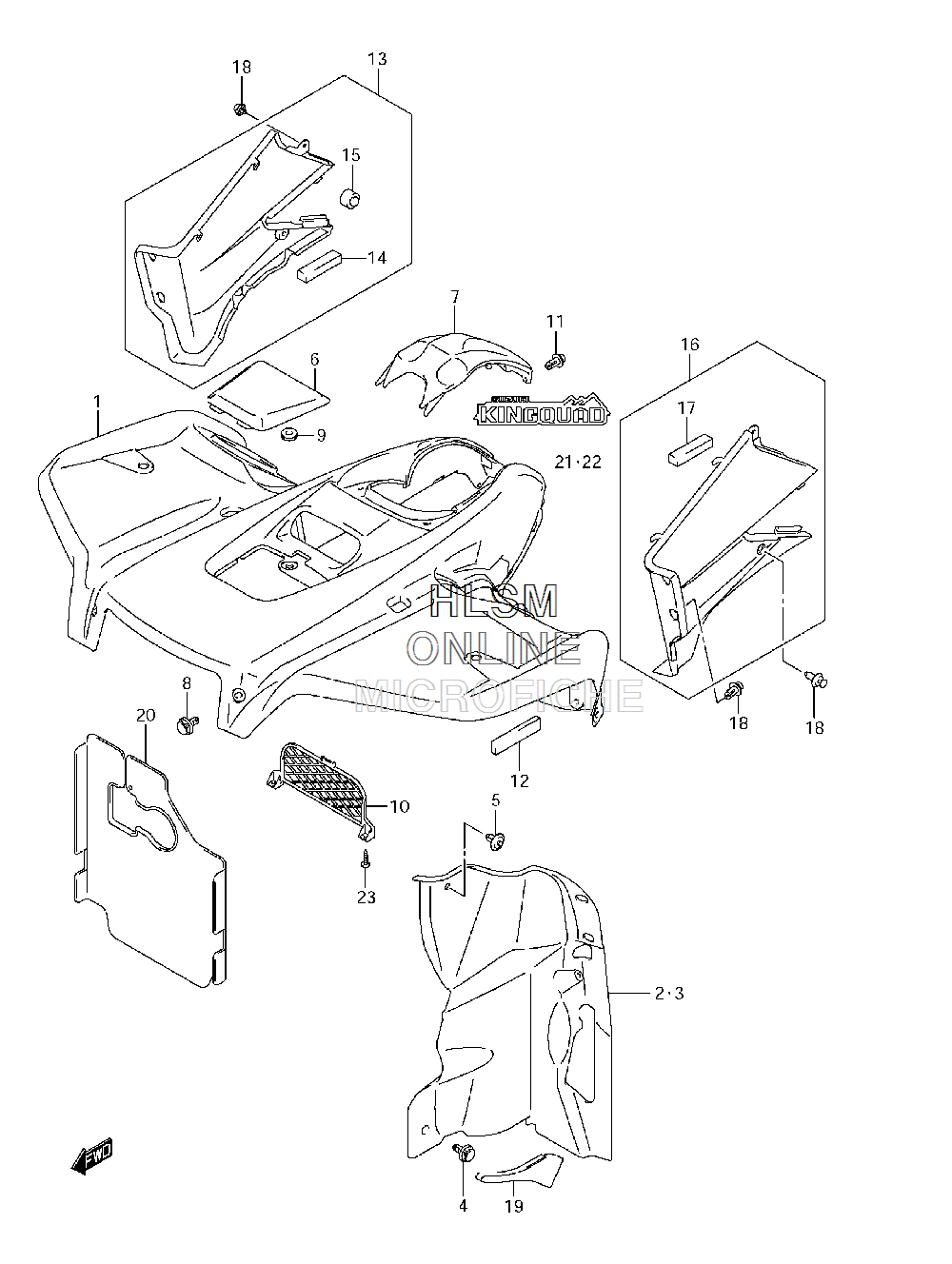

FENDER - FRONT (CANADA) для Suzuki LT-A500X KingQuad 500X (STANDARD COLORS) - 2013 года выпуска`
-
№АртикулНазвание
-
1-153111-31G03-YLG FENDER, FRONT (YLG - TERRA GREEN)FENDER, FRONT (YLG - TERRA GREEN)
-
1-253111-31G03-YLZ FENDER, FRONT (YLZ - SOLID BLACK)FENDER, FRONT (YLZ - SOLID BLACK)
-
1-353111-31G03-YPW FENDER, FRONT (YPW - GREAT BLUE)FENDER, FRONT (YPW - GREAT BLUE)
-
1-453111-31G03-YT9 FENDER, FRONT (YT9 - FLAME RED)FENDER, FRONT (YT9 - FLAME RED)
-
1-553111-31G03-YU1 FENDER, FRONT (YU1 - CHAMPION YELLOW)FENDER, FRONT (YU1 - CHAMPION YELLOW)
-
253411-31G02 MUDFLAP, INNER RHMUDFLAP, INNER RH
-
353421-31G01 MUDFLAP, INNER LHMUDFLAP, INNER LH
-
409409-08335 CLIPCLIP
-
509409-07333 CLIPCLIP
-
6-153341-31G01-YLG LID (YLG - TERRA GREEN)LID (YLG - TERRA GREEN)
-
6-253341-31G01-YLZ LID (YLZ - SOLID BLACK)LID (YLZ - SOLID BLACK)
-
6-353341-31G01-YPW LID (YPW - GREAT BLUE)LID (YPW - GREAT BLUE)
-
6-453341-31G01-YT9 LID (YT9 - FLAME RED)LID (YT9 - FLAME RED)
-
6-553341-31G01-YU1 LID (YU1 - CHAMPION YELLOW)LID (YU1 - CHAMPION YELLOW)
-
7-153119-31G02-YLG FENDER, CENTER (YLG - TERRA GREEN)FENDER, CENTER (YLG - TERRA GREEN)
-
7-253119-31G02-YLZ FENDER, CENTER (YLZ - SOLID BLACK)FENDER, CENTER (YLZ - SOLID BLACK)
-
7-353119-31G02-YPW FENDER, CENTER (YPW - GREAT BLUE)FENDER, CENTER (YPW - GREAT BLUE)
-
7-453119-31G02-YT9 FENDER, CENTER (YT9 - FLAME RED)FENDER, CENTER (YT9 - FLAME RED)
-
7-553119-31G02-YU1 FENDER, CENTER (YU1 - CHAMPION YELLOW)FENDER, CENTER (YU1 - CHAMPION YELLOW)
-
809409-08335 CLIPCLIP
-
909320-08018 CUSHIONCUSHION
-
1053212-31G01 COVER, INNERCOVER, INNER
-
1109409-08335 CLIPCLIP
-
1253145-07G01 CUSHION, FENDER SIDECUSHION, FENDER SIDE
-
1353110-31G10-291 COVER, SIDE RH (BLACK)COVER, SIDE RH (BLACK)
-
1453146-05G00 ...CUSHION, COVER SIDE...CUSHION, COVER SIDE
-
1509321-10019 ...CUSHION...CUSHION
-
1653110-31G20-291 COVER, SIDE LH (BLACK)COVER, SIDE LH (BLACK)
-
1753146-05G00 ...CUSHION, COVER SIDE...CUSHION, COVER SIDE
-
1809409-08335 CLIPCLIP
-
1953116-31G00 MUDGUARD, SIDE RHMUDGUARD, SIDE RH
-
2053117-31G00 COVER, CENTERCOVER, CENTER
-
2168151-31GC0-EFG EMBLEM, RHEMBLEM, RH
-
2268152-31GC0-EFG EMBLEM, LHEMBLEM, LH
-
2303541-0516A SCREWSCREW
