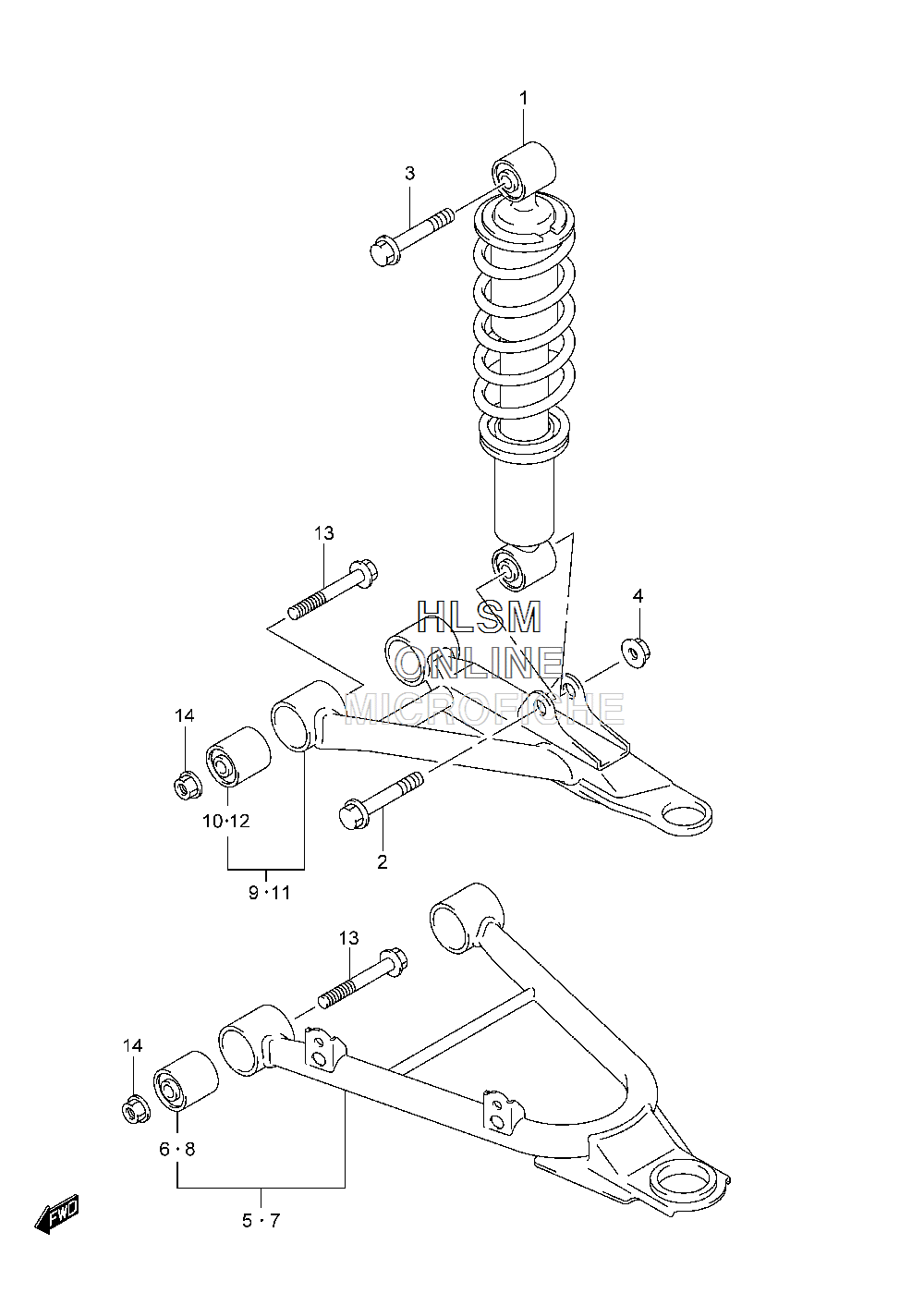

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-A400FC KingQuad 400ASi (CAMO - TRUE TIMBER XD3) - 2013 года выпуска`
-
№АртикулНазвание
-
152100-27H10-019 ABSORBER ASSY, FRONT SHOCK (BLACK)ABSORBER ASSY, FRONT SHOCK (BLACK)
-
209103-10126 BOLT (10X48) (LOWER)BOLT (10X48) (LOWER)
-
309103-10352 BOLT (10X48) (UPPER)BOLT (10X48) (UPPER)
-
408319-3110A NUTNUT
-
552410-27820 ARM SET, SUSPENSION LOWER RIGHTARM SET, SUSPENSION LOWER RIGHT
-
609319-10055 ...BUSH...BUSH
-
752420-27820 ARM SET, SUSPENSION LOWER LEFTARM SET, SUSPENSION LOWER LEFT
-
809319-10055 ...BUSH...BUSH
-
952430-27810 ARM SET, SUSPENSION UPPER RIGHTARM SET, SUSPENSION UPPER RIGHT
-
1009319-10055 ...BUSH...BUSH
-
1152440-27810 ARM SET, SUSPENSION UPPER LEFTARM SET, SUSPENSION UPPER LEFT
-
1209319-10055 ...BUSH...BUSH
-
1309103-10301 BOLT (10X60)BOLT (10X60)
-
1409159-10115 NUTNUT
