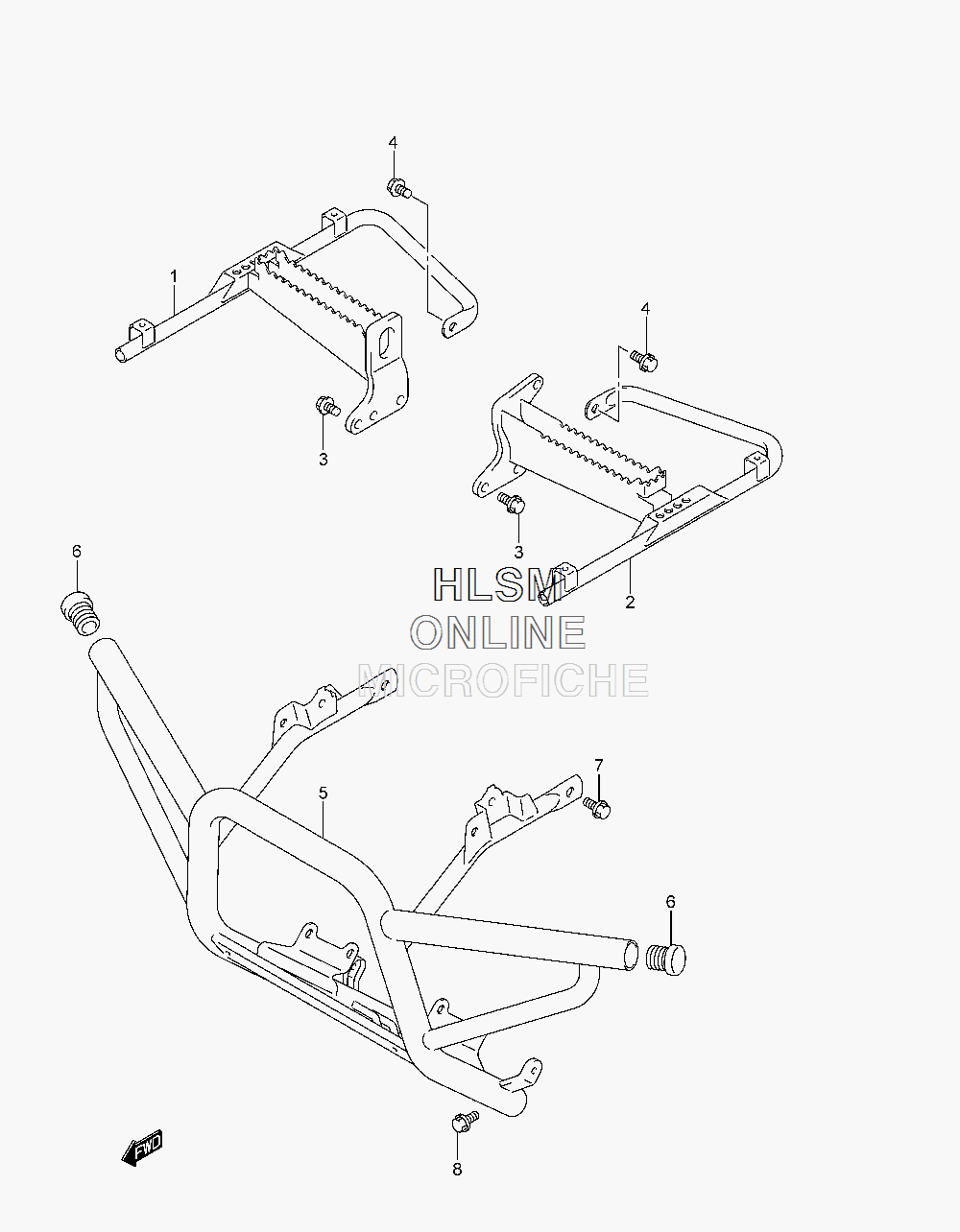

FOOTREST W/ BUMBER для Suzuki LT-A400F KingQuad 400ASi (STANDARD COLORS) - 2013 года выпуска`
-
№АртикулНазвание
-
143510-27HA0 FOOTREST, RIGHTFOOTREST, RIGHT
-
243520-27HB0 FOOTREST, LEFTFOOTREST, LEFT
-
309103-10275 BOLT (10X25)BOLT (10X25)
-
401550-0816A BOLTBOLT
-
546710-27H00-YSN GRIP, FRONT (BLACK)GRIP, FRONT (BLACK)
-
643978-38F00 CAPCAP
-
701550-0816A BOLTBOLT
-
809103-08441 BOLT (8X16)BOLT (8X16)
Все узлы модели:
- AIR CLEANER
- BATTERY
- BRAKE - FRONT CALIPER
- BRAKE - FRONT HOSE
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR PEDAL
- CAM CHAIN
- CAM SHAFT - W/ VALVES
- CARRIER - FRONT / REAR
- CARRIER - FRONT / REAR (CANADA)
- COOLING DUCTS
- COOLING FAN
- COVER - RECOIL STARTER
- CRANK BALANCER
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR
- DRIVE SHAFT - FRONT
- DRIVESHAFT - REAR
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- ELECTRICAL - WIRING HARNESS (CANADA)
- FENDER - FRONT
- FENDER - FRONT (CANADA)
- FENDER - REAR
- FENDER - REAR (CANADA)
- • FOOTREST W/ BUMBER
- FRAME
- FUEL PUMP
- FUEL TANK
- GASKET SET
- GEAR SHIFTING
- HANDLEBAR - LEVERS / SWITCHES
- HANDLEBAR W/ CABLES
- HEADLAMP
- HEADLAMP (CANADA)
- HEADLIGHT HOUSING - FRONT
- LABELS
- LABELS (CANADA)
- MADGUARD
- MAGNETO
- MUFFLER
- OIL COOLER
- OIL PUMP
- OPTIONAL
- SEAT
- SHIFT LEVER
- SPEEDOMETER
- SPEEDOMETER (CANADA)
- STARTER CLUTCH
- STARTING MOTOR
- STEERING KNUCKLE W/ TIE RODS
- STEERING SHAFT
- SUSPENSION - FRONT ARM W/ SHOCK
- SUSPENSION - REAR SWING ARM
- TAILLIGHT ASSY.
- TAILLIGHT ASSY. (CANADA)
- THROTTLE BODY
- TRANSMISSION (1)
- TRANSMISSION (2)
- WHEEL - FRONT
- WHEEL - LEFT REAR
