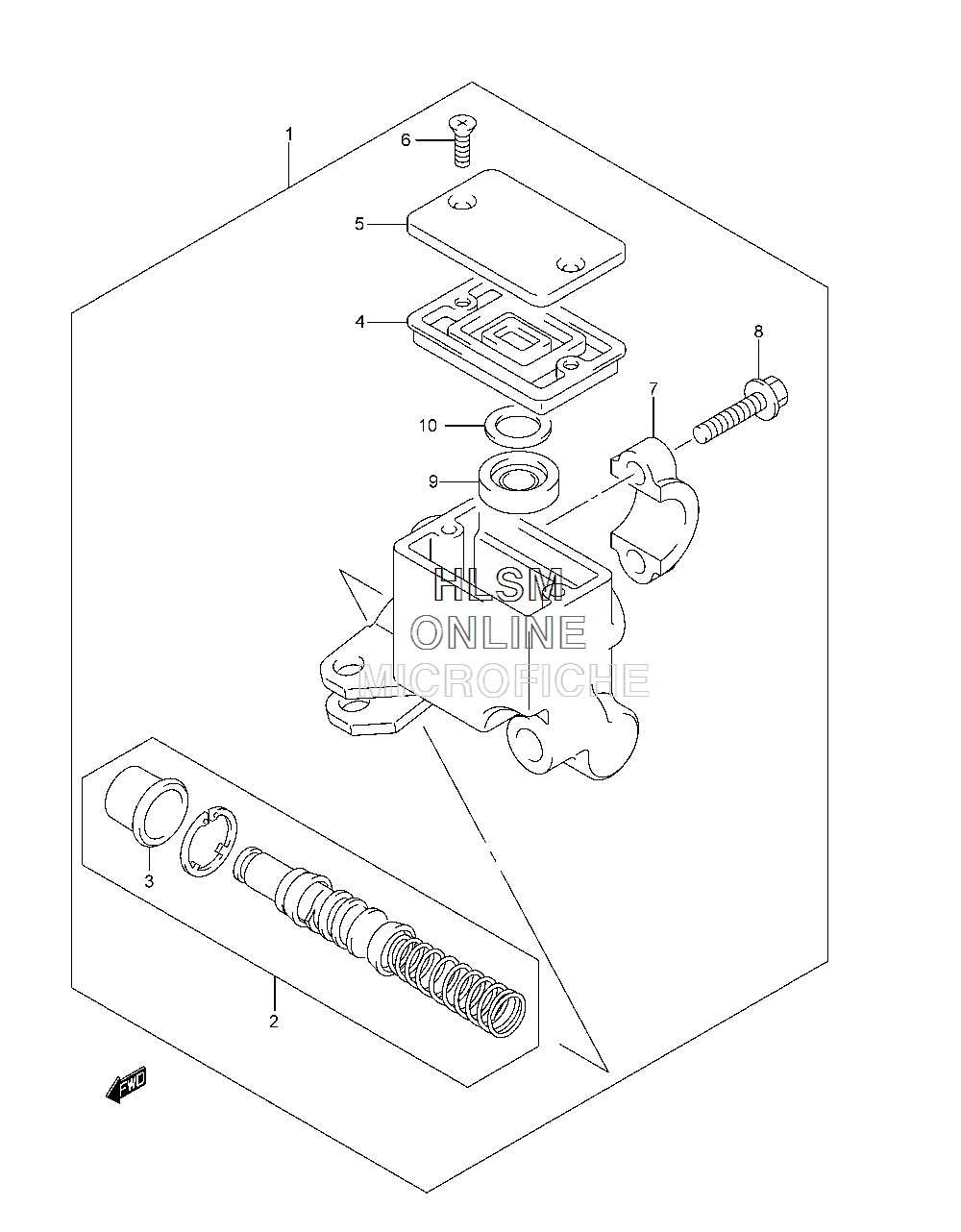

BRAKE - FRONT MASTER CYLINDER для Suzuki LT-A400F KingQuad 400ASi (STANDARD COLORS) - 2013 года выпуска`
-
№АртикулНазвание
-
159600-12D10 CYLINDER ASSY, FRONT MASTERCYLINDER ASSY, FRONT MASTER
-
259600-45850 ...PISTON & CUP SET...PISTON & CUP SET
-
359666-44300 ......BOOT......BOOT
-
459667-44B00 ...DIAPHRAGM...DIAPHRAGM
-
569669-24A01 ...CAP...CAP
-
669689-49300 ...SCREW, CAP...SCREW, CAP
-
759671-36500 ...HOLDER...HOLDER
-
859675-02FA0 ...BOLT...BOLT
-
959748-15400 ...SEPARATOR...SEPARATOR
-
1059749-15400 ...PLATE...PLATE
