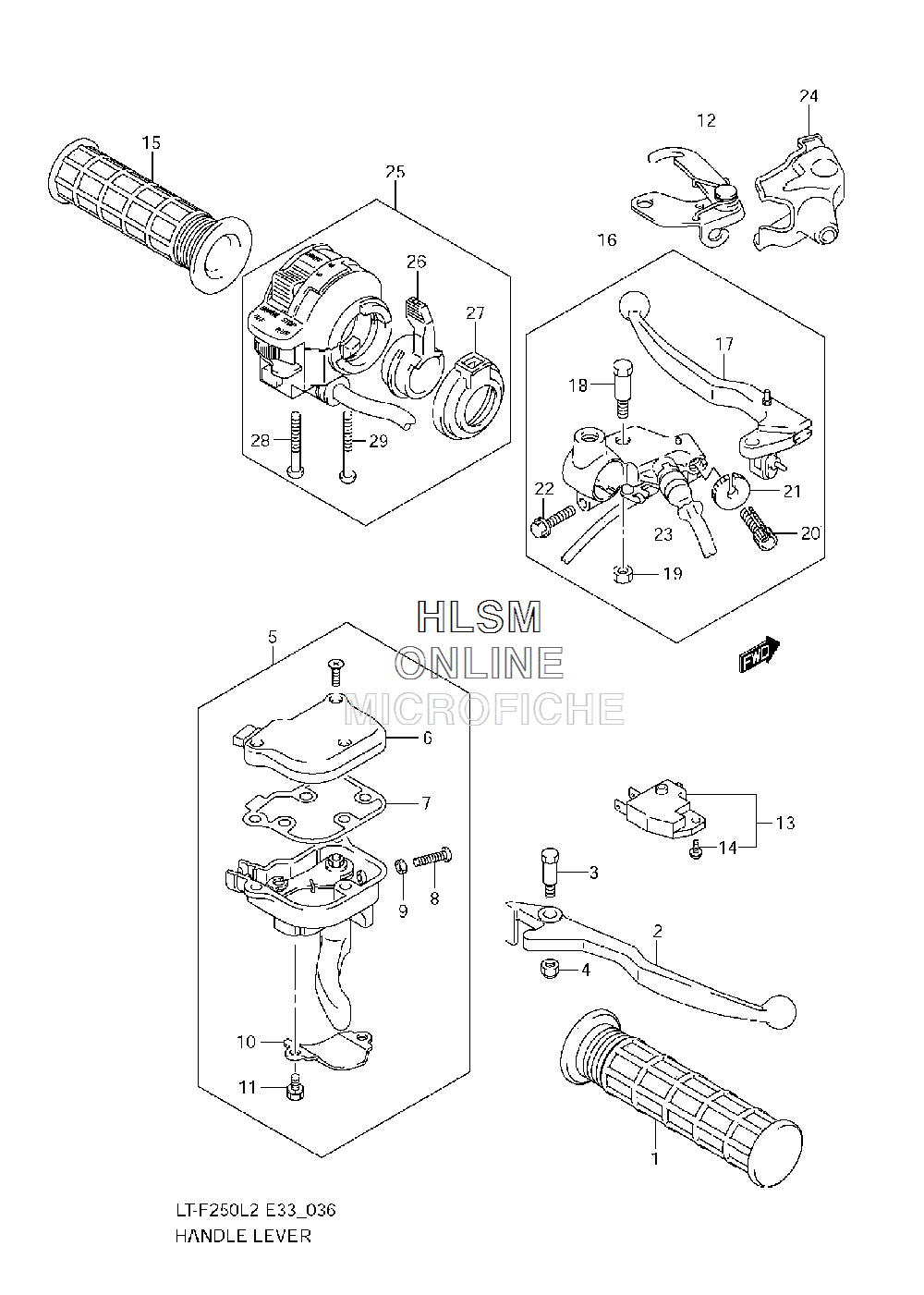

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-F250 Ozark 250 - 2012 года выпуска`
-
№АртикулНазвание
-
157211-21G10 GRIPGRIP
-
257421-39D20 LEVER, BRAKELEVER, BRAKE
-
357431-04F00 BOLTBOLT
-
457433-09F00 NUTNUT
-
557100-27H01 CASE ASSY, THROTTLE (INCL 6-11)CASE ASSY, THROTTLE (INCL 6-11)
-
657121-27H00 CAPCAP
-
757157-27H00 GASKETGASKET
-
802112-0520B SCREWSCREW
-
908310-0005B NUTNUT
-
1057126-07G00 HOLDERHOLDER
-
1157127-07G00 BOLTBOLT
-
1257790-38FA0 STOPPER, BRAKE LEVERSTOPPER, BRAKE LEVER
-
1357460-17C11 SWITCH ASSY, STOP (INCL 14)SWITCH ASSY, STOP (INCL 14)
-
1457465-17C00 SCREWSCREW
-
1557211-21G10 GRIPGRIP
-
1657500-38FC0 LEVER ASSY, REAR BRAKE (INCL 17-23)LEVER ASSY, REAR BRAKE (INCL 17-23)
-
1757620-21821 LEVER, BRAKELEVER, BRAKE
-
1857431-09F00 BOLT, PIVOTBOLT, PIVOT
-
1908319-2106B NUTNUT
-
2057441-08C00 ADJUSTER, CABLEADJUSTER, CABLE
-
2157442-08C00 LOCK NUTLOCK NUT
-
2201547-0620B BOLTBOLT
-
2357560-38FA1 SWITCH, STOPSWITCH, STOP
-
2457541-38FA0 COVER, BRAKECOVER, BRAKE
-
2537400-27H00 SWITCH ASSY, LEFT HAND (INCL 26-29)SWITCH ASSY, LEFT HAND (INCL 26-29)
-
2637571-19B01 LEVER, CHOKELEVER, CHOKE
-
2737576-19B01 COVER, CHOKECOVER, CHOKE
-
2802112-05407 SCREWSCREW
-
2902112-05457 SCREWSCREW
