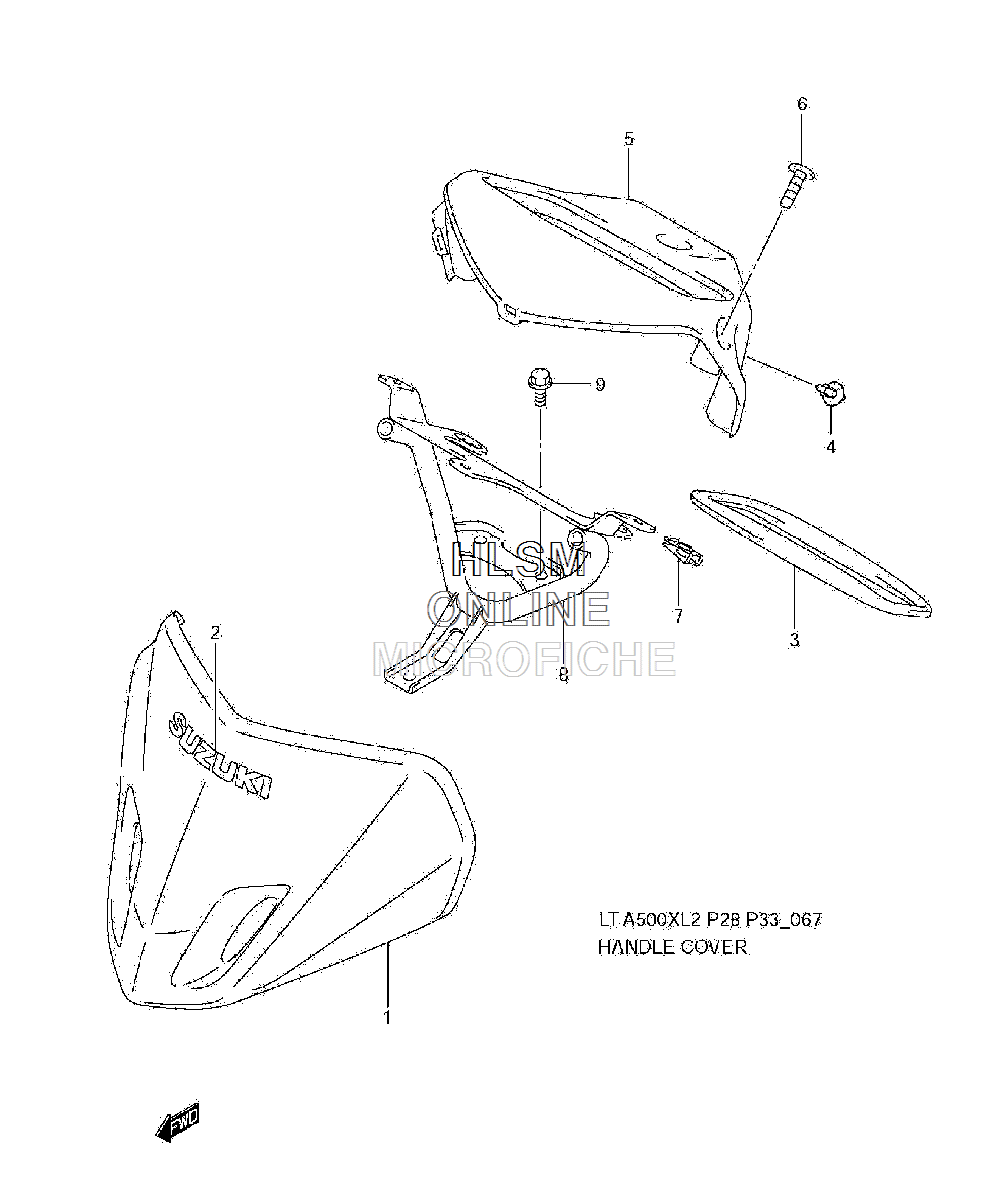

HANDLE COVER (CANADA) для Suzuki LT-A500X KingQuad 500AXi 4x4 Auto - 2012 года выпуска`
-
№АртикулНазвание
-
156311-11H01-YT9 COVER, FRONT (RED)COVER, FRONT (RED)
-
156311-11H01-YLG COVER, FRONT (GREEN)COVER, FRONT (GREEN)
-
156311-11H01-YLZ COVER, FRONT (BLACK)COVER, FRONT (BLACK)
-
268171-31GA0-1ZZ EMBLEM, SUZUKI (GRAY)EMBLEM, SUZUKI (GRAY)
-
356317-31G00 MOLDINGMOLDING
-
409409-07333 CLIPCLIP
-
556321-11H00-291 COVER, HANDLE REAR (BLACK)COVER, HANDLE REAR (BLACK)
-
603141-0525A SCREWSCREW
-
709148-05038 NUTNUT
-
856160-11H00 BRACE, COVERBRACE, COVER
-
901550-0812A BOLTBOLT
