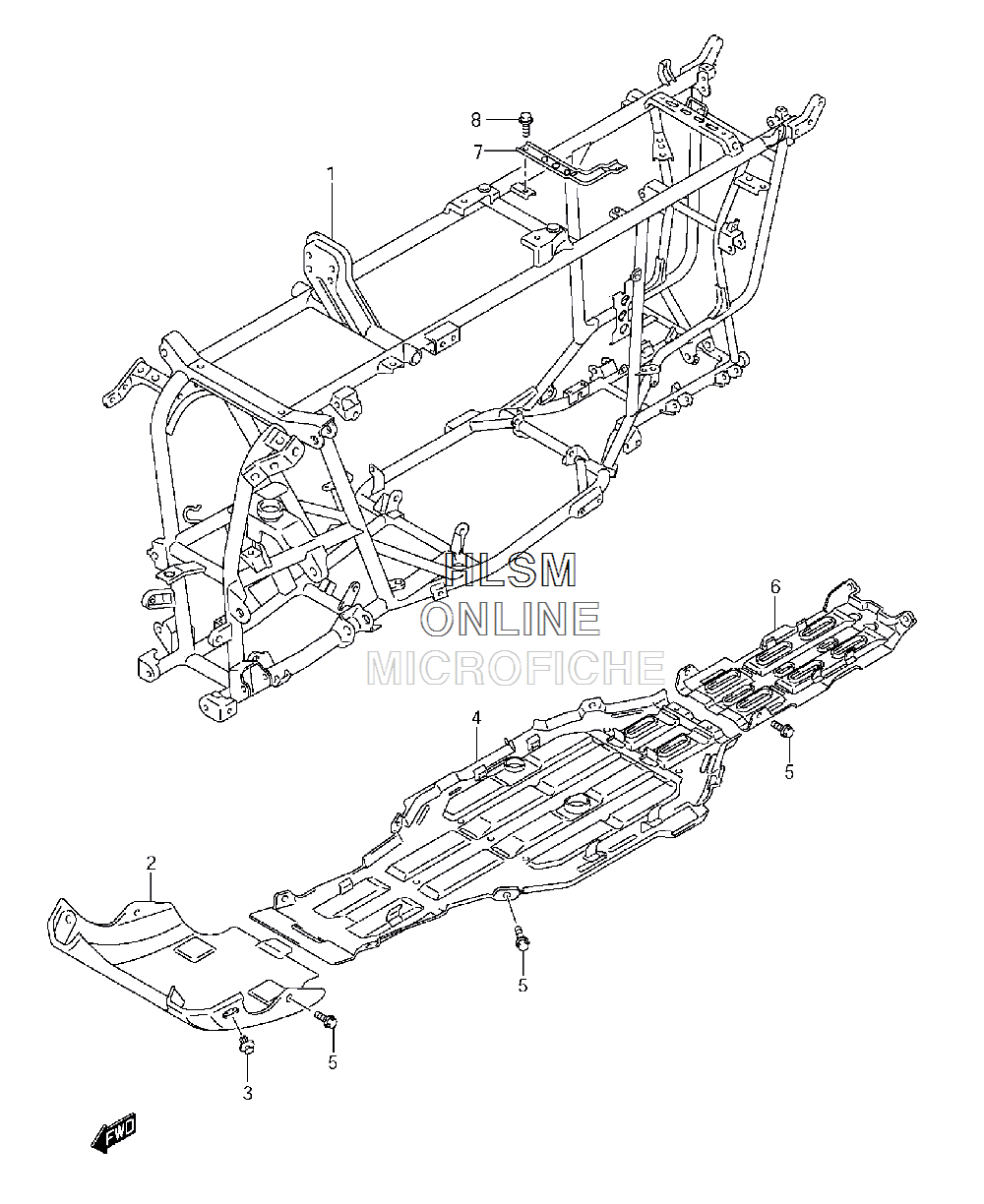

FRAME для Suzuki LT-A500XZ KingQuad 500AXi (CAMO) - 2011 года выпуска`
-
№АртикулНазвание
-
141100-31GA3-019 FRAME (BLACK)FRAME (BLACK)
-
242521-31G00-291 PROTECTOR, FRONT (BLACK)PROTECTOR, FRONT (BLACK)
-
309409-08335 CLIPCLIP
-
442511-31G02 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
509111-06085 SCREW (6X12)SCREW (6X12)
-
642531-31G01 PROTECTOR, REARPROTECTOR, REAR
-
741561-31G00 PLATE, BATTERYPLATE, BATTERY
-
801550-0616A BOLTBOLT
