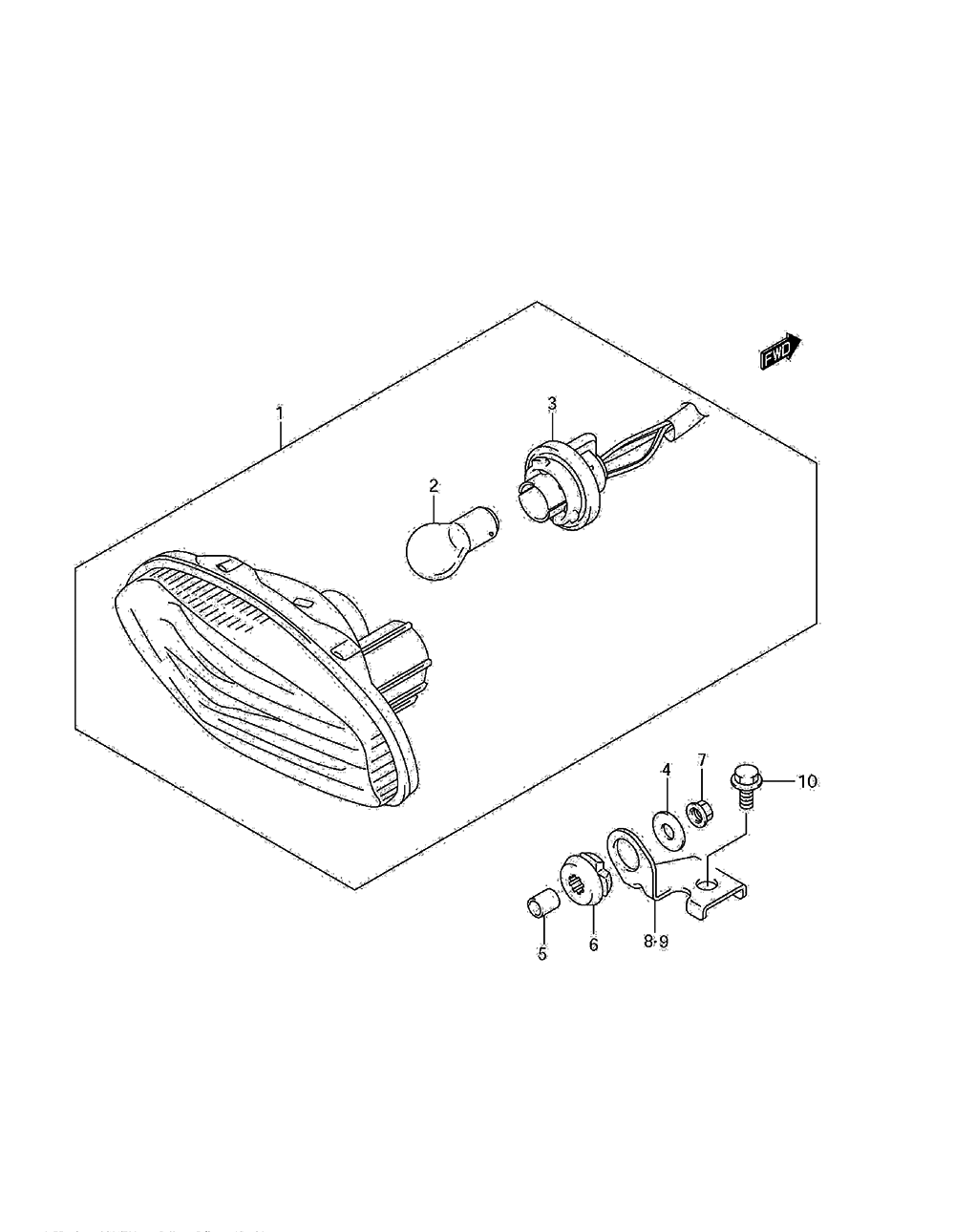

REAR COMBINATION LAMP (LT-A500XP L1 E33) для Suzuki LT-A500XP KINGQUAD 500AXi POWER STEERING [L1 E33] - 2011 года выпуска
-
№АртикулНазвание
-
135710-31G00 LAMP ASSY, REAR COMBLAMP ASSY, REAR COMB
-
209471-12128 BULB (12V,21/5W)BULB (12V,21/5W)
-
335718-03G30 SOCKET AND CORDSOCKET AND CORD
-
409160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
509180-06264 SPACER (6.5X9X10.5)SPACER (6.5X9X10.5)
-
609320-09018 CUSHIONCUSHION
-
708316-1006A NUTNUT
-
835726-31G40 BRACKET, REAR COMB LAMP RIGHT HANDBRACKET, REAR COMB LAMP RIGHT HAND
-
935726-31G50 BRACKET, REAR COMB LAMP LEFT HANDBRACKET, REAR COMB LAMP LEFT HAND
-
1001550-0612A BOLTBOLT
