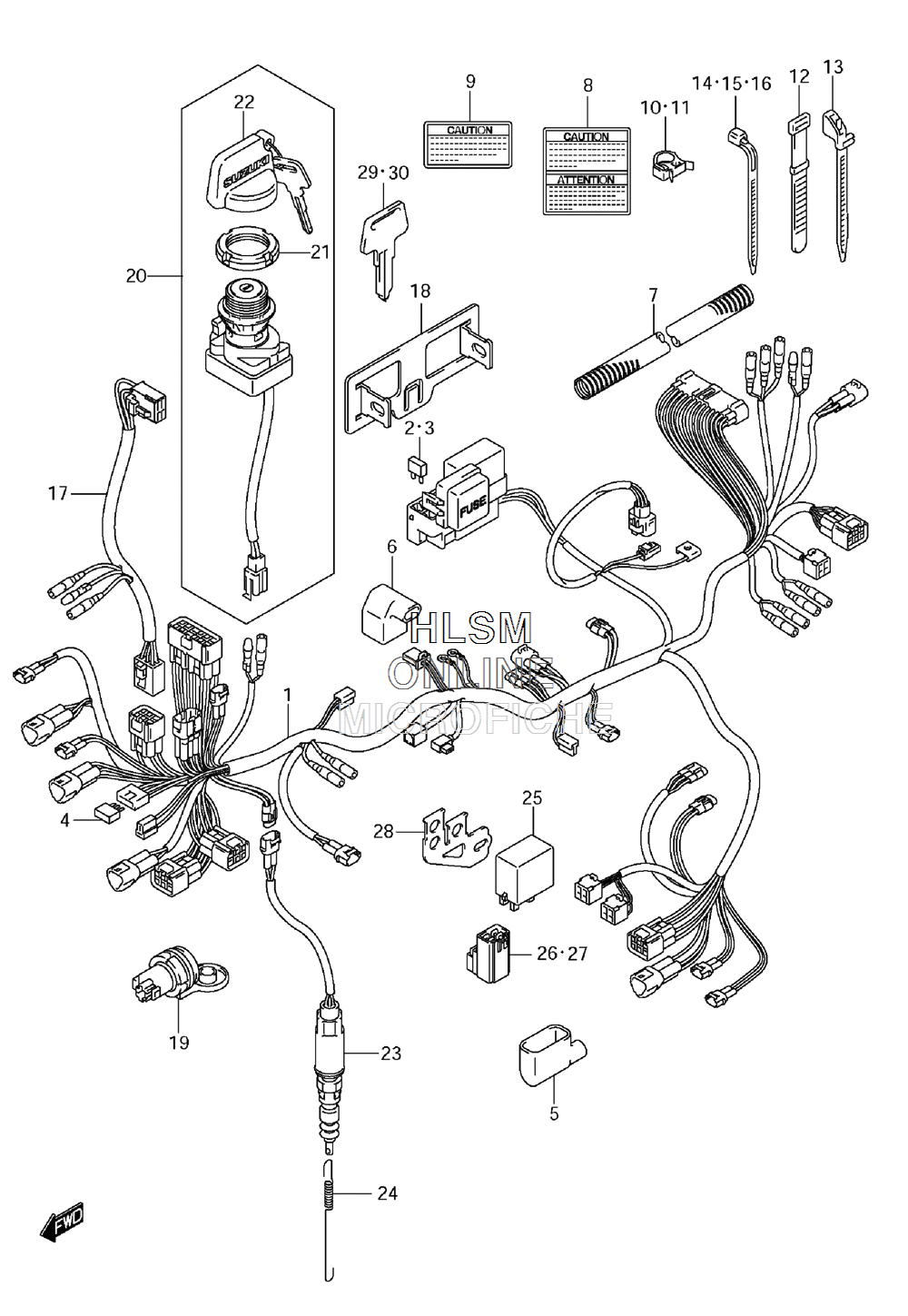

ELECTRICAL - WIRING HARNESS для Suzuki LT-A400FU KingQuad - 2010 года выпуска`
-
№АртикулНазвание
-
136610-27HE0 HARNESS, WIRINGHARNESS, WIRING
-
209481-10501 FUSE (10A)FUSE (10A)
-
309481-15501 FUSE (15A)FUSE (15A)
-
436611-38A00 DIODEDIODE
-
536618-25H00 BOOT, ECU COUPLERBOOT, ECU COUPLER
-
636618-27H00 BOOT, CONNECTORBOOT, CONNECTOR
-
736619-27H00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
838852-03G10 LABEL, CAUTION MAX AMP (CANADA)LABEL, CAUTION MAX AMP (CANADA)
-
938852-09F30 LABEL, CAUTION MAX AMPLABEL, CAUTION MAX AMP
-
1009403-20403 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1109403-30403 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1209407-12402 CLAMP (L:120)CLAMP (L:120)
-
1309407-12407 CLAMP (L:116)CLAMP (L:116)
-
1409407-14403 CLAMP (L:125)CLAMP (L:125)
-
1509407-18402 CLAMP (L:165)CLAMP (L:165)
-
1609407-25401 CLAMP (L:235)CLAMP (L:235)
-
1736855-27H00 WIRE, FRONT BRAKE SWWIRE, FRONT BRAKE SW
-
1836744-38F00 BRACKET, FUSE BOXBRACKET, FUSE BOX
-
1938850-03G10 TERMINAL, POWER SOURCETERMINAL, POWER SOURCE
-
2037110-38F00 SWITCH ASSY, IGNITION (INC 21-22)SWITCH ASSY, IGNITION (INC 21-22)
-
2137112-24500 NUTNUT
-
2237142-19B00 MASCOTMASCOT
-
2337740-38F01 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2409443-06016 SPRING, STOP LAMPSPRING, STOP LAMP
-
2538730-09F00 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
2638740-31G10 RELAY ASSY, FAN MOTORRELAY ASSY, FAN MOTOR
-
2738740-31G10 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2838741-27H10 BRACKET, RELAYBRACKET, RELAY
-
2937146-19B00 KEY, BLANK (TYPE:C) (OPT)KEY, BLANK (TYPE:C) (OPT)
-
3037146-19B10 KEY, BLANK (TYPE:D) (OPT)KEY, BLANK (TYPE:D) (OPT)
