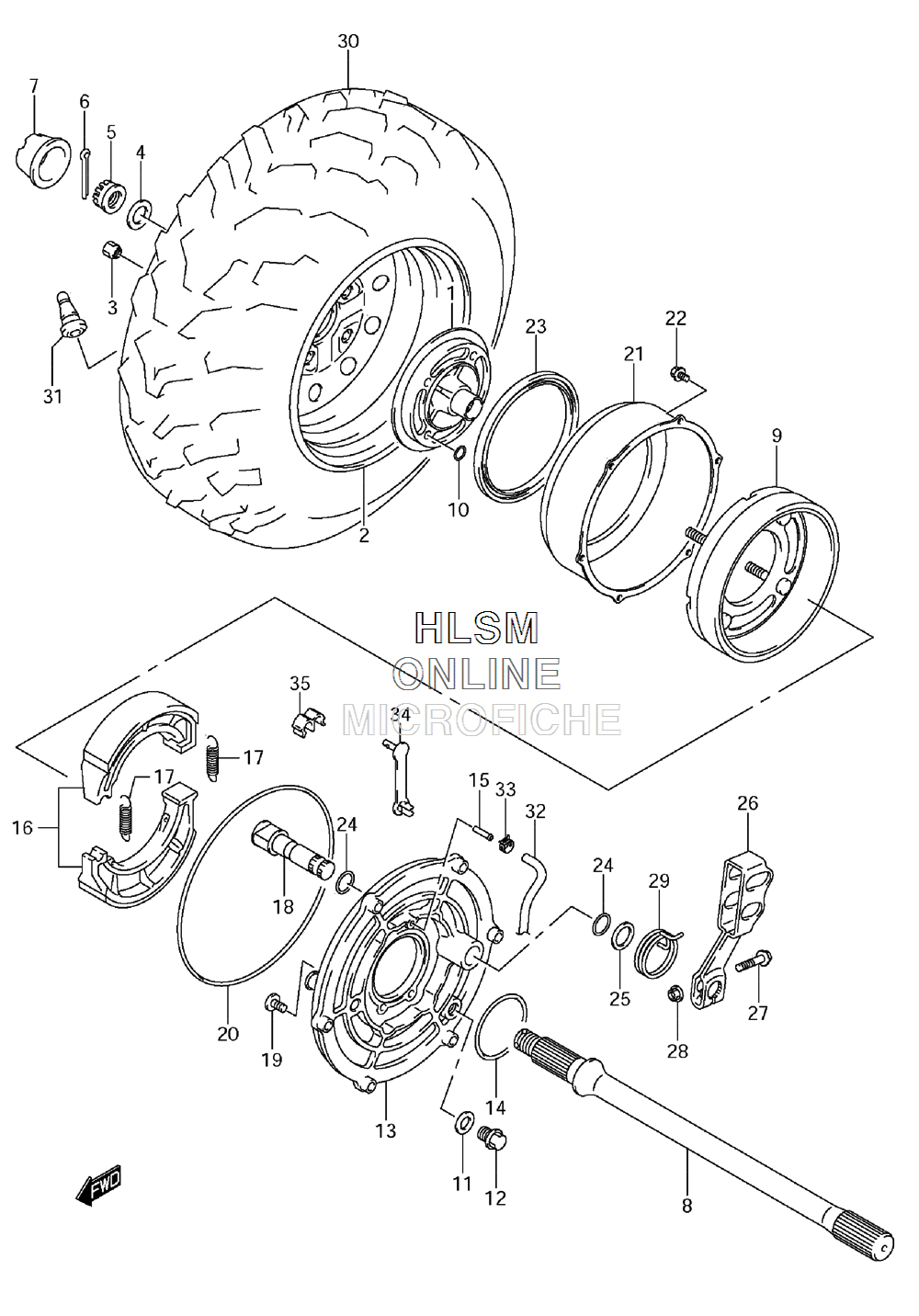

WHEEL - RIGHT REAR W/ AXLE для Suzuki LT-A400F KingQuad 400AS 4x4 Auto - 2010 года выпуска`
-
№АртикулНазвание
-
164111-38F32 HUB, REAR WHEEL RIGHT HANDHUB, REAR WHEEL RIGHT HAND
-
265310-38F40-291 RIM, REAR WHEEL (12X7.5AT) (BLACK)RIM, REAR WHEEL (12X7.5AT) (BLACK)
-
309140-10021 NUTNUT
-
464723-38F00 WASHERWASHER
-
509141-20008 NUT, HUBNUT, HUB
-
604111-4035A COTTER PINCOTTER PIN
-
754725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
864711-38F20 AXLE, REAR RIGHT HANDAXLE, REAR RIGHT HAND
-
964120-38F00 DRUM, BRAKEDRUM, BRAKE
-
1009280-10016 O RING (D:1.9,ID:9.8)O RING (D:1.9,ID:9.8)
-
1109161-10007 WASHER, DRAIN PLUGWASHER, DRAIN PLUG
-
1209247-10008 PLUG, DRAINPLUG, DRAIN
-
1364210-38F10 PANEL, BRAKE ANCHORPANEL, BRAKE ANCHOR
-
1409280-63001 O RING, PANEL (D:1.9,ID:63.1)O RING, PANEL (D:1.9,ID:63.1)
-
1509364-04004 UNION, PANELUNION, PANEL
-
1664400-38840 SHOE SET, BRAKESHOE SET, BRAKE
-
1755420-30000 SPRING, SHOESPRING, SHOE
-
1864440-09F00 CAM, REAR BRAKECAM, REAR BRAKE
-
1909106-08161 BOLT, PANEL (8X18)BOLT, PANEL (8X18)
-
2009280-00038 O RING, PANEL (D:3.7,ID:186)O RING, PANEL (D:3.7,ID:186)
-
2164123-38F00 COVER, REAR BRAKECOVER, REAR BRAKE
-
2201547-0612A BOLTBOLT
-
2364124-38F00 DUST SEAL, DRUM COVERDUST SEAL, DRUM COVER
-
2464443-18A00 O RING, CAM (15.9X19.7X2)O RING, CAM (15.9X19.7X2)
-
2509160-16033 WASHERWASHER
-
2664451-09F00 LEVER, BRAKE CAMLEVER, BRAKE CAM
-
2701550-0635A BOLTBOLT
-
2808316-1006A NUTNUT
-
2964484-38F00 SPRING, CAM LEVERSPRING, CAM LEVER
-
3065110-38FC0 TIRE, REAR (AT25X10-12)TIRE, REAR (AT25X10-12)
-
3143130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
3264275-27H00 HOSE, BREATHERHOSE, BREATHER
-
3309401-06405 CLIP, HOSECLIP, HOSE
-
3409407-03401 CLAMPCLAMP
-
3509408-00200 CLIP, BREATHER HOSE AND CABLECLIP, BREATHER HOSE AND CABLE
