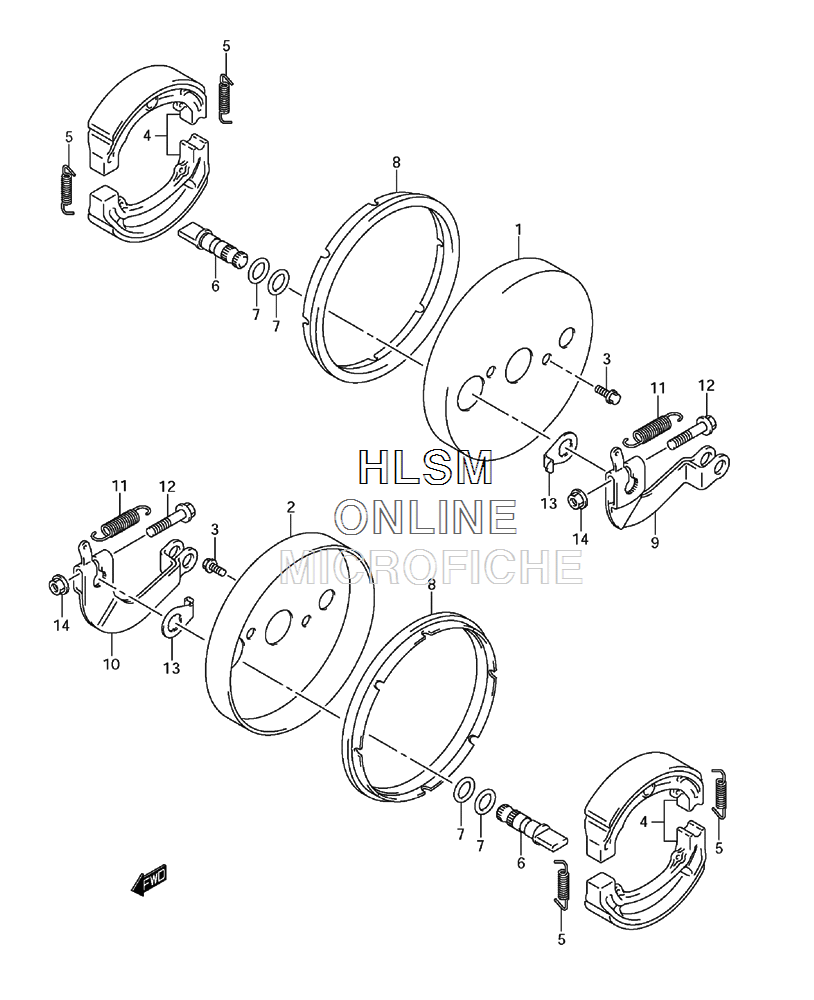

BRAKE - FRONT для Suzuki LT-Z90 QuadSport Z90 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    54511-08H00 PLATE, BRAKE ANCHOR RIGHT HAND
    PLATE, BRAKE ANCHOR RIGHT HAND
  • 2
    54811-08H00 PLATE, BRAKE ANCHOR LEFT HAND
    PLATE, BRAKE ANCHOR LEFT HAND
  • 3
    01547-0610B BOLT, BRAKE ANCHOR PANEL
    BOLT, BRAKE ANCHOR PANEL
  • 4
    54401-43840 SHOE SET, FRONT BRAKE
    SHOE SET, FRONT BRAKE
  • 5
    09443-07044 SPRING, BRAKE SHOE
    SPRING, BRAKE SHOE
  • 6
    54441-08H00 CAM, FRONT BRAKE
    CAM, FRONT BRAKE
  • 7
    09280-12012 O RING, (ID:11.8,D:2.4)
    O RING, (ID:11.8,D:2.4)
  • 8
    54124-08H00 DUST SEAL
    DUST SEAL
  • 9
    54450-08H00 LEVER, BRAKE CAM, RIGHT HAND
    LEVER, BRAKE CAM, RIGHT HAND
  • 10
    54460-08H00 LEVER, BRAKE CAM, LEFT HAND
    LEVER, BRAKE CAM, LEFT HAND
  • 11
    09443-10044 SPRING, BRAKE CAM LEVER
    SPRING, BRAKE CAM LEVER
  • 12
    09103-06135 BOLT, CAM LEVER (5X27)
    BOLT, CAM LEVER (5X27)
  • 13
    54492-08H00 PLATE, LINING INDICATOR
    PLATE, LINING INDICATOR
  • 14
    08316-1006B NUT, CAM LEVER
    NUT, CAM LEVER
