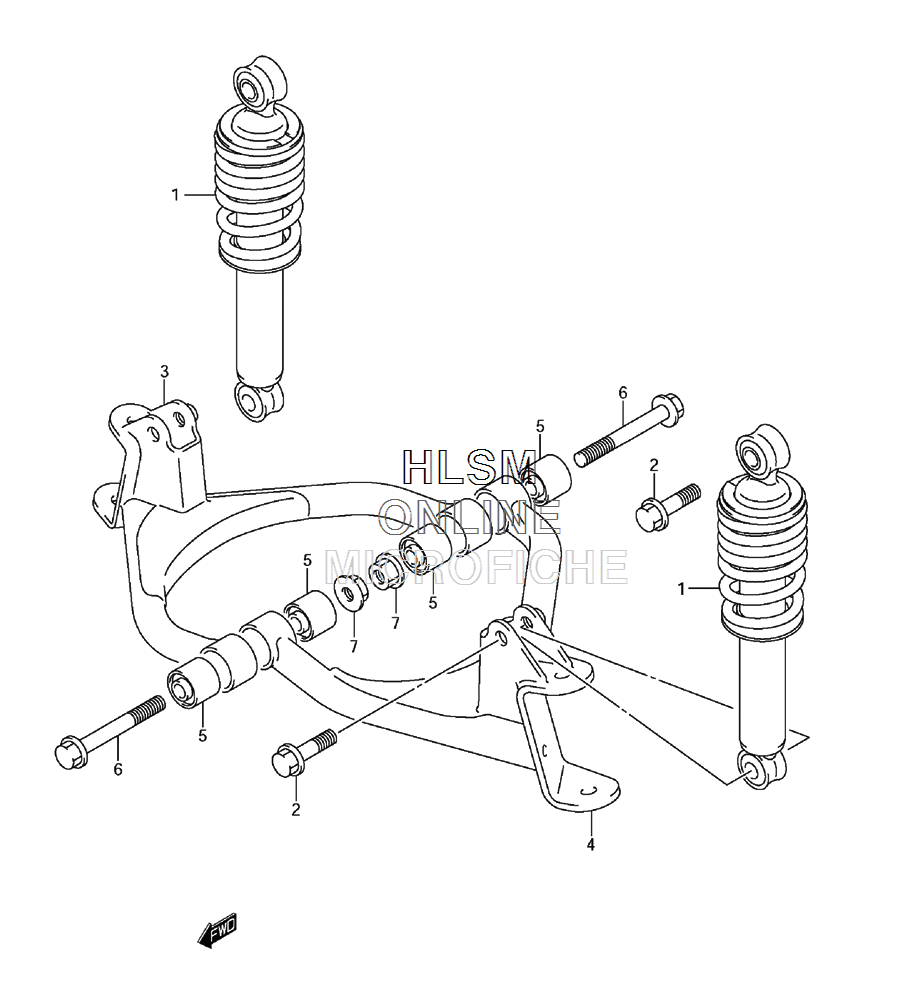

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-Z50 QuadSport Z50 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    52100-43G10-YKS ABSORBER ASSY, FRONT (RED) (FOR YU1)
    ABSORBER ASSY, FRONT (RED) (FOR YU1)
  • 1
    52100-43G10-28W ABSORBER ASSY, FRONT (WHITE) (FOR 30H)
    ABSORBER ASSY, FRONT (WHITE) (FOR 30H)
  • 2
    09103-10019 BOLT, ABSORBER (10X37)
    BOLT, ABSORBER (10X37)
  • 3
    52410-43F00-019 ARM, SUSPENSION RIGHT HAND (BLACK)
    ARM, SUSPENSION RIGHT HAND (BLACK)
  • 4
    52420-43F00-019 ARM, SUSPENSION LEFT HAND (BLACK)
    ARM, SUSPENSION LEFT HAND (BLACK)
  • 5
    09319-10049 BUSH, ARM (10X28.1X28)
    BUSH, ARM (10X28.1X28)
  • 6
    09103-10173 BOLT, SUSPENSION ARM (10X80)
    BOLT, SUSPENSION ARM (10X80)
  • 7
    08316-2010B NUT, SUSPENSION ARM
    NUT, SUSPENSION ARM
