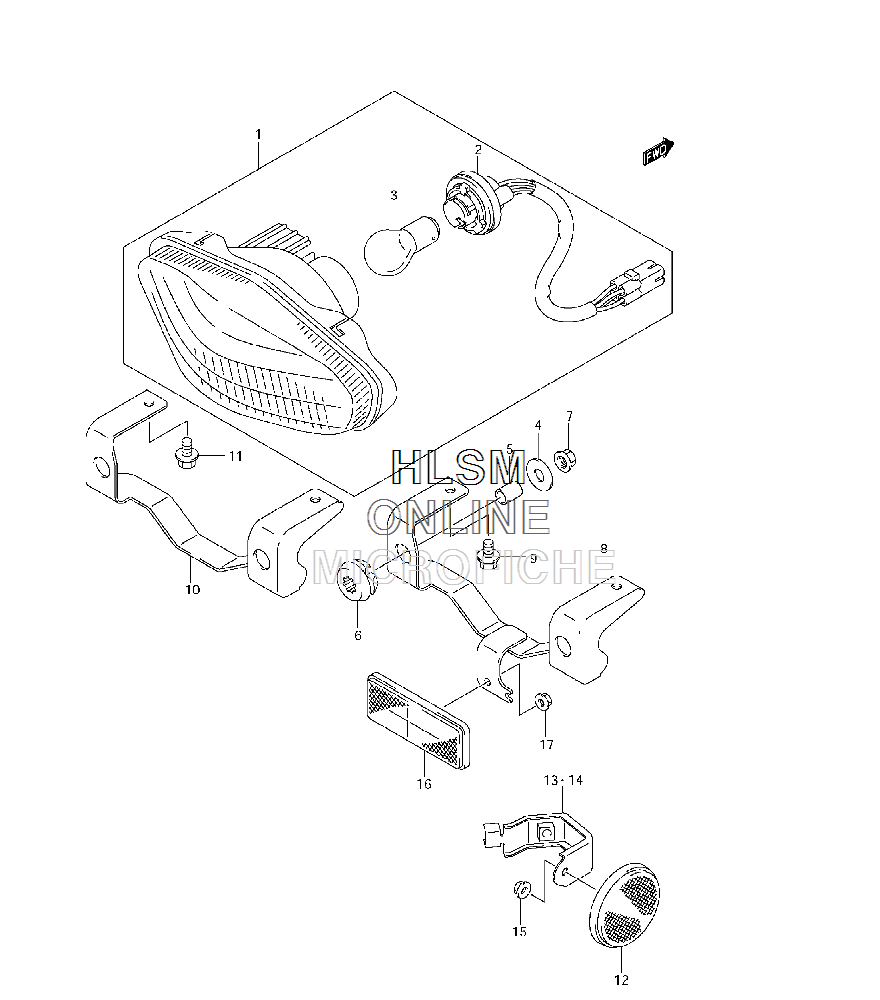

TAILLIGHT ASSY. для Suzuki LT-Z400Z QuadSport Z400 Limited - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    35710-31G00 LAMP ASSY, REAR COMB (INCL. 2-3)
    LAMP ASSY, REAR COMB (INCL. 2-3)
  • 2
    35718-03G30 SOCKET AND CORD ASSY
    SOCKET AND CORD ASSY
  • 3
    09471-12128 BULB (12V21/5W)
    BULB (12V21/5W)
  • 4
    09160-06077 WASHER, RR COMB (6.5X20X1.2)
    WASHER, RR COMB (6.5X20X1.2)
  • 5
    09180-06264 SPACER, RR COMB (6.5X9X10.5)
    SPACER, RR COMB (6.5X9X10.5)
  • 6
    09320-09018 CUSHION, RR COMB
    CUSHION, RR COMB
  • 7
    08316-1006B NUT, RR COMB
    NUT, RR COMB
  • 8
    35720-33H10 BRACKET, RR COMB LAMP (CANADA ONLY)
    BRACKET, RR COMB LAMP (CANADA ONLY)
  • 9
    01550-0612B BOLT, RR COMB BKT (CANADA ONLY)
    BOLT, RR COMB BKT (CANADA ONLY)
  • 10
    35726-33H00 BRACKET, RR COMB LAMP (CALIF. ONLY)
    BRACKET, RR COMB LAMP (CALIF. ONLY)
  • 11
    01550-0612B BOLT, RR COMB BKT (CALIF. ONLY)
    BOLT, RR COMB BKT (CALIF. ONLY)
  • 12
    35970-14A20 REFLECTOR ASSY, REAR SIDE (CANADA ONLY)
    REFLECTOR ASSY, REAR SIDE (CANADA ONLY)
  • 13
    35975-33H00 BRACKET, RR SIDE RR, R (CANADA ONLY)
    BRACKET, RR SIDE RR, R (CANADA ONLY)
  • 14
    35976-33H00 BRACKET, RR SIDE RR, L (CANADA ONLY)
    BRACKET, RR SIDE RR, L (CANADA ONLY)
  • 15
    08316-1005B NUT, RR SIDE RR (CANADA ONLY)
    NUT, RR SIDE RR (CANADA ONLY)
  • 16
    35970-07F01 REFLECTOR ASSY, REAR (CANADA ONLY)
    REFLECTOR ASSY, REAR (CANADA ONLY)
  • 17
    08316-1005B NUT, REAR RR (CANADA ONLY)
    NUT, REAR RR (CANADA ONLY)
