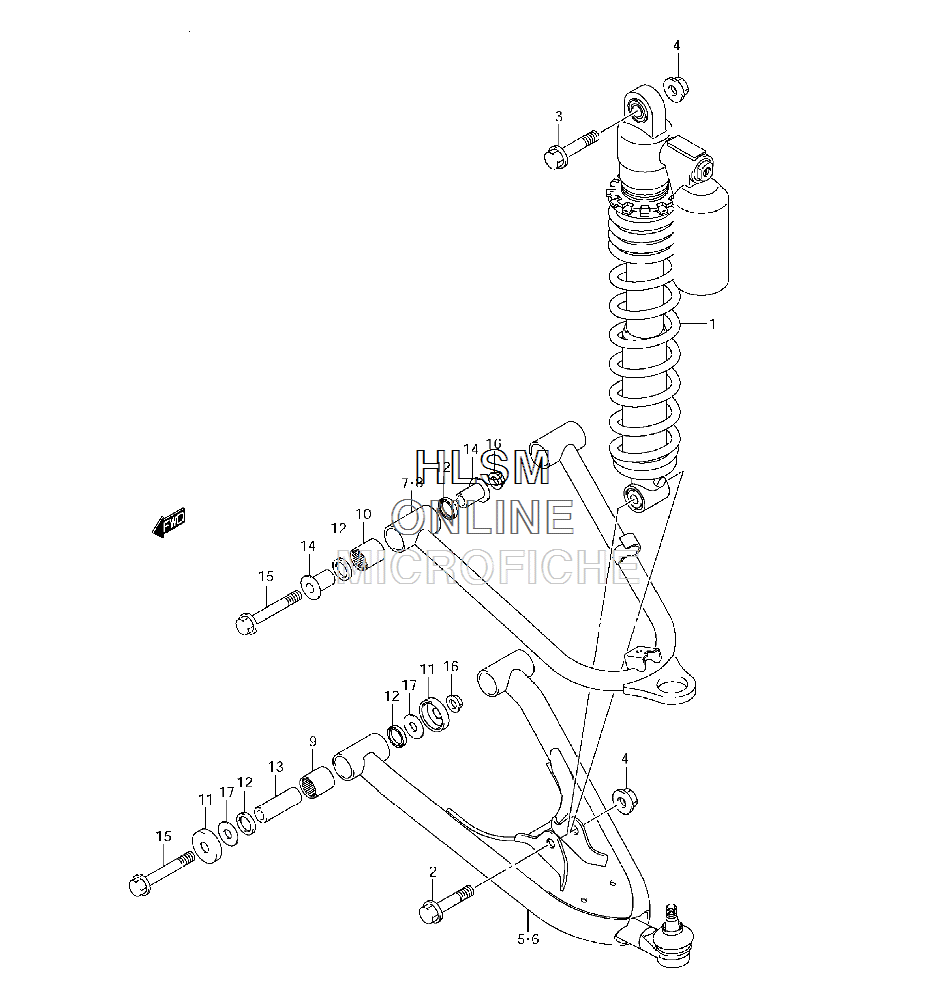

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-Z400 QuadSport Z400 - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    52100-33H00-YKS ABSORBER ASSY, FRONT SHOCK (RED)
    ABSORBER ASSY, FRONT SHOCK (RED)
  • 1
    52100-33H00-28W ABSORBER ASSY, FRONT SHOCK (WHITE)
    ABSORBER ASSY, FRONT SHOCK (WHITE)
  • 1
    52100-33H10-YKS ABSORBER ASSY, FRONT SHOCK (RED) (CANADA ONLY)
    ABSORBER ASSY, FRONT SHOCK (RED) (CANADA ONLY)
  • 1
    52100-33H10-28W ABSORBER ASSY, FRONT SHOCK (WHITE) (CANADA ONLY)
    ABSORBER ASSY, FRONT SHOCK (WHITE) (CANADA ONLY)
  • 2
    09103-10352 BOLT, LOWER (10X48)
    BOLT, LOWER (10X48)
  • 3
    09103-10351 BOLT, UPPER (10X38)
    BOLT, UPPER (10X38)
  • 4
    09159-10115 NUT
    NUT
  • 5
    52410-33H00-YBA ARM ASSY, SUSPENSION LOWER RIGHT HAND (BLUE)
    ARM ASSY, SUSPENSION LOWER RIGHT HAND (BLUE)
  • 6
    52420-33H00-YBA ARM ASSY, SUSPENSION LOWER LEFT HAND (BLUE)
    ARM ASSY, SUSPENSION LOWER LEFT HAND (BLUE)
  • 7
    52430-33H00-YBA ARM ASSY, SUSPENSION UPPER RIGHT HAND (BLUE)
    ARM ASSY, SUSPENSION UPPER RIGHT HAND (BLUE)
  • 8
    52440-33H00-YBA ARM ASSY, SUSPENSION UPPER LEFT HAND (BLUE)
    ARM ASSY, SUSPENSION UPPER LEFT HAND (BLUE)
  • 9
    09263-17034 BEARING, SUSPENSION ARM PIVOT
    BEARING, SUSPENSION ARM PIVOT
  • 10
    09263-17048 BEARING, UPPER
    BEARING, UPPER
  • 11
    52454-43B00 SEAL, SUSPENSION ARM PIVOT DUST
    SEAL, SUSPENSION ARM PIVOT DUST
  • 12
    09285-17001 SEAL, PIVOT INNER DUST
    SEAL, PIVOT INNER DUST
  • 13
    52455-43B00 SPACER, LOWER
    SPACER, LOWER
  • 14
    52455-07G00 SPACER, UPPER
    SPACER, UPPER
  • 15
    09103-10033 BOLT
    BOLT
  • 16
    09159-10115 NUT
    NUT
  • 17
    08211-10281 WASHER
    WASHER
