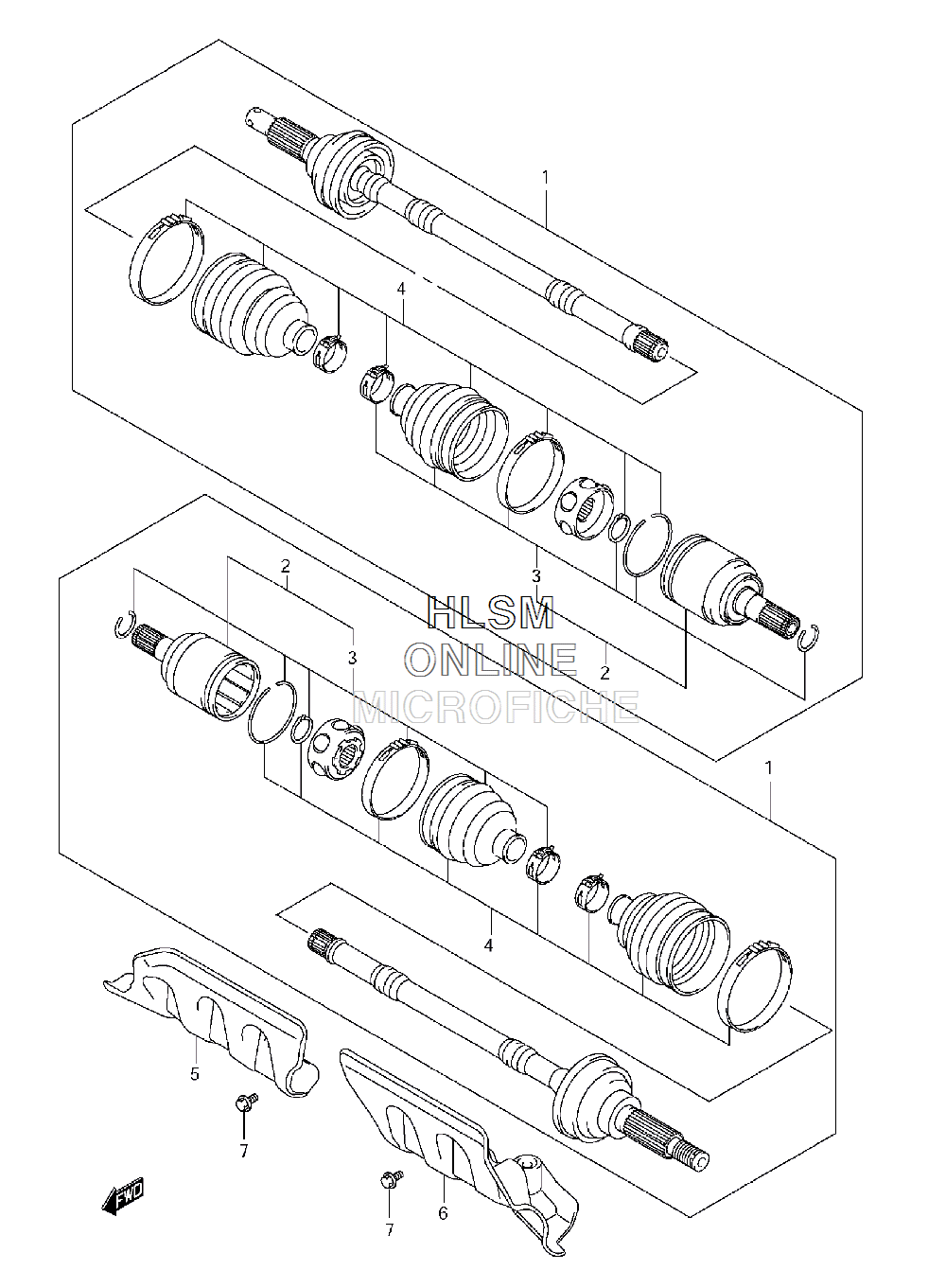

DRIVE SHAFT - FRONT для Suzuki LT-A750XP KingQuad 750AXi Power Steering - 2009 года выпуска
-
№АртикулНазвание
-
154901-31G30 SHAFT ASSY, FRONT DRIVE (INC 2-4)SHAFT ASSY, FRONT DRIVE (INC 2-4)
-
254933-31G20 JOINT SETJOINT SET
-
354931-31G20 BOOT SET, INNERBOOT SET, INNER
-
454930-31G20 BOOT SET, OUTERBOOT SET, OUTER
-
554903-31G00 PROTECTOR, DRIVE SHAFT RIGHT HANDPROTECTOR, DRIVE SHAFT RIGHT HAND
-
654904-31G00 PROTECTOR, DRIVE SHAFT LEFT HANDPROTECTOR, DRIVE SHAFT LEFT HAND
-
709111-06085 BOLTBOLT
Все узлы модели:
- AIR CLEANER
- BATTERY
- BOX - REAR
- BRAKE - FRONT CALIPER
- BRAKE - FRONT HOSE
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR
- BRAKE - REAR PEDAL
- CAM CHAIN
- CAM SHAFT - W/ VALVES
- CARRIER - FRONT / REAR
- COOLING DUCT
- CRANK BALANCER
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- CYLINDER HEAD COVER
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR
- • DRIVE SHAFT - FRONT
- DRIVESHAFT - CENTER TRANSFER
- DRIVESHAFT - REAR
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BUMBER
- FRAME
- FRONT BOX
- FUEL PUMP
- FUEL TANK
- GASKET SET
- GEAR SHIFTING
- GRILLE - FRONT
- HANDLE COVER
- HANDLEBAR - LEVERS / SWITCHES
- HANDLEBAR W/ CABLES
- HEADLAMP
- LABELS
- MAGNETO
- MUDGUARD
- MUFFLER
- OIL PUMP
- OPTIONAL
- RADIATOR
- RADIATOR HOSE
- SEAT
- SHIFT LEVER
- SPEEDOMETER
- STARTER - RECOIL - COVER
- STARTER CLUTCH
- STARTING MOTOR
- STEERING KNUCKLE W/ TIE RODS
- STEERING SHAFT
- SUSPENSION - FRONT ARM
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT ASSY.
- TAILLIGHT ASSY. (CANADA ONLY)
- THROTTLE BODY
- TRANSMISSION (1)
- TRANSMISSION (2)
- WATER PUMP
- WHEEL - FRONT
- WHEEL - LEFT REAR
- WHEEL - RIGHT REAR W/ AXLE
