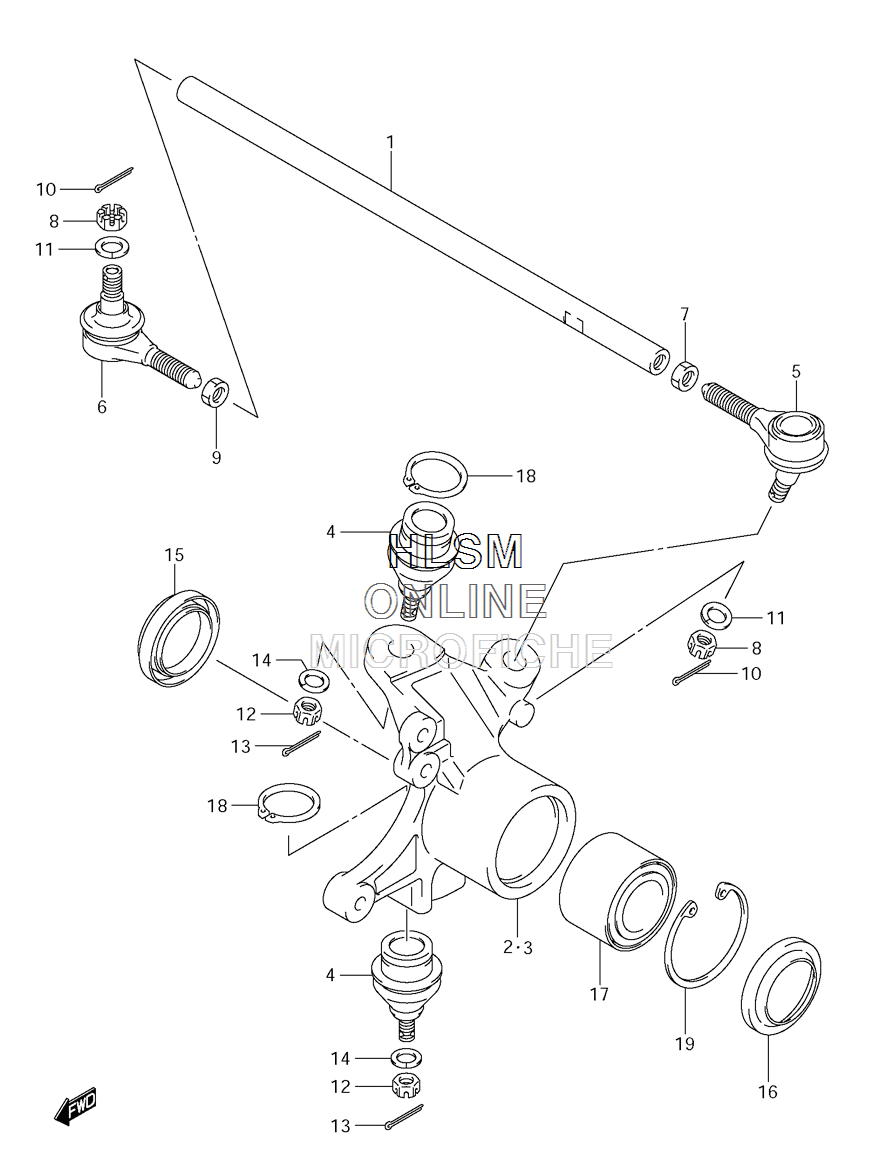

STEERING KNUCKLE W/ TIE RODS для Suzuki LT-A500XPZ KINGQUAD 500AXI (LTD) - 2009 года выпуска

№

Артикул

Название
1

51281-31G40 TIE ROD, STEERING

TIE ROD, STEERING

14 610 ₽
2

51231-31G30 KNUCKLE, STEERING RIGHT HAND

KNUCKLE, STEERING RIGHT HAND

52 110 ₽
3

51241-31G30 KNUCKLE, STEERING LEFT HAND

KNUCKLE, STEERING LEFT HAND

52 110 ₽
4

51210-31G10 END, KNUCKLE STEERING

END, KNUCKLE STEERING

11 930 ₽
5

51260-45G00 ROD, END, RIGHT

ROD, END, RIGHT

10 470 ₽
6

51270-45G00 ROD, END, LEFT

ROD, END, LEFT

10 470 ₽
7

51283-09F00 NUT, TIE ROD (RIGHT HAND THREAD)

NUT, TIE ROD (RIGHT HAND THREAD)

620 ₽
8

08314-4010B NUT, ROD END

NUT, ROD END

440 ₽
9

09140-12035 NUT, TIE ROD (LEFT HAND THREAD)

NUT, TIE ROD (LEFT HAND THREAD)

480 ₽
10

04111-2020A COTTER PIN, ROD END

COTTER PIN, ROD END

220 ₽
11

09160-10082 WASHER, ROD END

WASHER, ROD END

280 ₽
12

08314-4010B NUT, KNUCKLE END

NUT, KNUCKLE END

440 ₽
13

04111-2020A PIN, KNUCKLE END COTTER

PIN, KNUCKLE END COTTER

220 ₽
14

09160-10082 WASHER, KNUCKLE END

WASHER, KNUCKLE END

280 ₽
15

09283-38012 DUST SEAL, INNER (38X55X8)

DUST SEAL, INNER (38X55X8)

2 580 ₽
16

09285-38002 DUST SEAL, OUTER (38X55X6)

DUST SEAL, OUTER (38X55X6)

2 400 ₽
17

51259-31G00 BEARING

BEARING

18 020 ₽
18

08331-3130A CIRCLIP

CIRCLIP

450 ₽
19

08331-4155A CLIP

CLIP

670 ₽
