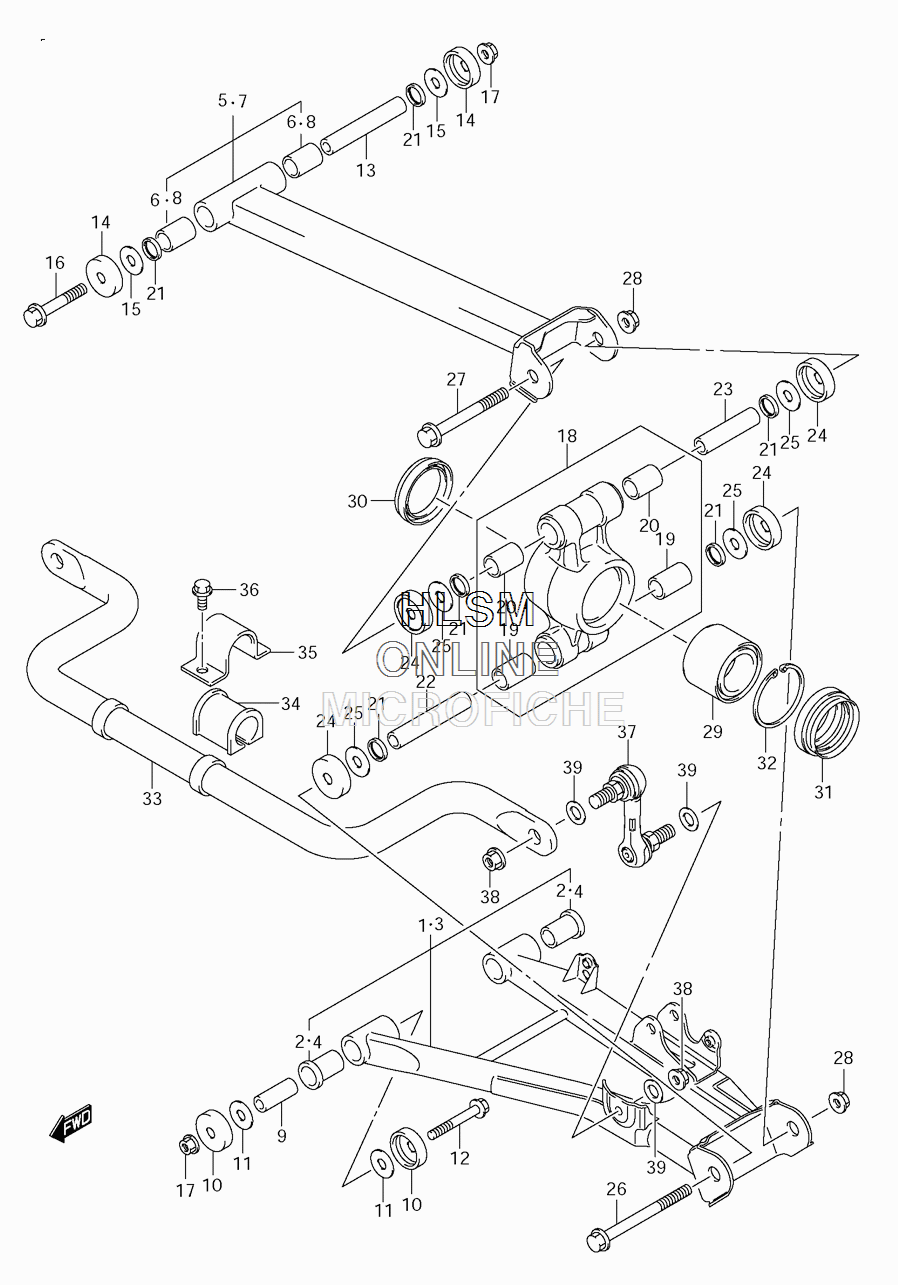

SUSPENSION - REAR ARM для Suzuki LT-A500XP KINGQUAD 500AXi - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    61510-31830 ARM SET, RR SUSPENSION LOWER, RIGHT
    ARM SET, RR SUSPENSION LOWER, RIGHT
  • 2
    51236-31G00 ...BUSH, RR SPNSN ARM LOWER
    ...BUSH, RR SPNSN ARM LOWER
  • 3
    61520-31830 ARM SET, RR SUSPENSION LOWER, LEFT
    ARM SET, RR SUSPENSION LOWER, LEFT
  • 4
    51236-31G00 ...BUSH, RR SPNSN ARM LOWER
    ...BUSH, RR SPNSN ARM LOWER
  • 5
    61530-31830 ARM SET, RR SUSPENSION UPPER, RIGHT
    ARM SET, RR SUSPENSION UPPER, RIGHT
  • 6
    51236-31G00 ...BUSH, RR SPNSN ARM UPPER
    ...BUSH, RR SPNSN ARM UPPER
  • 7
    61540-31830 ARM SET, RR SUSPENSION
    ARM SET, RR SUSPENSION
  • 8
    51236-31G00 ...BUSH, RR SPNSN ARM UPPER
    ...BUSH, RR SPNSN ARM UPPER
  • 9
    61552-31G10 SPACER, RR SPNSN ARM LOWER
    SPACER, RR SPNSN ARM LOWER
  • 10
    51255-31G10 SEAL, RR SPNSN ARM LOWER
    SEAL, RR SPNSN ARM LOWER
  • 11
    08211-10281 WASHER, RR SPNSN ARM LOWER
    WASHER, RR SPNSN ARM LOWER
  • 12
    09103-10392 BOLT, RR SPNSN ARM LOWER
    BOLT, RR SPNSN ARM LOWER
  • 13
    61554-31G10 SPACER, RR SPNSN ARM UPPER
    SPACER, RR SPNSN ARM UPPER
  • 14
    51255-31G00 SEAL, RR SPNSN ARM UPPER
    SEAL, RR SPNSN ARM UPPER
  • 15
    08211-10281 WASHER, RR SPNSN ARM UPPER
    WASHER, RR SPNSN ARM UPPER
  • 16
    09103-10388 BOLT, RR SPNSN ARM UPPER
    BOLT, RR SPNSN ARM UPPER
  • 17
    09159-10115 NUT, RR SPNSN ARM PIVOT
    NUT, RR SPNSN ARM PIVOT
  • 18
    61600-31830 KNUCKLE SET, RR SUSPENSION
    KNUCKLE SET, RR SUSPENSION
  • 19
    51236-31G00 ...BUSH, RR KNUCKLE
    ...BUSH, RR KNUCKLE
  • 20
    61551-31G10 ...BUSH, RR KNUCKLE UPPER
    ...BUSH, RR KNUCKLE UPPER
  • 21
    52454-45G00 SEAL, RR KNUCKLE INNER
    SEAL, RR KNUCKLE INNER
  • 22
    61554-31G10 SPACER, RR KNUCKLE LOWER
    SPACER, RR KNUCKLE LOWER
  • 23
    61553-31G20 SPACER, RR KNUCKLE UPPER
    SPACER, RR KNUCKLE UPPER
  • 24
    51255-18900 SEAL, RR KNUCKLE DUST
    SEAL, RR KNUCKLE DUST
  • 25
    08211-10281 WASHER, RR KNUCKLE
    WASHER, RR KNUCKLE
  • 26
    09103-10388 BOLT, RR KNUCKLE LOWER
    BOLT, RR KNUCKLE LOWER
  • 27
    09103-10387 BOLT, RR KNUCKLE UPPER
    BOLT, RR KNUCKLE UPPER
  • 28
    09159-10115 NUT, RR KNUCKLE
    NUT, RR KNUCKLE
  • 29
    43440-84F00 BEARING, RR HUB
    BEARING, RR HUB
  • 30
    61615-31G00 SEAL, REAR HUB INNER DUST
    SEAL, REAR HUB INNER DUST
  • 31
    61616-31G00 SEAL, REAR HUB OUTER DUST
    SEAL, REAR HUB OUTER DUST
  • 32
    08331-4162A CLIP, HUB BEARING
    CLIP, HUB BEARING
  • 33
    61651-31G20 BAR, RR STABILIZER
    BAR, RR STABILIZER
  • 34
    61652-31G20 BUSH, RR STABILIZER
    BUSH, RR STABILIZER
  • 35
    61650-31G00 PLATE, RR STABILIZER
    PLATE, RR STABILIZER
  • 36
    09103-08283 BOLT, RR STABILIZER PLATE
    BOLT, RR STABILIZER PLATE
  • 37
    61660-31G20 JOINT, RR STABILIZER
    JOINT, RR STABILIZER
  • 38
    09159-10223 NUT, RR STABILIZER JOINT
    NUT, RR STABILIZER JOINT
  • 39
    09160-10039 WASHER, RR STABILIZER
    WASHER, RR STABILIZER
