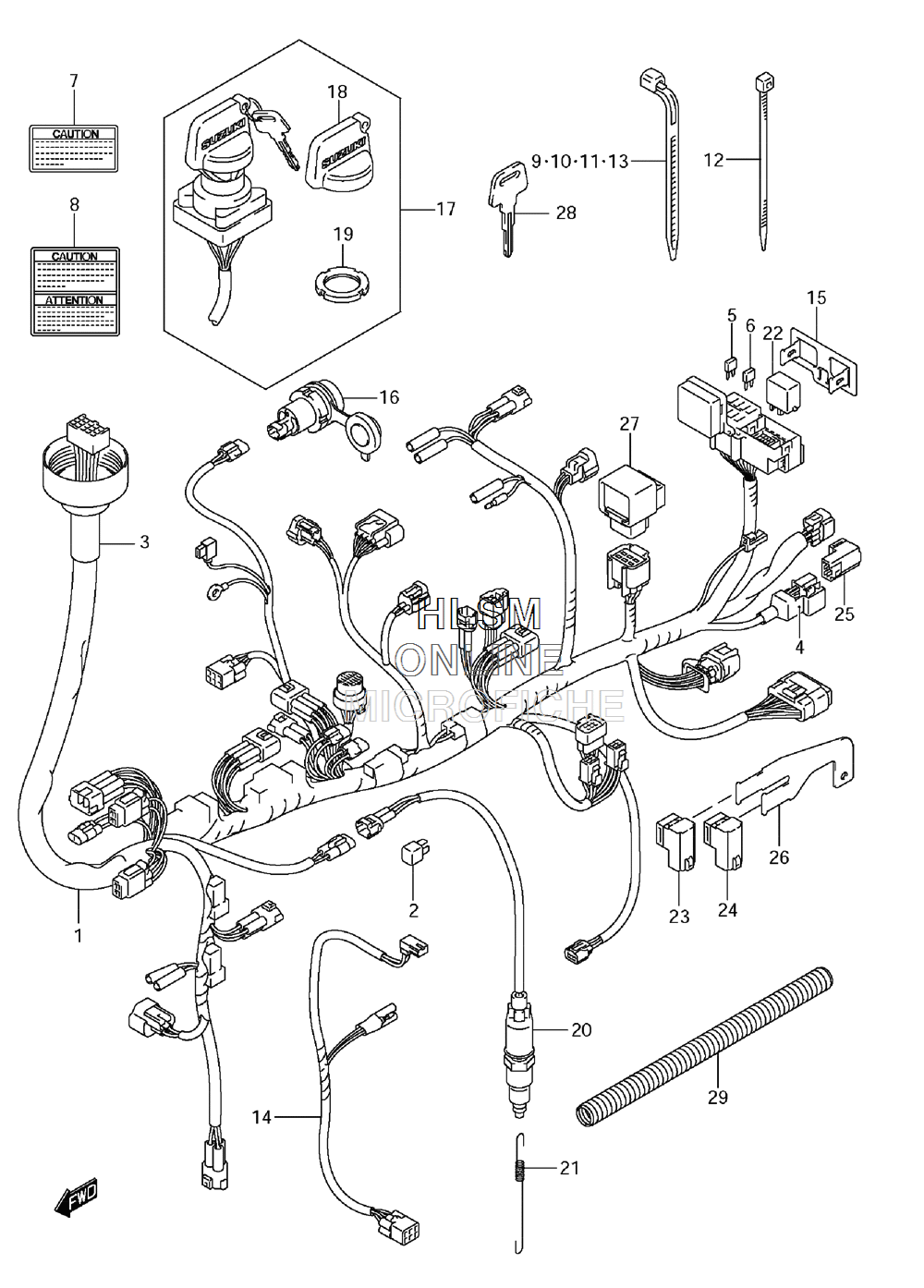

ELECTRICAL - WIRING HARNESS для Suzuki LT-A450XZ 450AXi (LTD) - 2009 года выпуска`
-
№АртикулНазвание
-
136610-11H01 HARNESS, WIRINGHARNESS, WIRING
-
232800-16A00 RECTIFIER ASSYRECTIFIER ASSY
-
336618-31G00 COVERCOVER
-
436618-31G10 BOOTBOOT
-
509481-10501 FUSE (10A)FUSE (10A)
-
609481-15501 FUSE (15A)FUSE (15A)
-
738852-09F30 LABEL, CAUTION MAX AMPLABEL, CAUTION MAX AMP
-
838852-03G10 LABEL, CAUTION MAX AMP (CANADA)LABEL, CAUTION MAX AMP (CANADA)
-
909407-11401 CLAMP (L:95)CLAMP (L:95)
-
1009407-14403 CLAMP (L:125)CLAMP (L:125)
-
1109407-25401 CLAMP (L:235)CLAMP (L:235)
-
1209407-14407 CLAMP (L:145)CLAMP (L:145)
-
1309407-19401 CLAMP (L:190)CLAMP (L:190)
-
1436855-38F10 WIRE, FRONT BRAKE SW LEADWIRE, FRONT BRAKE SW LEAD
-
1536744-31G00 BRACKET, FUSEBRACKET, FUSE
-
1638850-03G10 TERMINAL, POWER SOURCETERMINAL, POWER SOURCE
-
1737110-38F00 SWITCH ASSY, IGNITION (INC 18-19)SWITCH ASSY, IGNITION (INC 18-19)
-
1837142-19B00 MASCOT, KEYMASCOT, KEY
-
1937112-24500 NUTNUT
-
2037740-38F01 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2109443-06080 SPRING, STOP LAMPSPRING, STOP LAMP
-
2238730-09F00 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
2338740-31G01 RELAY ASSY, NEUTRAL STARTRELAY ASSY, NEUTRAL START
-
2438740-31G01 RELAY ASSY, DEF LOCKRELAY ASSY, DEF LOCK
-
2538740-31G01 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2638741-31G20 BRACKET, RELAYBRACKET, RELAY
-
2738750-31G00 RELAY ASSY, DRIVERELAY ASSY, DRIVE
-
2837146-19B00 KEY, BLANK TYPE (C) (OPT)KEY, BLANK TYPE (C) (OPT)
-
2837146-19B10 KEY, BLANK TYPE (D) (OPT)KEY, BLANK TYPE (D) (OPT)
-
2837146-19B20 KEY, BLANK TYPE (E) (OPT)KEY, BLANK TYPE (E) (OPT)
-
2837146-19B30 KEY, BLANK TYPE (F) (OPT)KEY, BLANK TYPE (F) (OPT)
-
2936619-31G00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
