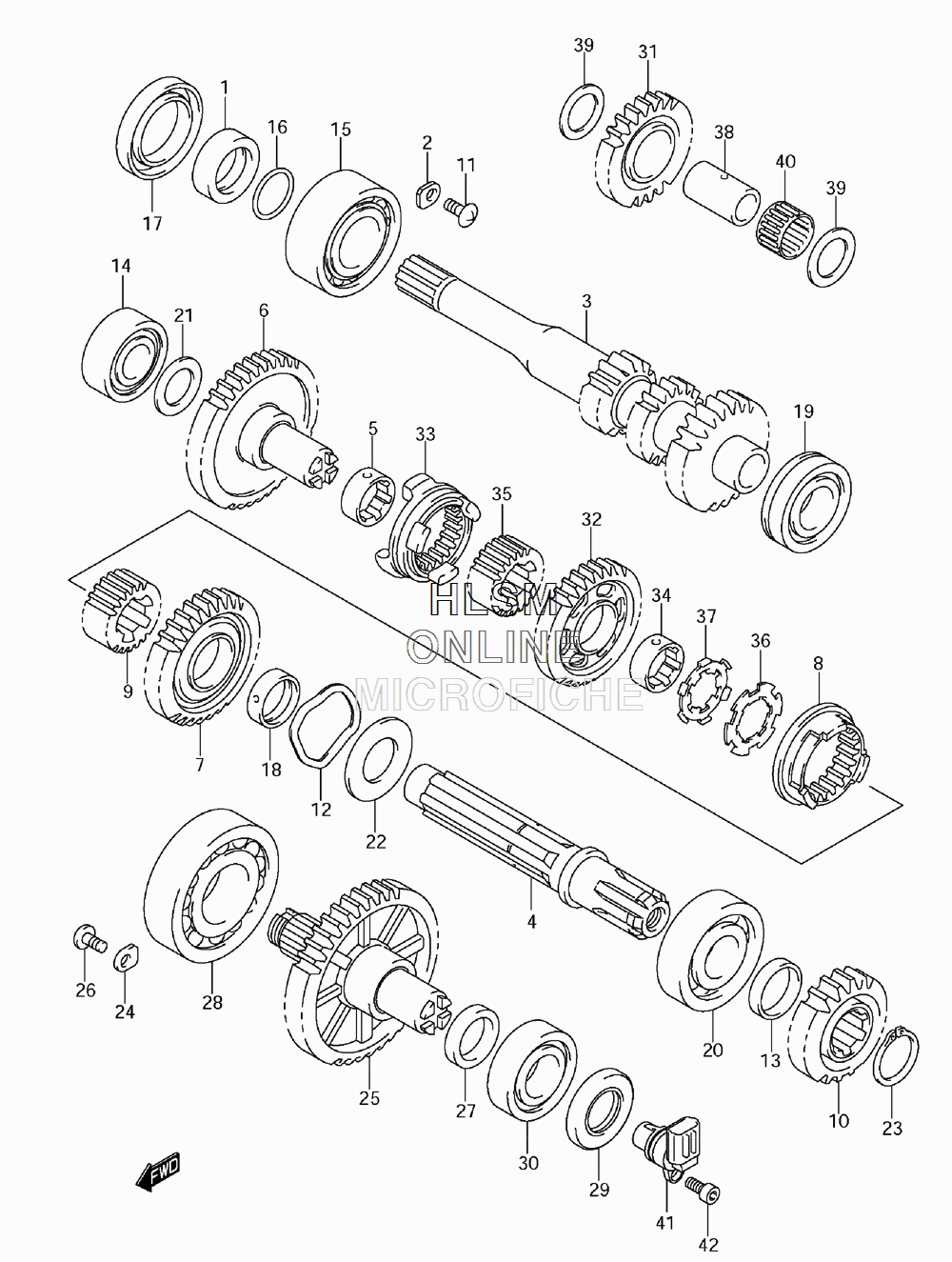

TRANSMISSION - SHAFTS для Suzuki LT-A450X 450AXi - 2009 года выпуска`

№

Артикул

Название
1

21102-31G00 SPACER, DRIVE SHAFT

SPACER, DRIVE SHAFT

4 690 ₽
2

24741-21A00 RETAINER, DRIVE SHAFT, RIGHT

RETAINER, DRIVE SHAFT, RIGHT

480 ₽
3

29111-11H01 SHAFT, DRIVE (NT:25/16/16)

SHAFT, DRIVE (NT:25/16/16)

48 660 ₽
4

29131-31G00 SHAFT, SUB T/M COUNTER

SHAFT, SUB T/M COUNTER

16 480 ₽
5

29215-07G00 BUSH, SUB T/M DRIVEN GR LOW

BUSH, SUB T/M DRIVEN GR LOW

3 300 ₽
6

29311-31G00 GEAR, SUB T/M DRIVEN LOW (NT:41)

GEAR, SUB T/M DRIVEN LOW (NT:41)

19 120 ₽
7

29321-31G00 GEAR, SUB T/M DRIVEN HIGH (NT:31)

GEAR, SUB T/M DRIVEN HIGH (NT:31)

22 320 ₽
8

29331-31G00 DOG, GEAR SHIFT HIGH

DOG, GEAR SHIFT HIGH

11 340 ₽
9

29332-31G00 SPACER, SUB T/M SELECT

SPACER, SUB T/M SELECT

6 300 ₽
10

29411-11H00 GEAR, SUB T/M DRIVE NO.2 (NT:20)

GEAR, SUB T/M DRIVE NO.2 (NT:20)

0 ₽
11

09125-06110 SCREW, RTNR DRIVE SHAFT, R (6X12)

SCREW, RTNR DRIVE SHAFT, R (6X12)

350 ₽
12

09164-34001 WASHER, SUB T/M DRIVEN

WASHER, SUB T/M DRIVEN

1 020 ₽
13

09180-25097 SPACER, SUB T/M DRIVE GEAR (25X30X7)

SPACER, SUB T/M DRIVE GEAR (25X30X7)

1 410 ₽
14

09262-20139 BEARING, SUB T/M COUNTER, R (20X47X14)

BEARING, SUB T/M COUNTER, R (20X47X14)

6 530 ₽
15

09262-25153 BEARING, DRIVE SHAFT, R (25X62X17)

BEARING, DRIVE SHAFT, R (25X62X17)

10 110 ₽
16

09280-25004 O-RING, DRIVE SHAFT (D:2.4,ID24.7)

O-RING, DRIVE SHAFT (D:2.4,ID24.7)

350 ₽
17

09283-38025 SEAL, DRIVE SHAFT SPACE (38X56X7.0)

SEAL, DRIVE SHAFT SPACE (38X56X7.0)

5 570 ₽
18

24252-19F00 BUSH, SUB T/M DRIVEN GR

BUSH, SUB T/M DRIVEN GR

2 550 ₽
19

09262-25142 BEARING, DRIVE SHAFT, L (25X52X15)

BEARING, DRIVE SHAFT, L (25X52X15)

5 170 ₽
20

09262-25073 BEARING, SUB T/M COUNTER, L (25X62X17)

BEARING, SUB T/M COUNTER, L (25X62X17)

4 530 ₽
21

08211-20363 WASHER, SUB T/M DRIVEN, R

WASHER, SUB T/M DRIVEN, R

550 ₽
22

08211-25463 WASHER, SUB T/M DRIVEN, L

WASHER, SUB T/M DRIVEN, L

730 ₽
23

08331-3125A CIRCLIP, SUB T/M GEAR

CIRCLIP, SUB T/M GEAR

0 ₽
24

24741-21A00 RETAINER, SEC DRIVE SHAFT

RETAINER, SEC DRIVE SHAFT

480 ₽
25

29120-11H00 SHAFT, SUB T/M OUTPUT

SHAFT, SUB T/M OUTPUT

0 ₽
26

09125-06110 SCREW, RETAINER (6X12)

SCREW, RETAINER (6X12)

350 ₽
27

09180-25083 SPACER, SUB T/M OUTPUT (25X34X5.5)

SPACER, SUB T/M OUTPUT (25X34X5.5)

2 030 ₽
28

09262-30077 BEARING, SUB T/M OUTPUT, R (30X72X19)

BEARING, SUB T/M OUTPUT, R (30X72X19)

8 360 ₽
29

09283-25076 SEAL, SUB T/M OUTPUT, L (25X45X5)

SEAL, SUB T/M OUTPUT, L (25X45X5)

1 780 ₽
30

09262-25003 BEARING, SUB T/M OUTPUT, L (25X45X5)

BEARING, SUB T/M OUTPUT, L (25X45X5)

4 340 ₽
31

24561-31G01 GEAR, REVERSE IDLE (NT:23)

GEAR, REVERSE IDLE (NT:23)

14 610 ₽
32

24571-31G00 GEAR, REVERSE DRIVEN (NT:32)

GEAR, REVERSE DRIVEN (NT:32)

17 040 ₽
33

24581-31G00 DOG, SUB T/M SELECT SL

DOG, SUB T/M SELECT SL

12 540 ₽
34

29215-07G00 BUSH, REVERSE DRIVEN GEAR

BUSH, REVERSE DRIVEN GEAR

3 300 ₽
35

29332-31G00 SPACER, REVERSE SELECT

SPACER, REVERSE SELECT

6 300 ₽
36

09167-25013 WASHER, LOCK

WASHER, LOCK

470 ₽
37

09169-25001 WASHER, LOCK

WASHER, LOCK

390 ₽
38

24551-31G00 SHAFT, REVERSE IDLE

SHAFT, REVERSE IDLE

2 660 ₽
39

09181-20195 WASHER, REVERSE IDLE GEAR (20X30X1.0)

WASHER, REVERSE IDLE GEAR (20X30X1.0)

440 ₽
40

09263-20060 BEARING, REVERSE IDLE GEAR (20X47X14)

BEARING, REVERSE IDLE GEAR (20X47X14)

2 970 ₽
41

34990-31G00 SENSOR, SPEED

SENSOR, SPEED

20 420 ₽
42

07130-0616B BOLT, SENSOR

BOLT, SENSOR

860 ₽
