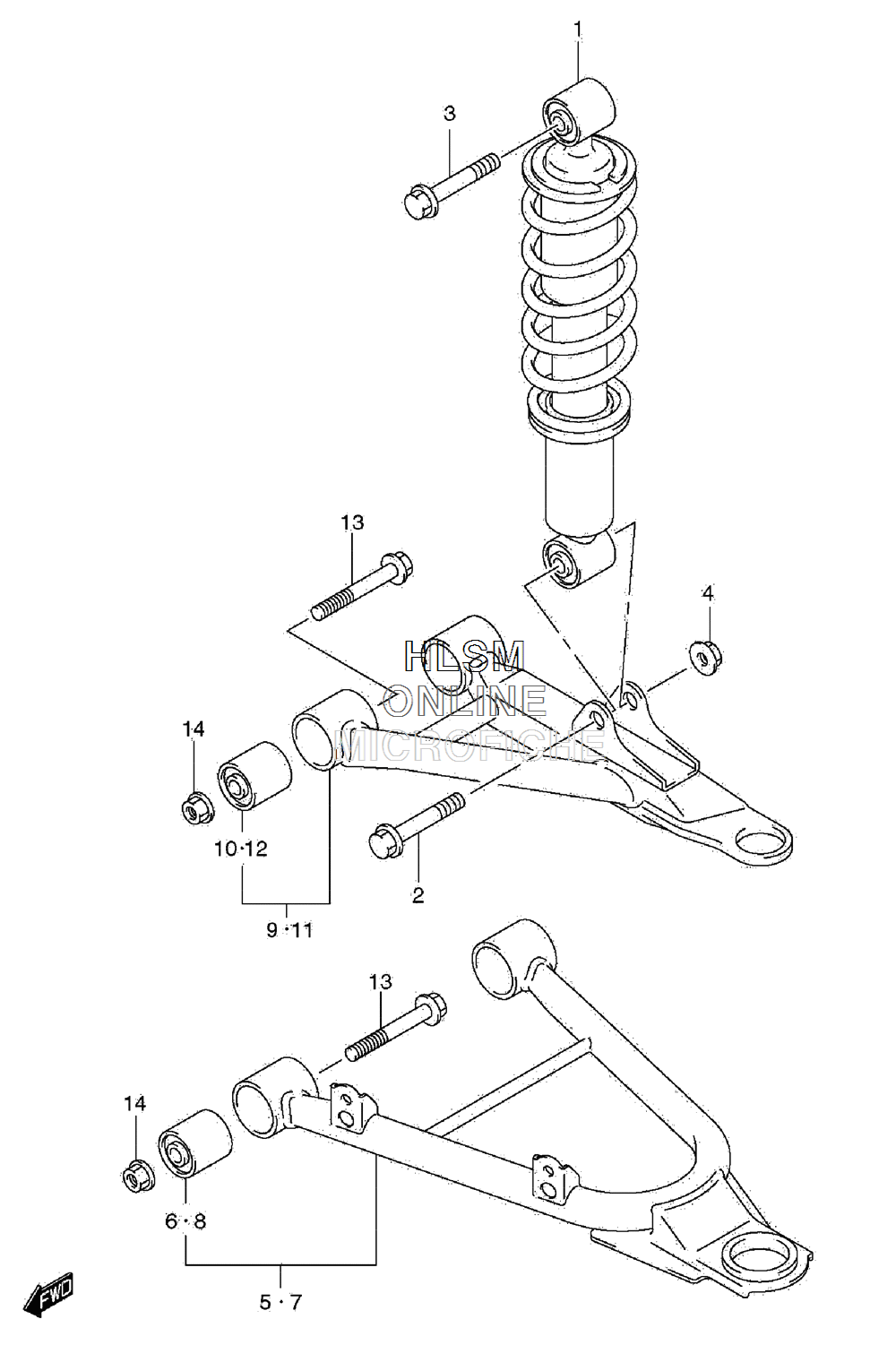

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-A400FC KingQuad 400AS 4x4 Auto (Camo) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    52100-27H10-019 ABSORBER ASSY, FRONT SHOCK (BLACK)
    ABSORBER ASSY, FRONT SHOCK (BLACK)
  • 2
    09103-10126 BOLT (10X48)
    BOLT (10X48)
  • 3
    09103-10352 BOLT (10X48)
    BOLT (10X48)
  • 4
    08319-3110A NUT
    NUT
  • 5
    52410-27820 ARM SET, SUSPENSION LOWER RIGHT HAND (INC 6)
    ARM SET, SUSPENSION LOWER RIGHT HAND (INC 6)
  • 6
    09319-10055 BUSH (10X35.1X38)
    BUSH (10X35.1X38)
  • 7
    52420-27820 ARM SET, SUSPENSION LOWER LEFT HAND (INC 8)
    ARM SET, SUSPENSION LOWER LEFT HAND (INC 8)
  • 8
    09319-10055 BUSH (10X35.1X38)
    BUSH (10X35.1X38)
  • 9
    52430-27810 ARM SET, SUSPENSION UPPER RIGHT HAND (INC 10)
    ARM SET, SUSPENSION UPPER RIGHT HAND (INC 10)
  • 10
    09319-10055 BUSH (10X35.1X38)
    BUSH (10X35.1X38)
  • 11
    52440-27810 ARM SET, SUSPENSION UPPER LEFT HAND (INC 12)
    ARM SET, SUSPENSION UPPER LEFT HAND (INC 12)
  • 12
    09319-10055 BUSH (10X35.1X38)
    BUSH (10X35.1X38)
  • 13
    09103-10301 BOLT (10X60)
    BOLT (10X60)
  • 14
    09159-10115 NUT
    NUT
