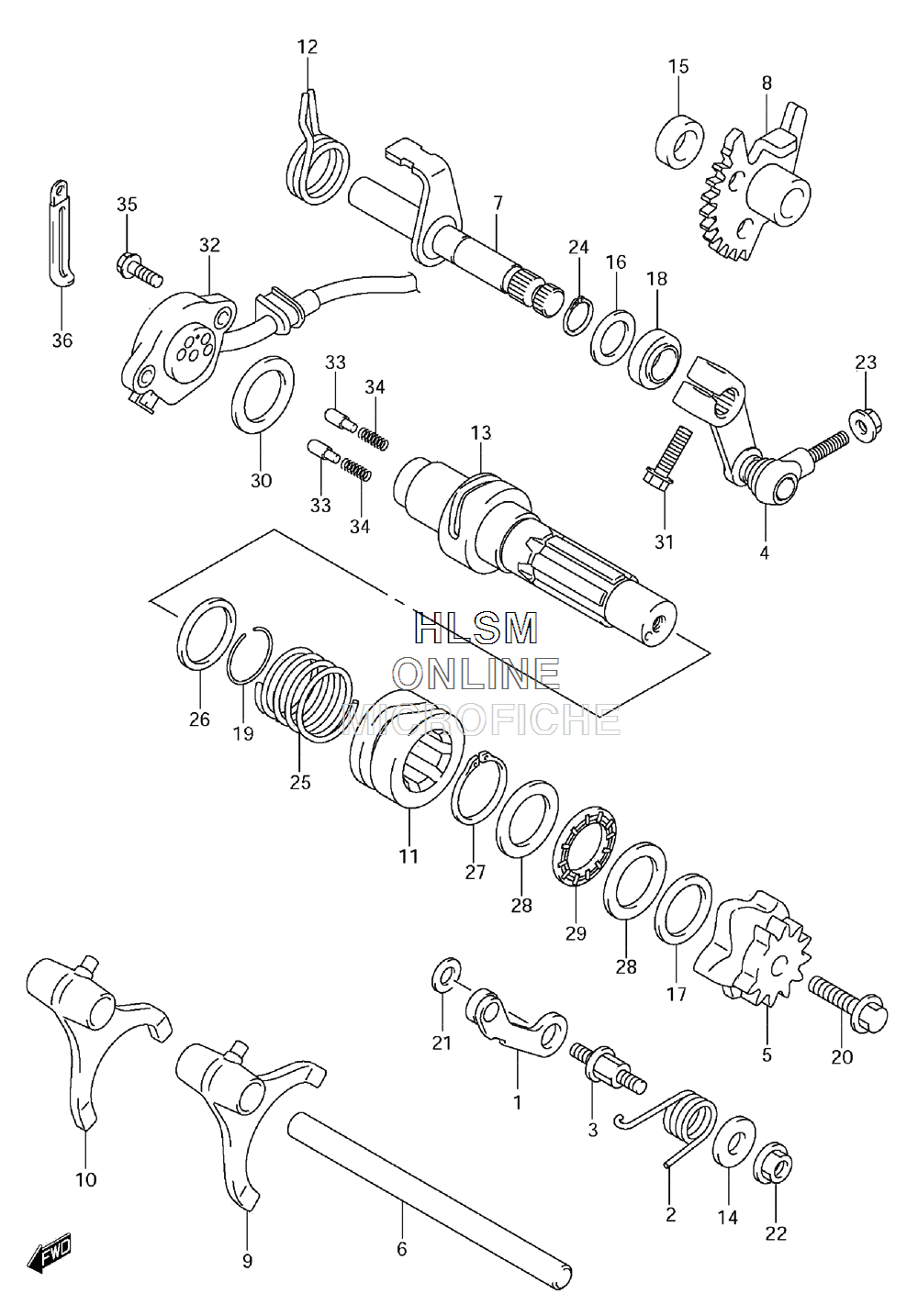

GEAR SHIFTING для Suzuki LT-A400F KingQuad 400AS 4x4 Auto - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    25350-26D01 STOPPER, SHIFT CAM
    STOPPER, SHIFT CAM
  • 2
    25355-38F00 SPRING, GEAR SHIFT CAM
    SPRING, GEAR SHIFT CAM
  • 3
    25356-12C00 SUPPORT, CAM STOPPER
    SUPPORT, CAM STOPPER
  • 4
    25360-11H10 ARM, SELECT
    ARM, SELECT
  • 5
    25381-38F10 PLATE, GEAR SHIFT CAM
    PLATE, GEAR SHIFT CAM
  • 6
    25411-18900 SHAFT, GEAR SHIFT FORK
    SHAFT, GEAR SHIFT FORK
  • 7
    25510-27H00 SHAFT, SUB T/M GEAR SHIFT
    SHAFT, SUB T/M GEAR SHIFT
  • 8
    25540-27H00 GEAR, SUB T/M SHAFT
    GEAR, SUB T/M SHAFT
  • 9
    29511-44D00 FORK, GEAR SHIFT
    FORK, GEAR SHIFT
  • 10
    29511-44D00 FORK, SHIFT REVERSE
    FORK, SHIFT REVERSE
  • 11
    29611-27H00 CAM, GEAR SHIFT
    CAM, GEAR SHIFT
  • 12
    29613-31G00 SPRING, SHIFT ARM RETURN
    SPRING, SHIFT ARM RETURN
  • 13
    29620-27H01 SHAFT, SUB T/M GEAR SHIFT
    SHAFT, SUB T/M GEAR SHIFT
  • 14
    09160-06022 WASHER, SPRING STOPPER (6.5X16X2.30)
    WASHER, SPRING STOPPER (6.5X16X2.30)
  • 15
    09180-12100 SPACER, SUB T/M GEAR
    SPACER, SUB T/M GEAR
  • 16
    09181-12167 WASHER, GEAR SHIFT SHAFT (12X20X1.0)
    WASHER, GEAR SHIFT SHAFT (12X20X1.0)
  • 17
    09181-20158 WASHER, SHIFT CAM PLATE (20X28X0.5)
    WASHER, SHIFT CAM PLATE (20X28X0.5)
  • 18
    09285-12006 SEAL, T/M GEAR SHIFT OIL (12X22X9.0)
    SEAL, T/M GEAR SHIFT OIL (12X22X9.0)
  • 19
    09380-25012 C RING, T/M CAM STOP
    C RING, T/M CAM STOP
  • 20
    01550-0625B BOLT, GEAR CAM PLATE
    BOLT, GEAR CAM PLATE
  • 21
    08211-06141 WASHER, CAM STOPPER
    WASHER, CAM STOPPER
  • 22
    08316-1006B NUT, SPRING STOPPER
    NUT, SPRING STOPPER
  • 23
    08310-0006A NUT GEAR SHIFT LINK ROD
    NUT GEAR SHIFT LINK ROD
  • 24
    08331-3112A CIRCLIP, GEAR SHIFT SHAFT
    CIRCLIP, GEAR SHIFT SHAFT
  • 25
    29612-38F00 SPRING, SUB T/M SHIFT CAM
    SPRING, SUB T/M SHIFT CAM
  • 26
    09181-25139 WASHER, SHIFT CAM SPRING (25X32X1.0)
    WASHER, SHIFT CAM SPRING (25X32X1.0)
  • 27
    08331-3125A CIRCLIP, SHIFT CAM SPRING
    CIRCLIP, SHIFT CAM SPRING
  • 28
    09181-20251 WASHER, SHIFT SHAFT (20X34X1.0)
    WASHER, SHIFT SHAFT (20X34X1.0)
  • 29
    09263-20014 BEARING, SUB T/M (20X35X2)
    BEARING, SUB T/M (20X35X2)
  • 30
    09181-25167 WASHER, SHIFT SHAFT
    WASHER, SHIFT SHAFT
  • 31
    01550-0620B BOLT, SHIFT LEVER
    BOLT, SHIFT LEVER
  • 32
    37720-27H00 BASE ASSY, GEAR SHIFT TERM
    BASE ASSY, GEAR SHIFT TERM
  • 33
    09209-05011 CONTACT
    CONTACT
  • 34
    09440-04010 SPRING
    SPRING
  • 35
    07120-0516A BOLT
    BOLT
  • 36
    09404-06429 CLAMP (L:45)
    CLAMP (L:45)
