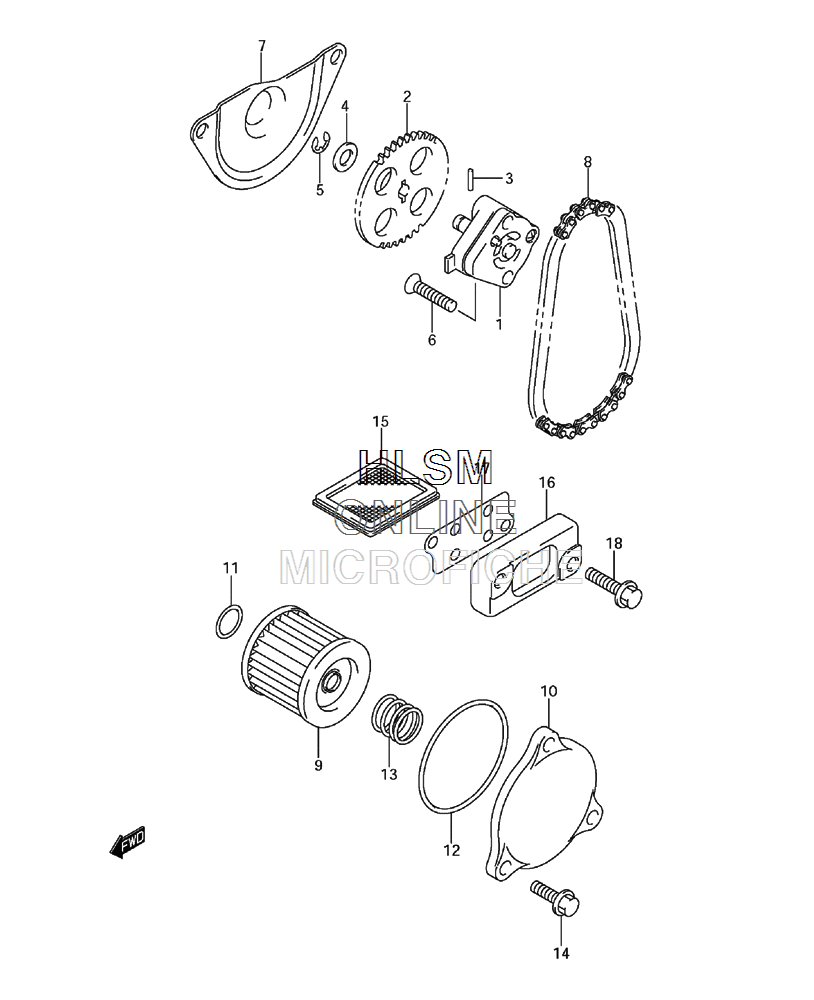

OIL PUMP для Suzuki LT-Z90 QuadSport Z90 - 2008 года выпуска`
-
№АртикулНазвание
-
116400-33G40 PUMP ASSY, OILPUMP ASSY, OIL
-
216331-33G40 SPROCKET, DRIVENSPROCKET, DRIVEN
-
316421-20E00 PINPIN
-
416422-20E00 WASHERWASHER
-
516423-20E00 CIRCLIPCIRCLIP
-
602122-0625B SCREWSCREW
-
716422-33G00 COVER, OIL PUMPCOVER, OIL PUMP
-
816310-33G40 CHAIN ASSY, OIL PUMP DRIVECHAIN ASSY, OIL PUMP DRIVE
-
916510-05240 FILTER, ENGINE OILFILTER, ENGINE OIL
-
1016512-09G00 CAP, OIL FILTERCAP, OIL FILTER
-
1109280-13004 O RING (D:1.9,ID:13)O RING (D:1.9,ID:13)
-
1209280-54001 O RING (D:2.4,ID:52.6)O RING (D:2.4,ID:52.6)
-
1309440-18002 SPRINGSPRING
-
1401547-0616B BOLTBOLT
-
1516520-09410 STRAINER, OILSTRAINER, OIL
-
1616523-20E00 CAPCAP
-
1716524-20E00 GASKETGASKET
-
1801547-0625B BOLTBOLT
