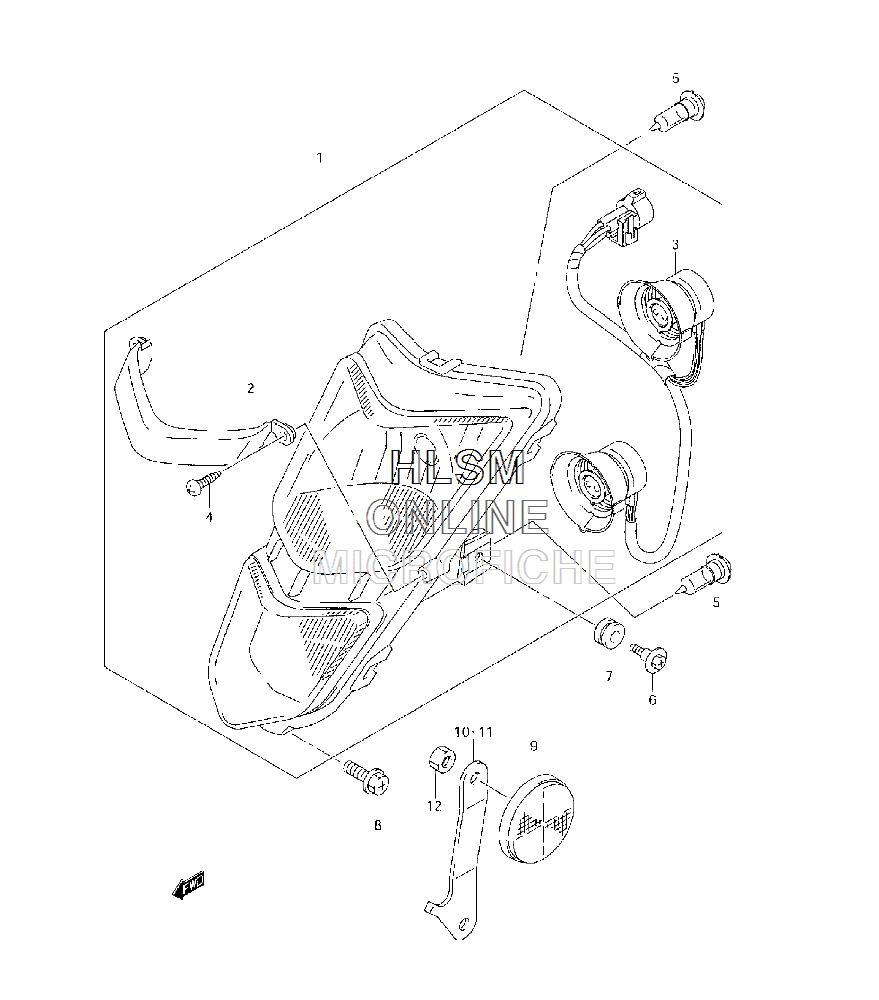

HEADLAMP для Suzuki LT-Z400 QuadSport Z400 - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    35100-07G00-YU1 HEADLAMP ASSY (YELLOW) (FOR YU1) (INCL. 2-4)
    HEADLAMP ASSY (YELLOW) (FOR YU1) (INCL. 2-4)
  • 1
    35100-07G00-30H HEADLAMP ASSY (WHITE) (FOR 30H) (INCL. 2-4)
    HEADLAMP ASSY (WHITE) (FOR 30H) (INCL. 2-4)
  • 2
    35143-07G00-YU1 MOLDING (YELLOW) (FOR YU1)
    MOLDING (YELLOW) (FOR YU1)
  • 2
    35143-07G00-30H MOLDING (WHITE) (FOR 30H)
    MOLDING (WHITE) (FOR 30H)
  • 3
    35171-07G00 SOCKET/CORD ASSY
    SOCKET/CORD ASSY
  • 4
    03511-0412A SCREW
    SCREW
  • 5
    09471-12097 BULB (14V30/30W)
    BULB (14V30/30W)
  • 6
    09139-06118 SCREW, HEADLAMP
    SCREW, HEADLAMP
  • 7
    09320-10501 CUSHION
    CUSHION
  • 8
    02162-0616B BOLT, HEADLAMP ADJUST
    BOLT, HEADLAMP ADJUST
  • 9
    35950-14A00 REFLEX REFLECTOR ASSY, FR (CANADA ONLY)
    REFLEX REFLECTOR ASSY, FR (CANADA ONLY)
  • 10
    35956-07G01 BRACKET, FR SIDE, RIGHT HAND (CANADA ONLY)
    BRACKET, FR SIDE, RIGHT HAND (CANADA ONLY)
  • 11
    35957-07G01 BRACKET, FR SIDE, LEFT HAND (CANADA ONLY)
    BRACKET, FR SIDE, LEFT HAND (CANADA ONLY)
  • 12
    08316-1005B NUT (CANADA ONLY)
    NUT (CANADA ONLY)
