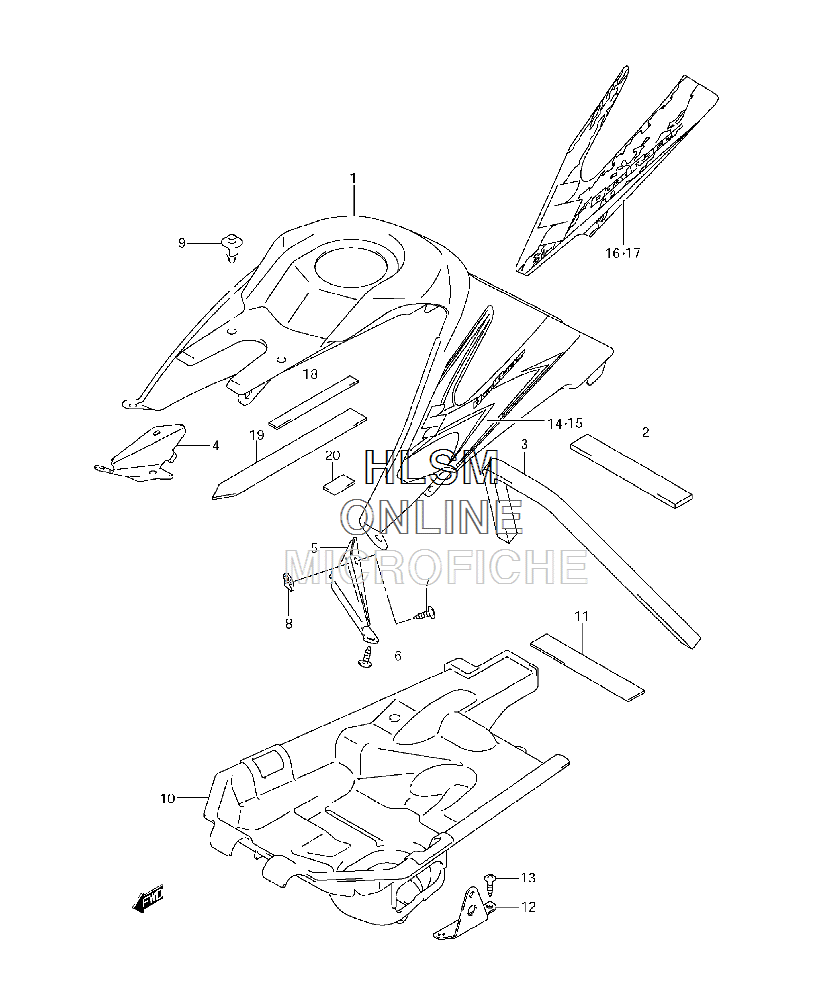

FUEL TANK COVER для Suzuki LT-R450 QuadRacer R450 - 2008 года выпуска`
-
№АртикулНазвание
-
144271-45G00-YU1 COVER, FUEL TANK (YELLOW)COVER, FUEL TANK (YELLOW)
-
144271-45G00-30H COVER, FUEL TANK (WHITE)COVER, FUEL TANK (WHITE)
-
247451-38A01 CUSHION, NO.1CUSHION, NO.1
-
344555-45G00 CUSHION, NO.2CUSHION, NO.2
-
444174-45G00 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
544184-45G00 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
603241-0516A SCREW, BRACKETSCREW, BRACKET
-
703241-1516A SCREW, COVER REARSCREW, COVER REAR
-
809148-05045 NUTNUT
-
909409-07333 CLIPCLIP
-
1044391-45G00 COVER, FUEL TANK LOWERCOVER, FUEL TANK LOWER
-
1147451-38A01 CUSHIONCUSHION
-
1244460-45G00 BRACKET, HOSE GUIDEBRACKET, HOSE GUIDE
-
1303241-1516A SCREWSCREW
-
1468115-45G20-ELZ TAPE, COVER RIGHT HAND (FOR 30H)TAPE, COVER RIGHT HAND (FOR 30H)
-
1468115-45G20-EMA TAPE, COVER RIGHT HAND (FOR YU1)TAPE, COVER RIGHT HAND (FOR YU1)
-
1568116-45G20-ELZ TAPE, COVER LEFT HAND (FOR 30H)TAPE, COVER LEFT HAND (FOR 30H)
-
1568116-45G20-EMA TAPE, COVER LEFT HAND (FOR YU1)TAPE, COVER LEFT HAND (FOR YU1)
-
1844556-45G00 CUSHION, COVER NO.1CUSHION, COVER NO.1
-
1944557-45G00 CUSHION, COVER NO.3CUSHION, COVER NO.3
-
2044558-45G00 CUSHION, LOWERCUSHION, LOWER
