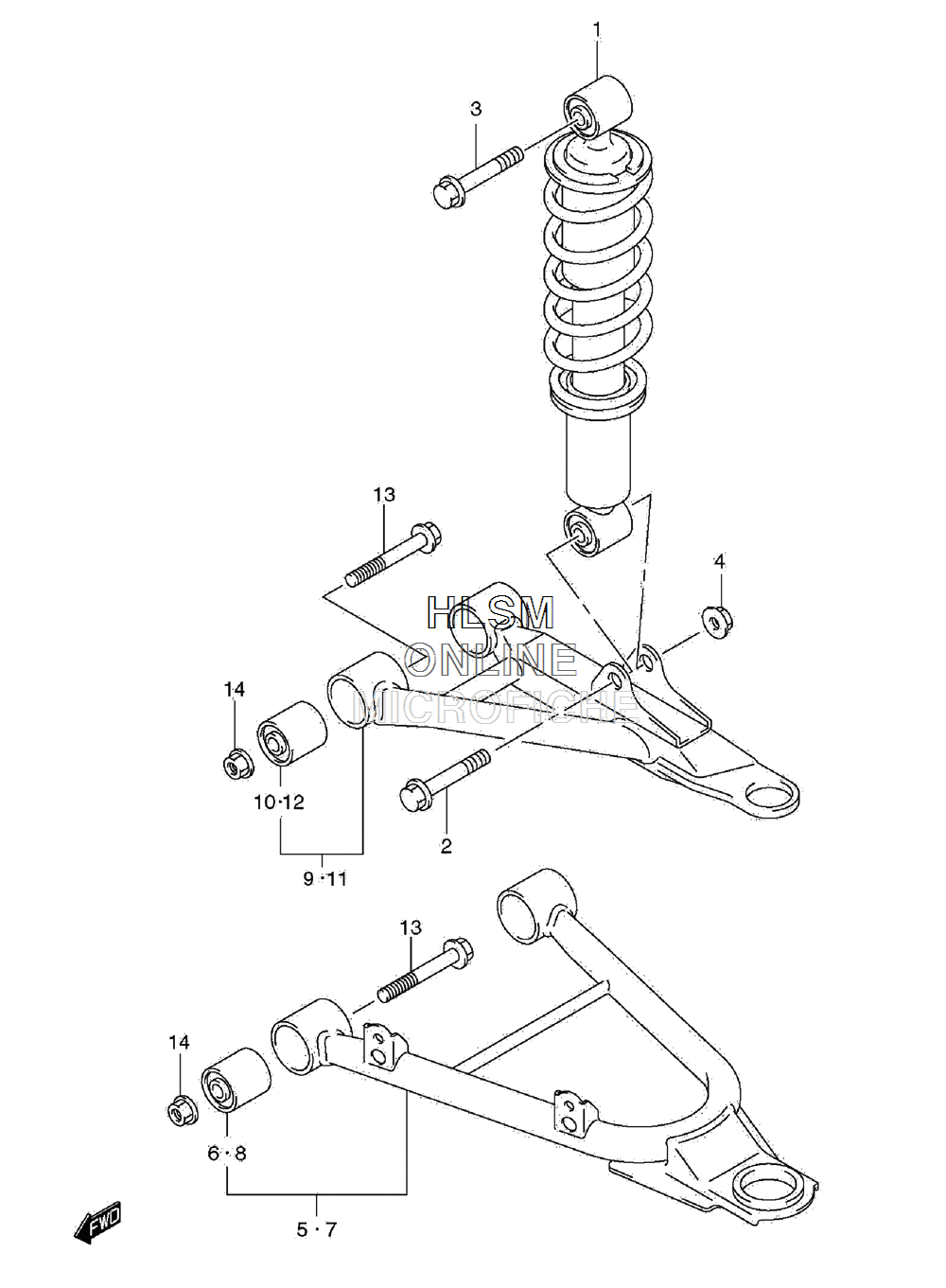

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-F400F KingQuad 400FS 4x4 - 2008 года выпуска`
-
№АртикулНазвание
-
152100-27H10-019 ABSORBER ASSY, FRONT SHOCK (BLACK)ABSORBER ASSY, FRONT SHOCK (BLACK)
-
209103-10126 BOLT (10X48)BOLT (10X48)
-
309103-10352 BOLT (10X48)BOLT (10X48)
-
408319-3110A NUTNUT
-
552410-27820 ARM SET, SUSPENSION LOWER RIGHT HAND (INC 6)ARM SET, SUSPENSION LOWER RIGHT HAND (INC 6)
-
609319-10055 BUSH (10X35.1X38)BUSH (10X35.1X38)
-
752420-27820 ARM SET, SUSPENSION LOWER LEFT HAND (INC 8)ARM SET, SUSPENSION LOWER LEFT HAND (INC 8)
-
809319-10055 BUSH (10X35.1X38)BUSH (10X35.1X38)
-
952430-27810 ARM SET, SUSPENSION UPPER RIGHT HAND (INC 10)ARM SET, SUSPENSION UPPER RIGHT HAND (INC 10)
-
1009319-10055 BUSH (10X35.1X38)BUSH (10X35.1X38)
-
1152440-27810 ARM SET, SUSPENSION UPPER LEFT HAND (INC 11)ARM SET, SUSPENSION UPPER LEFT HAND (INC 11)
-
1209319-10055 BUSH (10X35.1X38)BUSH (10X35.1X38)
-
1309103-10301 BOLT (10X60)BOLT (10X60)
-
1409159-10115 NUTNUT
