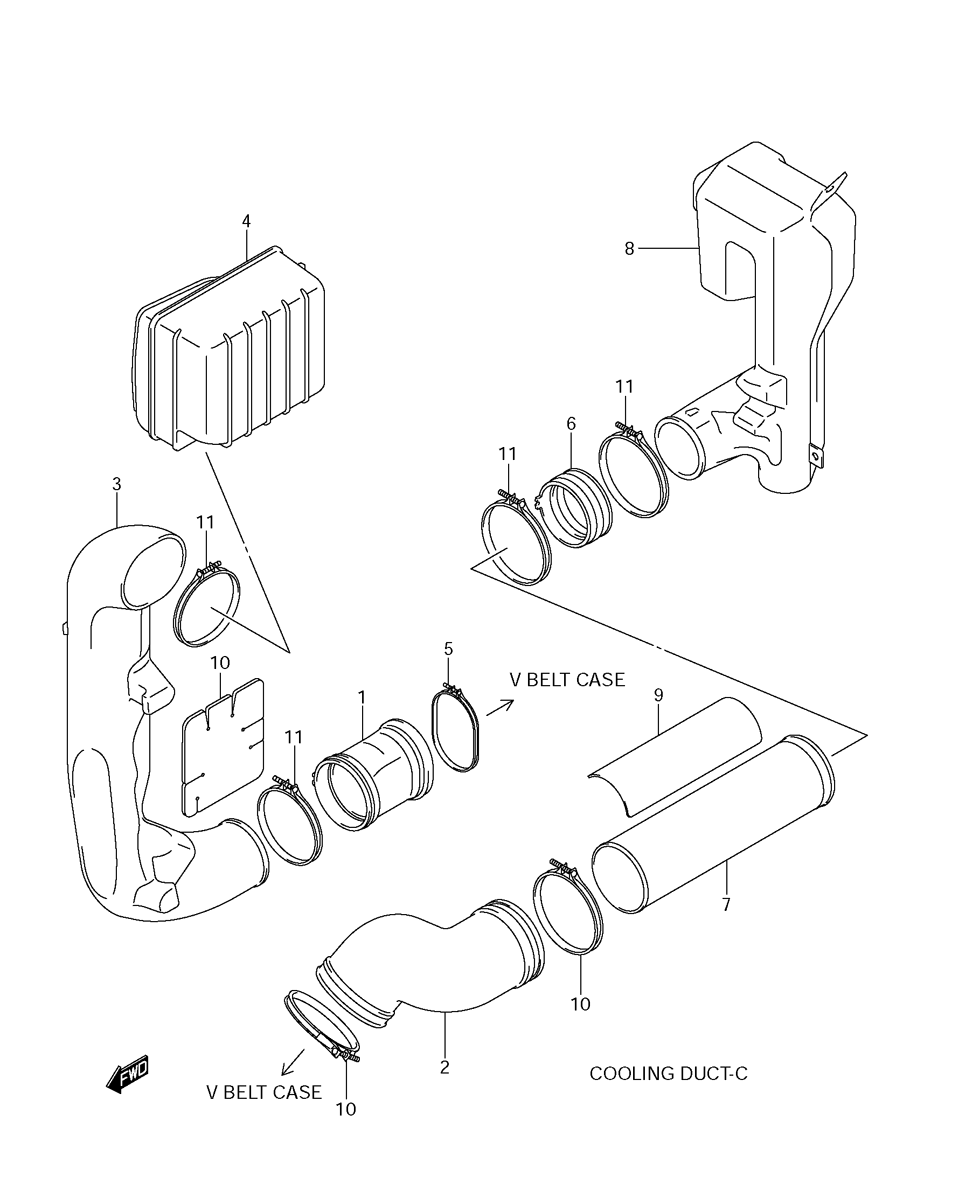

COOLING DUCTS для Suzuki LT-A750X KINGQUAD 750AXi - 2008 года выпуска`
-
№АртикулНазвание
-
111385-31G00 CONNECTOR, CLG DUCT FRCONNECTOR, CLG DUCT FR
-
211386-31G00 CONNECTOR, CLG DUCT RRCONNECTOR, CLG DUCT RR
-
311387-31G00 DUCT, BELT CLG FR NO.1DUCT, BELT CLG FR NO.1
-
411388-31G00 DUCT, BELT CLG FR NO.2DUCT, BELT CLG FR NO.2
-
511389-09F50 CLAMP, BELT CLG DUCT FRCLAMP, BELT CLG DUCT FR
-
611397-31G00 CONNECTOR, CLG DUCT RRCONNECTOR, CLG DUCT RR
-
711398-31G00 DUCT, BELT CLG RR NO.1DUCT, BELT CLG RR NO.1
-
811399-31G00 DUCT, BELT CLG RR NO.2DUCT, BELT CLG RR NO.2
-
911487-31G00 SHIELD, BELT CLG DUCT RRSHIELD, BELT CLG DUCT RR
-
1011488-31G00 SHIELD, BELT CLG DUCT FRSHIELD, BELT CLG DUCT FR
-
1109402-82202 CLAMPCLAMP
