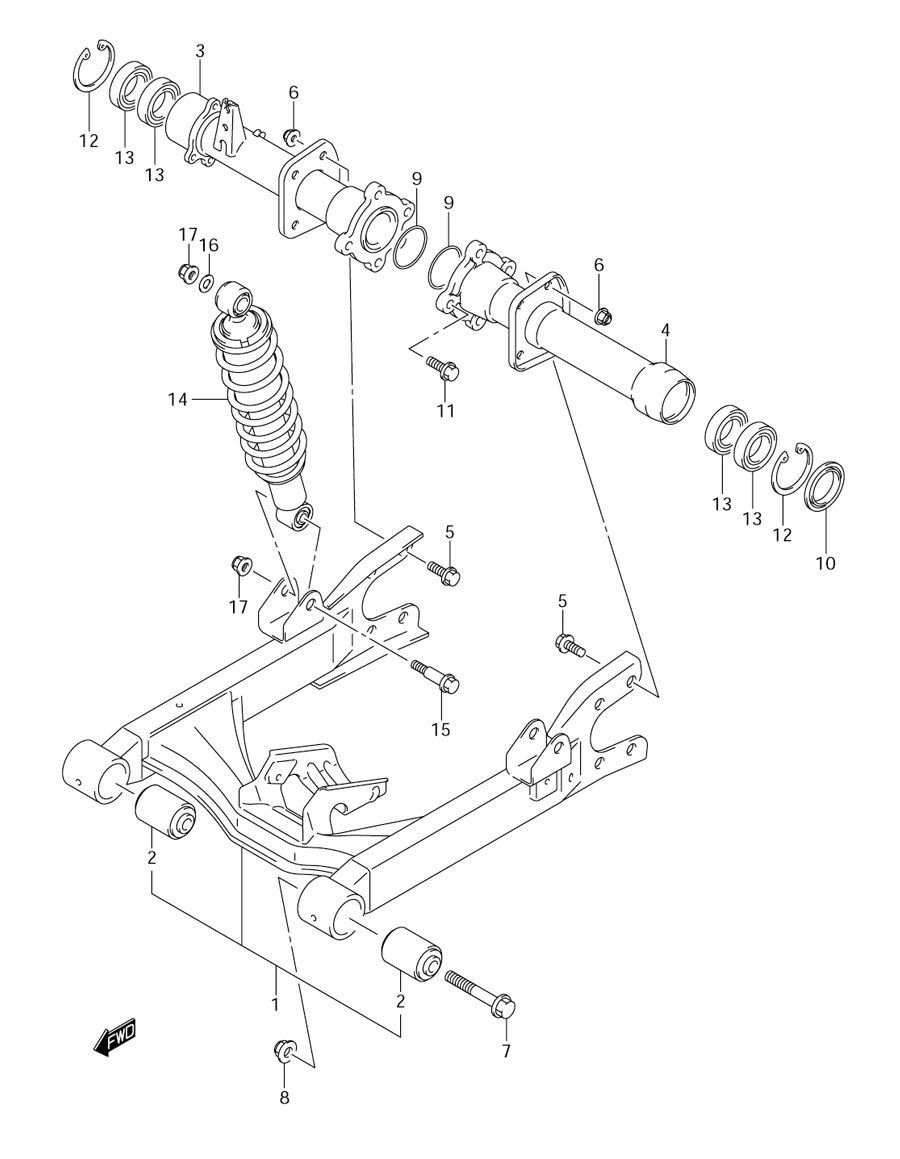

SUSPENSION - REAR SWING ARM для Suzuki LT-A400 KINGQUAD - 2008 года выпуска
-
№АртикулНазвание
-
161101-27850 SWINGINGARM SET, REARSWINGINGARM SET, REAR
-
261230-27H00 ...BUSH, PIVOT...BUSH, PIVOT
-
361300-27H00 HOUSING, REAR AXLE RIGHT HANDHOUSING, REAR AXLE RIGHT HAND
-
461400-27H00 HOUSING, REAR AXLE LEFT HANDHOUSING, REAR AXLE LEFT HAND
-
509103-10216 BOLT, REAR SWGARM BRACKETBOLT, REAR SWGARM BRACKET
-
609159-10115 NUT, REAR SWGARM BRACKETNUT, REAR SWGARM BRACKET
-
709103-12068 BOLT, PIVOTBOLT, PIVOT
-
809159-12054 NUT, PIVOTNUT, PIVOT
-
909280-70005 O RING, REAR AXLE HOUSINGO RING, REAR AXLE HOUSING
-
1009283-38022 SEAL, REAR AXLE HOUSINGSEAL, REAR AXLE HOUSING
-
1109103-10421 BOLT, AXLE HOUSINGBOLT, AXLE HOUSING
-
1208331-4155A CIRCLIPCIRCLIP
-
1308123-60067 BEARING, HUBBEARING, HUB
-
1462100-27H00-019 ABSORBER ASSEMBLY, REAR SHOCK (BLACK) (019)ABSORBER ASSEMBLY, REAR SHOCK (BLACK) (019)
-
1509103-10126 BOLT, LOWERBOLT, LOWER
-
1609160-10501 WASHER, UPPER, OUTERWASHER, UPPER, OUTER
-
1708319-3110B NUTNUT
