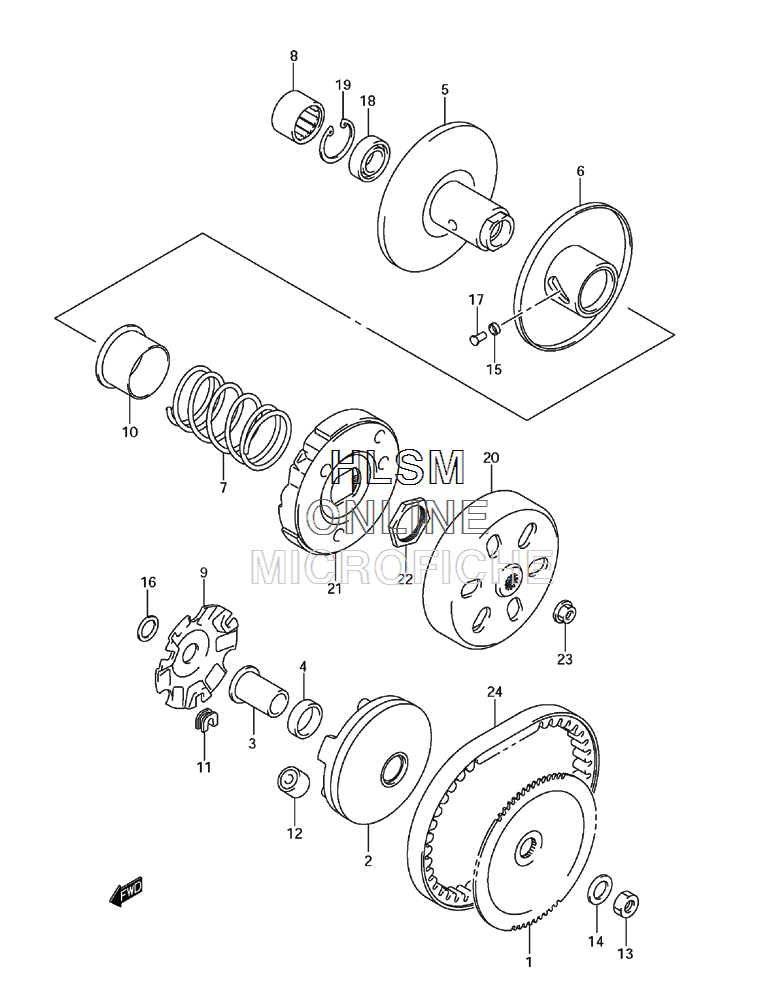

TRANSMISSION (1) для Suzuki LT-Z50 QuadSport Z50 - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    21111-43E00 FACE, FIXED DRIVE (NT:63)
    FACE, FIXED DRIVE (NT:63)
  • 2
    21120-43EA0 FACE, MOVABLE DRIVE
    FACE, MOVABLE DRIVE
  • 3
    21125-43G00 SPACER, MOVABLE DRIVE
    SPACER, MOVABLE DRIVE
  • 4
    21128-43G00 SPACER, MOVABLE DRIVE STOPPER
    SPACER, MOVABLE DRIVE STOPPER
  • 5
    21210-43E00 FACE, FIXED DRIVEN
    FACE, FIXED DRIVEN
  • 6
    21240-22G00 FACE, MOVABLE DRIVEN
    FACE, MOVABLE DRIVEN
  • 7
    21243-22G00 SPRING, MOVABLE DRIVEN
    SPRING, MOVABLE DRIVEN
  • 8
    09263-17042 BEARING, FIXED DRIVEN, R (17X25X16.7)
    BEARING, FIXED DRIVEN, R (17X25X16.7)
  • 9
    21431-43E00 PLATE, MOVABLE DRIVE
    PLATE, MOVABLE DRIVE
  • 10
    21471-03A11 SHEET, MOVABLE DRIVEN
    SHEET, MOVABLE DRIVEN
  • 11
    21481-29C40 DAMPER, MOVABLE DRIVE PLATE
    DAMPER, MOVABLE DRIVE PLATE
  • 12
    21650-43G00 ROLLER, MOVABLE DRIVE
    ROLLER, MOVABLE DRIVE
  • 13
    09140-12039 NUT, FIXED DRIVE FACE
    NUT, FIXED DRIVE FACE
  • 14
    09164-12020 WASHER, FIXED DRIVE FACE
    WASHER, FIXED DRIVE FACE
  • 15
    09180-05042 SPACER, MOVABLE DRIVEN PIN (5X8.2X3.5)
    SPACER, MOVABLE DRIVEN PIN (5X8.2X3.5)
  • 16
    09181-14139 WASHER, MOVABLE DRIVE FACE (14X20X1)
    WASHER, MOVABLE DRIVE FACE (14X20X1)
  • 17
    09201-05006 PIN, MOVABLE DRIVEN
    PIN, MOVABLE DRIVEN
  • 18
    09262-12018 BEARING, FIXED DRIVEN, L (12X24X6)
    BEARING, FIXED DRIVEN, L (12X24X6)
  • 19
    08331-4124A CIRCLIP, FIXED DRIVEN
    CIRCLIP, FIXED DRIVEN
  • 20
    21220-22G00 HOUSING, CLUTCH
    HOUSING, CLUTCH
  • 21
    21501-22G10 CLUTCH ASSY, SHOE
    CLUTCH ASSY, SHOE
  • 22
    09140-28004 NUT, SHOE CLUTCH
    NUT, SHOE CLUTCH
  • 23
    08316-1010B NUT, CLUTCH HOUSING
    NUT, CLUTCH HOUSING
  • 24
    27601-22G00 V-BELT, DRIVE
    V-BELT, DRIVE
