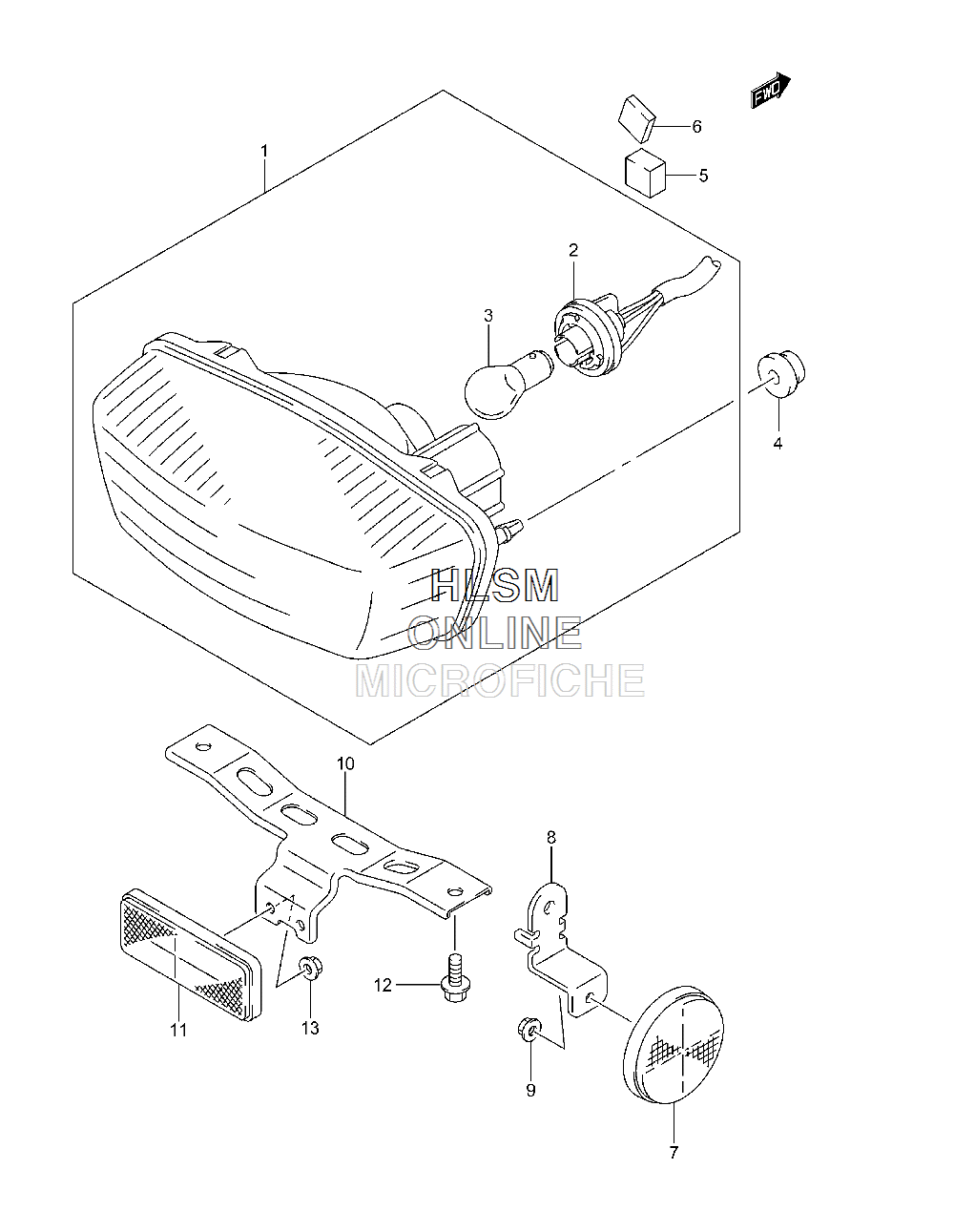

TAILLIGHT ASSY. (CANADA ONLY) для Suzuki LT-Z400 QUADSPORT Z400 - 2007 года выпуска`
-
№АртикулНазвание
-
135710-03G30 LAMP ASSY, REAR COMB (INC 2-3)LAMP ASSY, REAR COMB (INC 2-3)
-
235718-03G30 SOCKET/CORD ASSYSOCKET/CORD ASSY
-
309471-12083 BULB (12V,21/5W)BULB (12V,21/5W)
-
409320-06023 CUSHIONCUSHION
-
533652-05G20 CUSHION (12X17X17)CUSHION (12X17X17)
-
633652-07G10 CUSHION (6X17X17)CUSHION (6X17X17)
-
735970-14A10 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
835975-07G00 BRACKET, REAR SIDE RR RIGHT HANDBRACKET, REAR SIDE RR RIGHT HAND
-
908316-10053 NUT, RR SIDE RRNUT, RR SIDE RR
-
1035726-07G20 BRACKET, REAR RRBRACKET, REAR RR
-
1135970-07F00 REFLECTOR ASSY, RRREFLECTOR ASSY, RR
-
1202162-06163 SCREW, RR BKTSCREW, RR BKT
-
1308316-10053 NUTNUT
