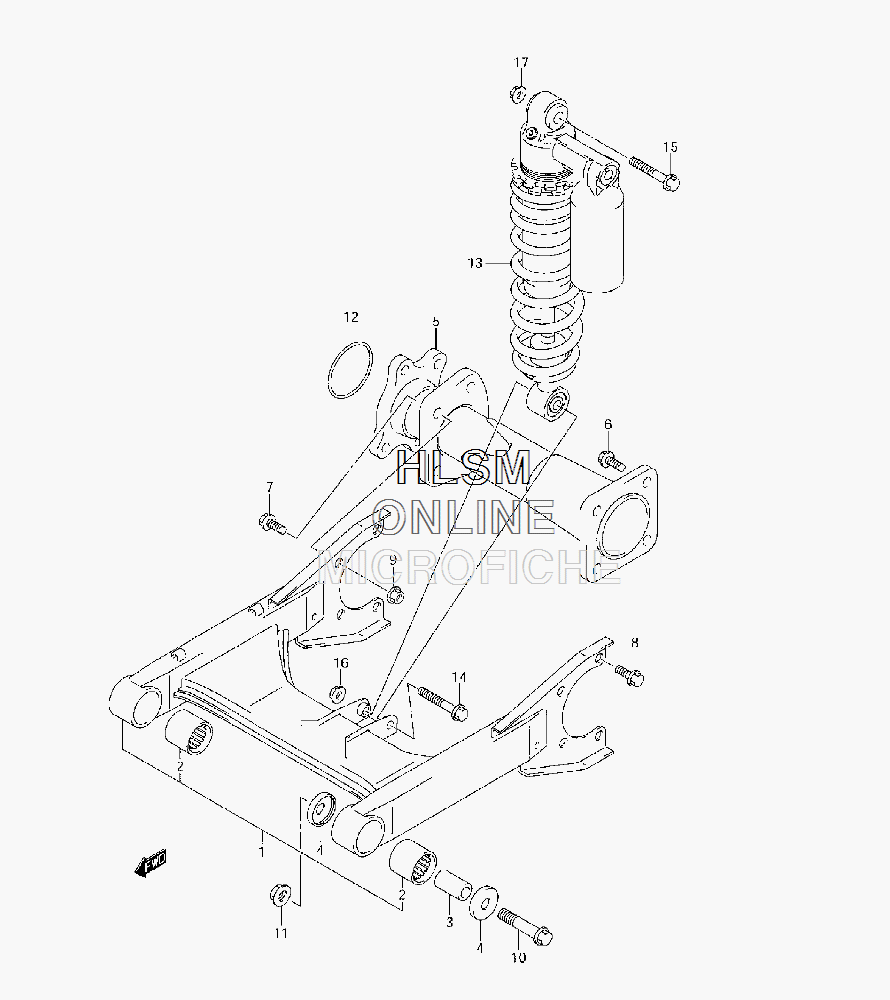

SUSPENSION - REAR SWING ARM для Suzuki LT-Z250 QUADSPORT Z250 - 2007 года выпуска`
-
№АртикулНазвание
-
161100-21841-YD8 SWINGINGARM SET, REAR (INCL. 2)SWINGINGARM SET, REAR (INCL. 2)
-
209263-20064 BEARINGBEARING
-
361251-21G00 SPACER, RR SWGARM PIVOTSPACER, RR SWGARM PIVOT
-
462624-08D00 SEAL, RR SWGARM PIVOT DUSTSEAL, RR SWGARM PIVOT DUST
-
561300-21G00-YD8 HOUSING, RR AXLE, RHOUSING, RR AXLE, R
-
609103-10364 BOLT, AXLE HOUSINGBOLT, AXLE HOUSING
-
709103-10216 BOLT, RR SWGARM BRACKET, RBOLT, RR SWGARM BRACKET, R
-
809103-10395 BOLT, RR SWGARM BRACKET, LBOLT, RR SWGARM BRACKET, L
-
909159-10115 NUT, RR SWGARM BRACKETNUT, RR SWGARM BRACKET
-
1009103-12072 BOLT, PIVOTBOLT, PIVOT
-
1109159-12054 NUT, PIVOTNUT, PIVOT
-
1209280-70005 O RING, RR AXLE HOUSING REARO RING, RR AXLE HOUSING REAR
-
1362100-21G40-28W ABSORBER ASSY, REAR SHOCK (WHITE) (FOR 30H)ABSORBER ASSY, REAR SHOCK (WHITE) (FOR 30H)
-
1362100-21G40-YKS ABSORBER ASSY, REAR SHOCK (RED) (FOR YU1)ABSORBER ASSY, REAR SHOCK (RED) (FOR YU1)
-
1362100-21G50-28W ABSORBER ASSY, REAR SHOCK (WHITE) (FOR 30H) (CANADA ONLY)ABSORBER ASSY, REAR SHOCK (WHITE) (FOR 30H) (CANADA ONLY)
-
1362100-21G50-YKS ABSORBER ASSY, REAR SHOCK (RED) (FOR YU1) (CANADA ONLY)ABSORBER ASSY, REAR SHOCK (RED) (FOR YU1) (CANADA ONLY)
-
1409103-10213 BOLT LOWERBOLT LOWER
-
1509103-12042 BOLT UPPERBOLT UPPER
-
1609159-10115 NUT LOWERNUT LOWER
-
1708319-3112A NUT UPPERNUT UPPER
