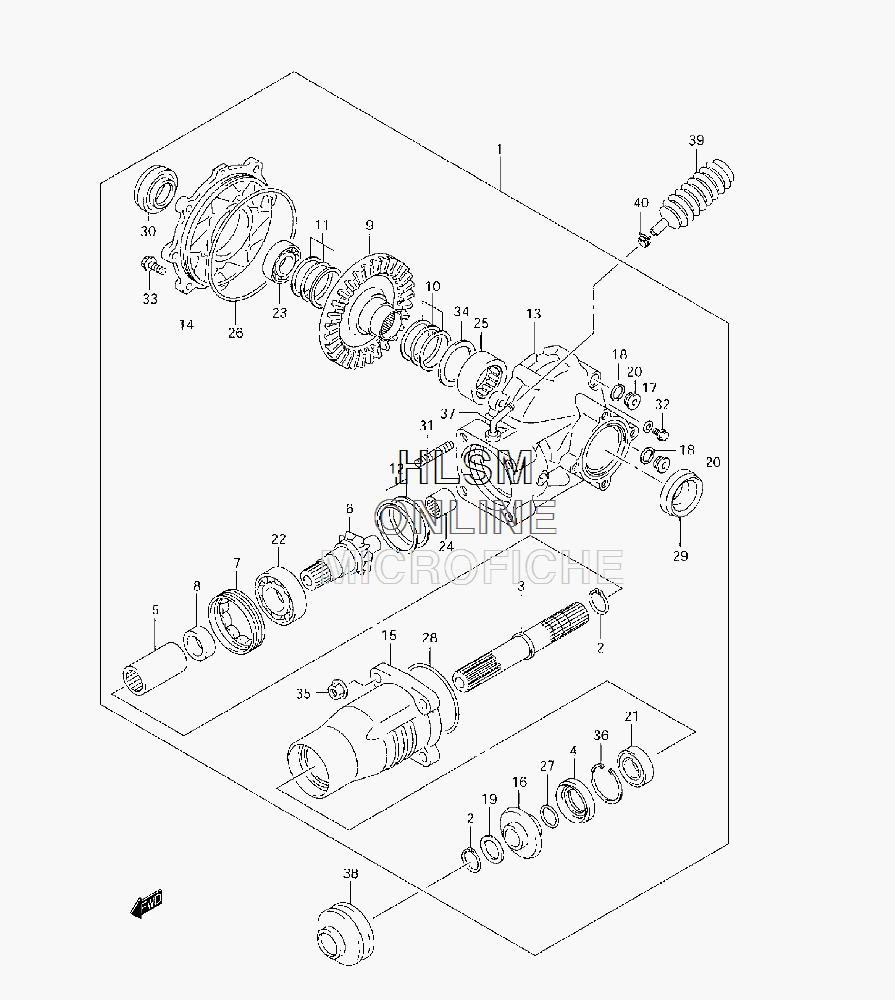

DIFFERENTIAL - REAR для Suzuki LT-F400 EIGER 4X2 MANUAL - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    27410-38F00 CASE ASSY, REAR FINAL (INCL. 2-37)
    CASE ASSY, REAR FINAL (INCL. 2-37)
  • 2
    08331-31256 CIRCLIP, RR FINAL DRIVE
    CIRCLIP, RR FINAL DRIVE
  • 3
    27155-38FM0 SHAFT, RR FINAL DRIVE
    SHAFT, RR FINAL DRIVE
  • 4
    27156-38FM0 SEAL, FINAL DR BRG
    SEAL, FINAL DR BRG
  • 5
    27157-38F00 JOINT, RR FINAL DR SHAFT
    JOINT, RR FINAL DR SHAFT
  • 6
    27311-38FM0 GEAR, FINAL DRIVEN BEVEL
    GEAR, FINAL DRIVEN BEVEL
  • 7
    27312-38F00 STOPPER, FINAL DR BRG
    STOPPER, FINAL DR BRG
  • 8
    27316-38FM0 SPACER, RR FINAL DR GR
    SPACER, RR FINAL DR GR
  • 9
    27321-38FM0 GEAR, FINAL DRIVEN BEVEL
    GEAR, FINAL DRIVEN BEVEL
  • 10
    27326-09810 SHIM SET, FINAL DRIVEN, LEFT HAND T:0.30/0.35/0.40/0.50/0.60
    SHIM SET, FINAL DRIVEN, LEFT HAND T:0.30/0.35/0.40/0.50/0.60
  • 11
    27326-18810 SHIM SET FINAL DRIVEN, RIGHT HAND T:0.30/0.35/0.40/0.50/0.60
    SHIM SET FINAL DRIVEN, RIGHT HAND T:0.30/0.35/0.40/0.50/0.60
  • 12
    27445-24810 SHIM SET, FINAL DRIVE T:0.30/0.35/0.40/0.50/0.60
    SHIM SET, FINAL DRIVE T:0.30/0.35/0.40/0.50/0.60
  • 13
    27450-38FM0 CASE, RR FINAL GR
    CASE, RR FINAL GR
  • 14
    27461-38FM0 CASE, RR FINAL DRIVEN, RIGHT HAND
    CASE, RR FINAL DRIVEN, RIGHT HAND
  • 15
    27471-38FM0 HOUSING, RR FINAL DRIVE
    HOUSING, RR FINAL DRIVE
  • 16
    27590-38F00 COLLAR, OUTPUT OIL SEAL
    COLLAR, OUTPUT OIL SEAL
  • 17
    09168-06018 GASKET, OIL CHECK BOLT 6.2X13X1.2
    GASKET, OIL CHECK BOLT 6.2X13X1.2
  • 18
    09168-16002 GASKET, OIL DRAIN PLUG 16X22X2.0
    GASKET, OIL DRAIN PLUG 16X22X2.0
  • 19
    27407-38FM0 WASHER, RR FINAL DRIVE
    WASHER, RR FINAL DRIVE
  • 20
    09248-16012 PLUG, OIL
    PLUG, OIL
  • 21
    27405-38FM0 BEARING, RR FINAL DRIVE
    BEARING, RR FINAL DRIVE
  • 22
    27405-38FN0 BEARING, FINAL DR GEAR
    BEARING, FINAL DR GEAR
  • 23
    27405-38FP0 BEARING, FINAL DRIVEN, RIGHT HAND
    BEARING, FINAL DRIVEN, RIGHT HAND
  • 24
    27405-38FR0 BEARING, FINAL DR PILOT
    BEARING, FINAL DR PILOT
  • 25
    27405-38FS0 BEARING, FINAL DRIVEN, LEFT HAND
    BEARING, FINAL DRIVEN, LEFT HAND
  • 26
    27405-38FT0 O RING, BEARING CASE, RIGHT HAND
    O RING, BEARING CASE, RIGHT HAND
  • 27
    09280-24010 O RING, COLLAR OUTPUT
    O RING, COLLAR OUTPUT
  • 28
    09280-76008 O RING, RR FINAL DR HOUSING
    O RING, RR FINAL DR HOUSING
  • 29
    09283-38009 OIL SEAL, FINAL DRIVEN, LEFT HAND
    OIL SEAL, FINAL DRIVEN, LEFT HAND
  • 30
    09283-42011 OIL SEAL, FINAL DRIVEN, RIGHT HAND
    OIL SEAL, FINAL DRIVEN, RIGHT HAND
  • 31
    01421-10303 STUD BOLT, RR FINAL
    STUD BOLT, RR FINAL
  • 32
    27401-38FM0 BOLT, OIL CHECK
    BOLT, OIL CHECK
  • 33
    27401-38FN0 BOLT, RR FINAL GR
    BOLT, RR FINAL GR
  • 34
    27407-38FN0 WASHER, FINAL DRIVEN, LEFT HAND
    WASHER, FINAL DRIVEN, LEFT HAND
  • 35
    27408-38FM0 NUT, RR FINAL
    NUT, RR FINAL
  • 36
    27403-38FM0 CIRCLIP, RR FINAL BRG
    CIRCLIP, RR FINAL BRG
  • 37
    09364-08009 UNION, BREATHER
    UNION, BREATHER
  • 38
    27153-44D80 BOOT, RR FINAL DRIVE
    BOOT, RR FINAL DRIVE
  • 39
    27491-38F00 CASE, BREATHER
    CASE, BREATHER
  • 40
    09401-08411 CLAMP
    CLAMP
