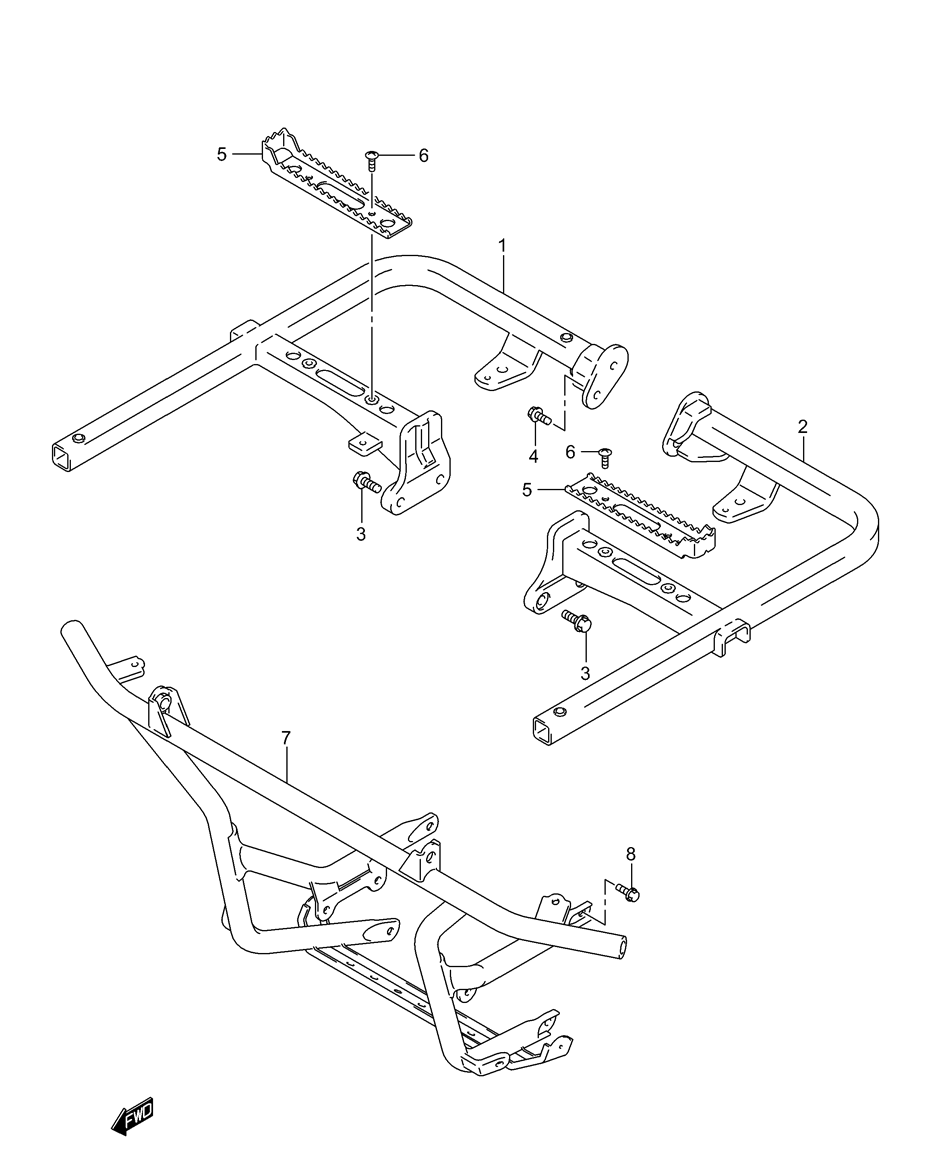

FOOTREST W/ BUMBER для Suzuki LT-A700X KINGQUAD 4x4 - 2007 года выпуска`
-
№АртикулНазвание
-
143510-31G00 FOOTREST, FRONT RIGHT HANDFOOTREST, FRONT RIGHT HAND
-
243520-31G00 FOOTREST, FRONT LEFT HANDFOOTREST, FRONT LEFT HAND
-
309103-10378 BOLT, FRONTBOLT, FRONT
-
409103-08286 BOLT 8X20, REARBOLT 8X20, REAR
-
543511-31G00 PLATE, FOOTRESTPLATE, FOOTREST
-
602142-06123 SCREWSCREW
-
743990-31G00 GRIP, FRONTGRIP, FRONT
-
809103-08283 BOLT, 8X16BOLT, 8X16
