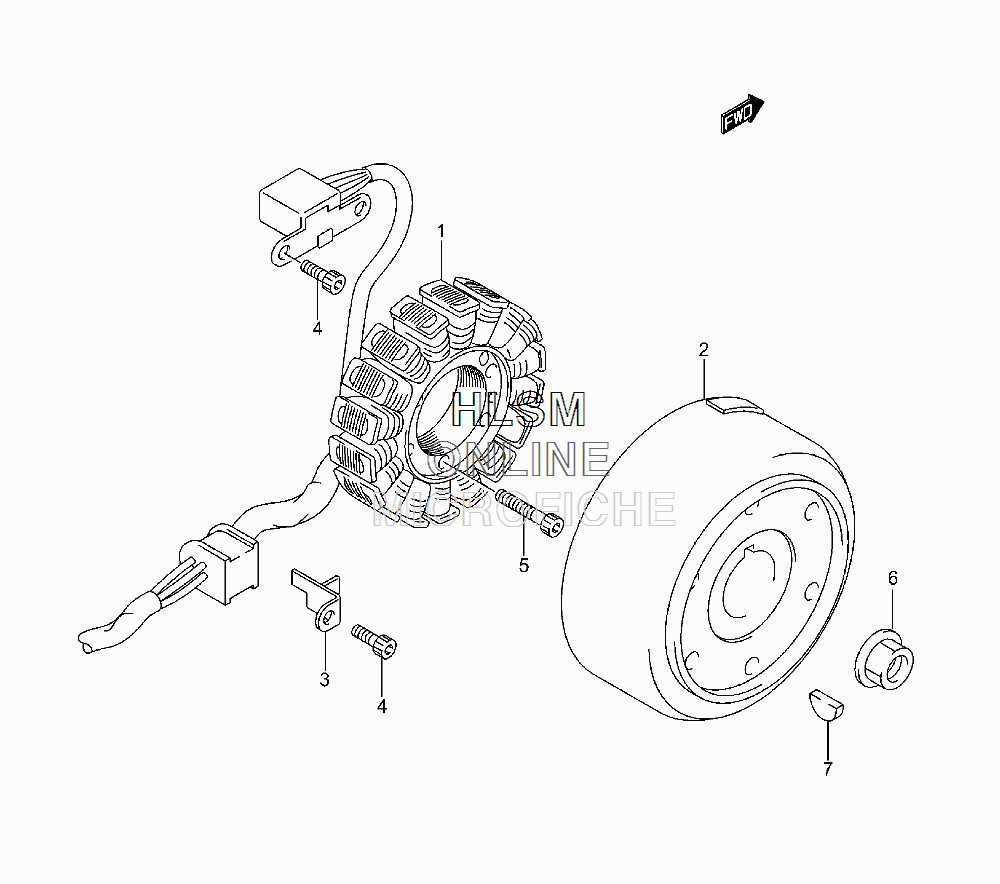

MAGNETO для Suzuki LT-Z400 QUADSPORT Z400 - 2006 года выпуска`
-
№АртикулНазвание
-
132101-07G00 STATOR ASSYSTATOR ASSY
-
232102-07G00 ROTOR ASSYROTOR ASSY
-
332371-13E00 CLAMP, MAGNETO LEAD NO.1CLAMP, MAGNETO LEAD NO.1
-
407130-05123 BOLT, PULSER/CLAMPBOLT, PULSER/CLAMP
-
507130-05253 BOLT, STATORBOLT, STATOR
-
631792-07G00 NUT, MAGNETO ROTORNUT, MAGNETO ROTOR
-
709420-04008 KEYKEY
