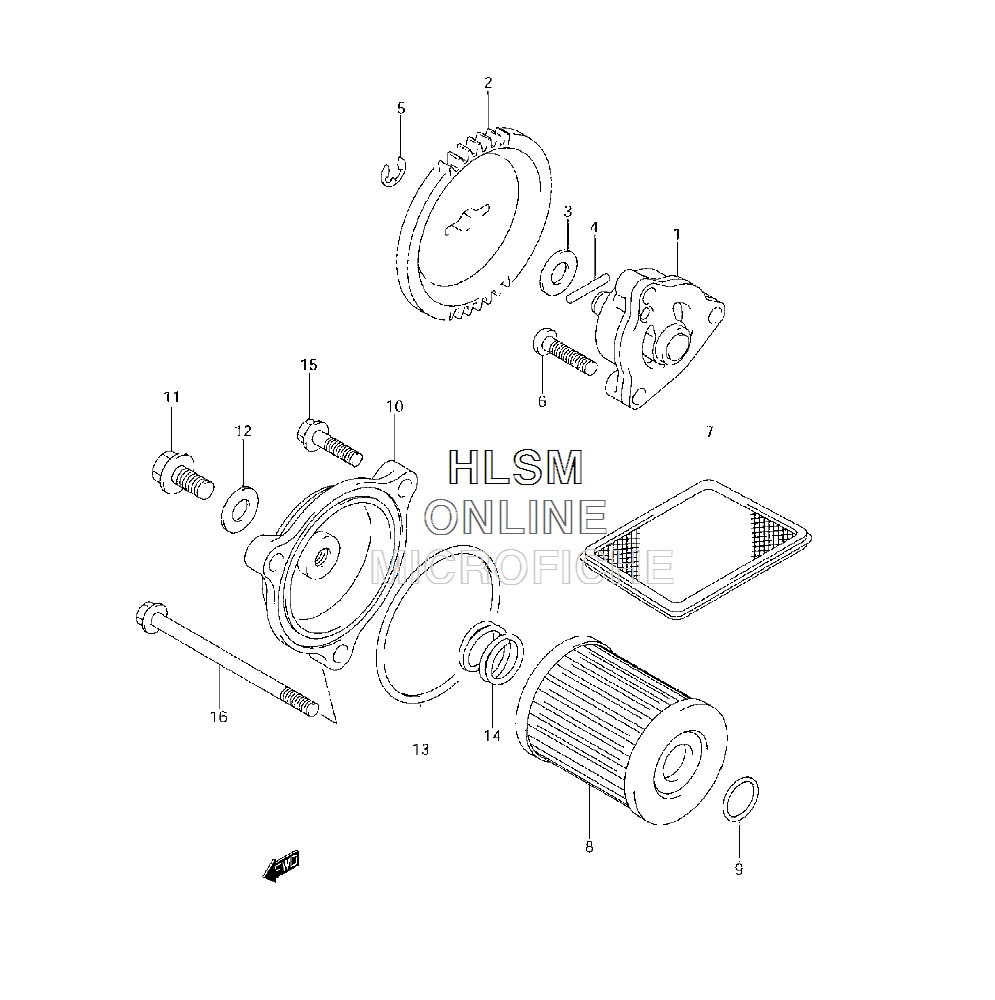

OIL PUMP для Suzuki LT-Z250 QUADSPORT Z250 - 2006 года выпуска`
-
№АртикулНазвание
-
116400-01412 PUMP, ENGINE OILPUMP, ENGINE OIL
-
216331-05G00 GEAR, DRIVEN (NT:47)GEAR, DRIVEN (NT:47)
-
309181-08186 WASHER, PUMP DRIVEN GEARWASHER, PUMP DRIVEN GEAR
-
409261-02001 PINPIN
-
508332-1106A CIRCLIPCIRCLIP
-
602112-0620B SCREWSCREW
-
716520-30A00 STRAINER, ENGINE OILSTRAINER, ENGINE OIL
-
816510-25C00 FILTER, ENGINE OILFILTER, ENGINE OIL
-
909280-13004 O RING (D:1.9,ID:13)O RING (D:1.9,ID:13)
-
1016512-05G10 CAP, OIL FILTERCAP, OIL FILTER
-
1101550-0812B PLUG, OIL CHECKPLUG, OIL CHECK
-
1209168-08029 GASKETGASKET
-
1309280-54001 O RING (D:2.4,ID:52.6)O RING (D:2.4,ID:52.6)
-
1409440-18002 SPRINGSPRING
-
1501547-0620B BOLTBOLT
-
1601547-0680B BOLTBOLT
