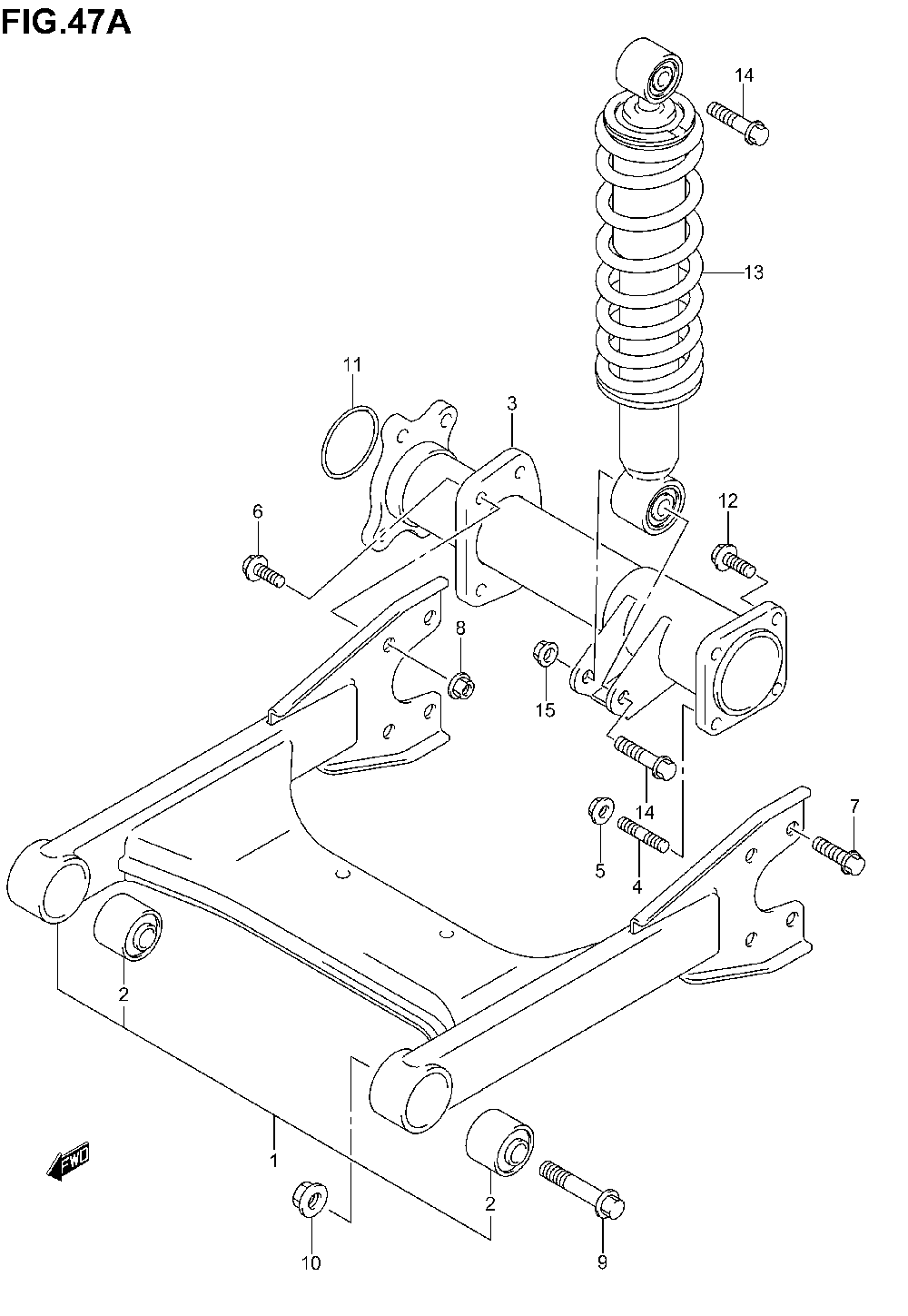

SUSPENSION - REAR SWING ARM для Suzuki LT-F250 OZARK - 2006 года выпуска`
-
№АртикулНазвание
-
161100-05850 SWINGINGARM SET, REARSWINGINGARM SET, REAR
-
261230-38F00 BUSH, PIVOTBUSH, PIVOT
-
361300-05G20 HOUSING, RR AXLE, RHOUSING, RR AXLE, R
-
401421-10253 BOLT, AXLE HOUSING FRONTBOLT, AXLE HOUSING FRONT
-
508316-10103 NUT, AXLE HOUSING FRONTNUT, AXLE HOUSING FRONT
-
609103-10216 BOLT, RR SWGARM BRACKET, RBOLT, RR SWGARM BRACKET, R
-
701550-10253 BOLT, RR SWGARM BRACKET, LBOLT, RR SWGARM BRACKET, L
-
809159-10058 NUT, RR SWGARM BRACKETNUT, RR SWGARM BRACKET
-
909103-12042 BOLT, PIVOTBOLT, PIVOT
-
1009159-12054 NUT, PIVOTNUT, PIVOT
-
1109280-70005 O RING, RR AXLE HOUSING REARO RING, RR AXLE HOUSING REAR
-
1201550-10303 BOLT, AXLE HOUSINGBOLT, AXLE HOUSING
-
1362100-05G10-019 ABSORBER ASSY, REAR SHOCK (BLACK)ABSORBER ASSY, REAR SHOCK (BLACK)
-
1409103-10064 BOLTBOLT
-
1508319-31107 NUTNUT
