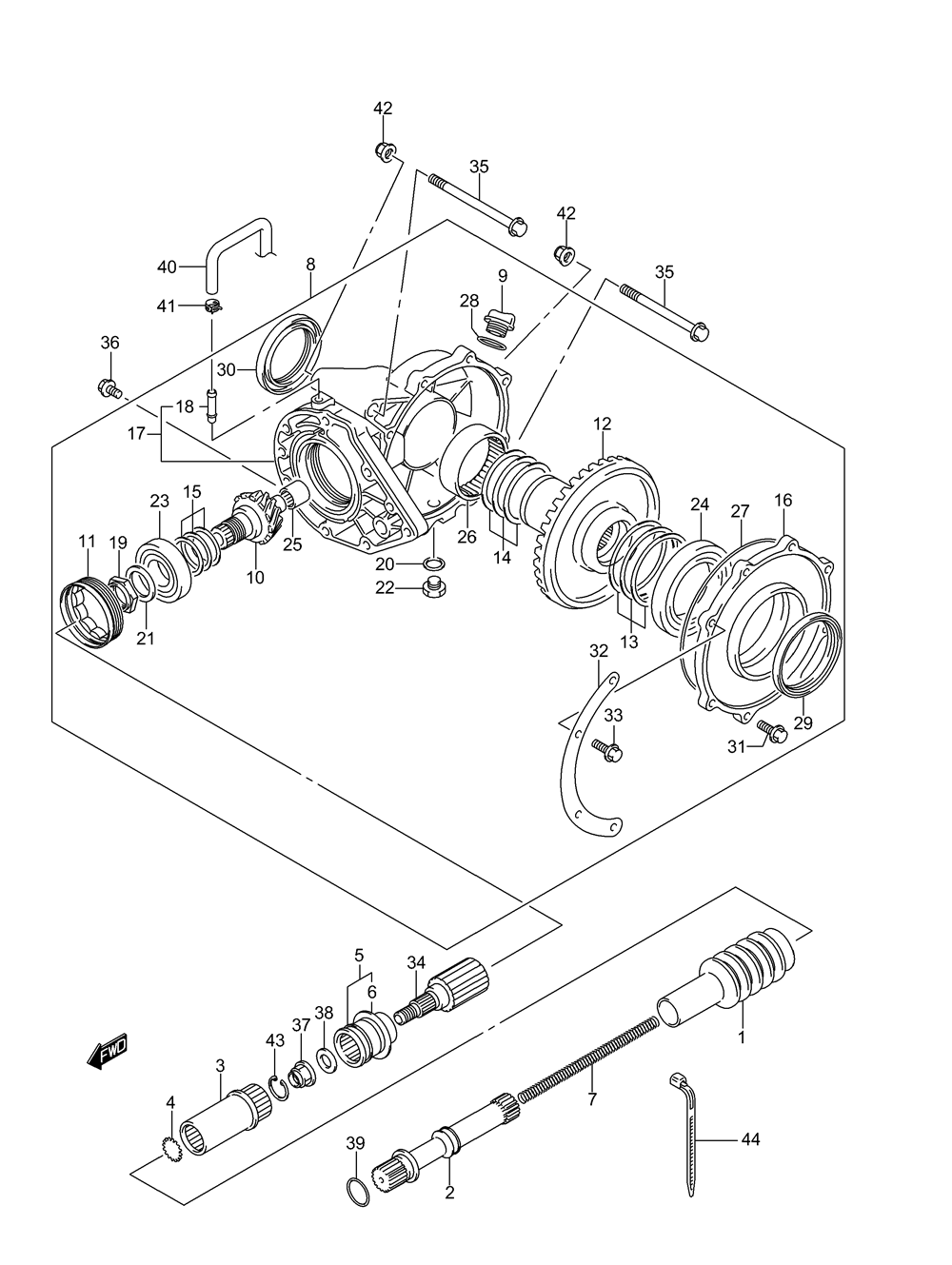

DIFFERENTIAL - REAR (UP TO F.NO.5SAAP41 67110000) для Suzuki LT-A700X KINGQUAD 4x4 - 2006 года выпуска`
-
№АртикулНазвание
-
127153-31G10 BOOT, JOINT SHAFTBOOT, JOINT SHAFT
-
227155-31G00 SHAFT, REAR PROPELLERSHAFT, REAR PROPELLER
-
327157-31G00 JOINT, REAR PROPELLERJOINT, REAR PROPELLER
-
427158-31G00 PLATE, REAR PROP SPRINGPLATE, REAR PROP SPRING
-
527170-31G10 COUPLING, RR PROP SHAFTCOUPLING, RR PROP SHAFT
-
627592-31G10 PLATE, OUTPUT OIL SEALPLATE, OUTPUT OIL SEAL
-
727192-31G00 SPRING, REAR PROPELLERSPRING, REAR PROPELLER
-
827410-31G00 CASE ASSY, REAR FINAL GEARCASE ASSY, REAR FINAL GEAR
-
909259-20022 PLUG, GEAR OIL FILLERPLUG, GEAR OIL FILLER
-
1027311-31G00 GEAR, RR FINAL DRIVEGEAR, RR FINAL DRIVE
-
1127312-38F00 STOPPER, FINAL DRIVESTOPPER, FINAL DRIVE
-
1227320-31G00 GEAR, RR FINAL DRIVENGEAR, RR FINAL DRIVEN
-
1327326-31810 SHIM SET, FINAL DRIVEN, LEFTSHIM SET, FINAL DRIVEN, LEFT
-
1427327-31810 SHIM SET, FINAL DRIVEN, RIGHTSHIM SET, FINAL DRIVEN, RIGHT
-
1527445-24810 SHIM SET, FINAL DRIVE GEARSHIM SET, FINAL DRIVE GEAR
-
1627451-31G00 CASE, REAR FINAL GEAR, LEFTCASE, REAR FINAL GEAR, LEFT
-
1727460-31G00 CASE, REAR FINAL GEAR, RIGHTCASE, REAR FINAL GEAR, RIGHT
-
1809364-08003 UNION, CASE BREATHERUNION, CASE BREATHER
-
1909140-28006 NUT, REAR FINAL DRIVENUT, REAR FINAL DRIVE
-
2009168-14002 GASKET, OIL DRAINGASKET, OIL DRAIN
-
2109181-28195 WASHER, REAR FINAL DRIVE GEARWASHER, REAR FINAL DRIVE GEAR
-
2209247-14013 PLUG, OIL DRAINPLUG, OIL DRAIN
-
2309262-28023 BEARING, FINAL DRIVEBEARING, FINAL DRIVE
-
2409262-65001 BEARING, FINAL DRIVEN, LEFTBEARING, FINAL DRIVEN, LEFT
-
2509263-20062 BEARING, FINAL DRIVEBEARING, FINAL DRIVE
-
2609263-55003 BEARING, FINAL DRIVEN, RIGHTBEARING, FINAL DRIVEN, RIGHT
-
2709280-00029 O-RING, BEARING CASE, LEFTO-RING, BEARING CASE, LEFT
-
2809280-17003 O-RING, GEAR OIL FILLERO-RING, GEAR OIL FILLER
-
2909283-65001 SEAL, FINAL DRIVEN GEAR, LEFTSEAL, FINAL DRIVEN GEAR, LEFT
-
3009283-65001 SEAL, FINAL DRIVEN GEAR, RIGHTSEAL, FINAL DRIVEN GEAR, RIGHT
-
3109103-08197 BOLT, REAR FINAL GEARBOLT, REAR FINAL GEAR
-
3227452-31G00 PLATE, RR FINAL GEAR COVERPLATE, RR FINAL GEAR COVER
-
3309103-08388 BOLT, RR FINAL GEAR CASEBOLT, RR FINAL GEAR CASE
-
3427594-31G00 SHAFT, RR FINAL DRIVESHAFT, RR FINAL DRIVE
-
3509103-10148 BOLT, REAR FINAL GEARBOLT, REAR FINAL GEAR
-
3609103-10313 BOLT, REAR FINAL GEARBOLT, REAR FINAL GEAR
-
3709159-14010 NUT, REAR PROP SHAFT COUPNUT, REAR PROP SHAFT COUP
-
3809181-14002 WASHER, REAR PROP SHAFTWASHER, REAR PROP SHAFT
-
3909280-20002 O-RING, RR PROPELLERO-RING, RR PROPELLER
-
4027491-31G00 HOSE, BREATHERHOSE, BREATHER
-
4109401-10403 CLAMP, BREATHER CASECLAMP, BREATHER CASE
-
4209159-10058 NUT, REAR FINAL GEARNUT, REAR FINAL GEAR
-
4308331-41226 CIRCLIP, JOINT SHAFTCIRCLIP, JOINT SHAFT
-
4409407-18402 CLAMP (L:165)CLAMP (L:165)
