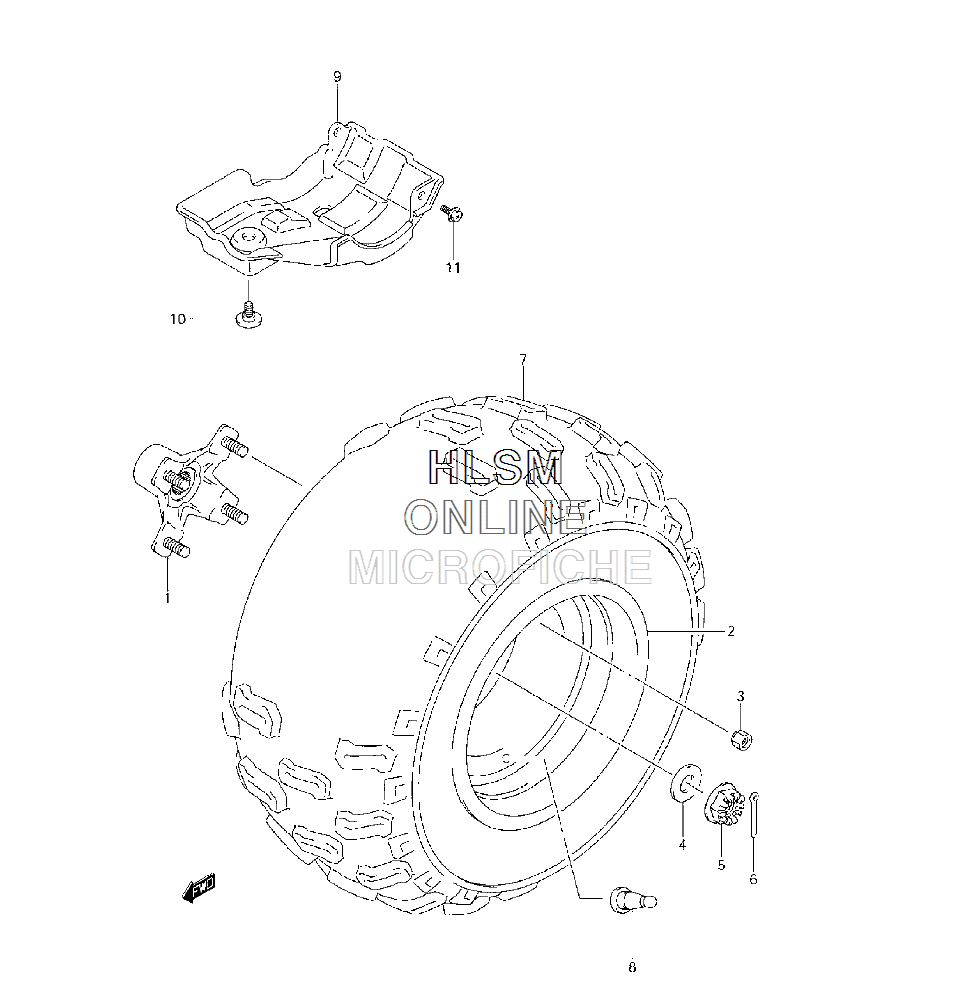

WHEEL - LEFT REAR для Suzuki LT-Z250 QUADSPORT - 2005 года выпуска`
-
№АртикулНазвание
-
164110-21G20-019 HUB, REAR WHEEL LEFT HANDHUB, REAR WHEEL LEFT HAND
-
265310-07G00 RIM, REAR WHEEL (9X8.0AT)RIM, REAR WHEEL (9X8.0AT)
-
309140-10021 NUTNUT
-
409164-18004 WASHERWASHER
-
509141-18010 NUT, HUBNUT, HUB
-
604111-40408 COTTER PINCOTTER PIN
-
765110-21G00 TIRE, REARTIRE, REAR
-
843130-24A00 VALVE ASSY, WHEEL RIM, TR412VALVE ASSY, WHEEL RIM, TR412
-
961391-05G01 PROTECTOR, FINAL CASEPROTECTOR, FINAL CASE
-
1061393-09F00 BOLT, FRONTBOLT, FRONT
-
1109111-06061 BOLT, REARBOLT, REAR
