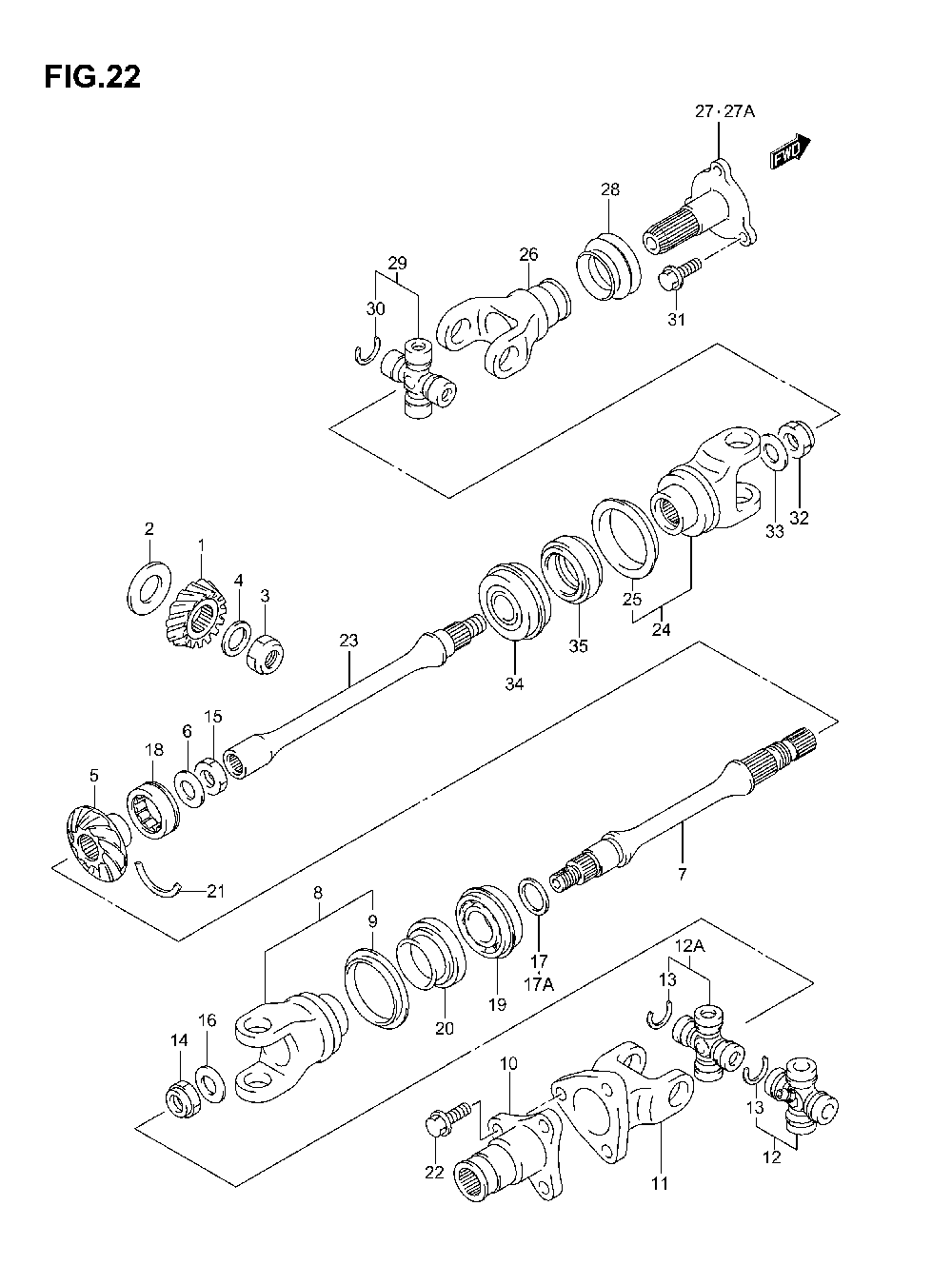

DRIVESHAFT - REAR для Suzuki LT-F400F EIGER 4x4 MANUAL - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    24911-44D11 GEAR, SEC DRIVE BEVEL
    GEAR, SEC DRIVE BEVEL
  • 2
    24935-19810 SHIM SET, SEC DRIVE BEVEL GEAR
    SHIM SET, SEC DRIVE BEVEL GEAR
  • 3
    09140-20012 NUT, SEC DRIVE BEVEL GEAR
    NUT, SEC DRIVE BEVEL GEAR
  • 4
    09181-20223 WASHER, SEC DRIVE BEVEL GEAR
    WASHER, SEC DRIVE BEVEL GEAR
  • 5
    24921-44D10 GEAR, SEC DRIVEN BEVEL
    GEAR, SEC DRIVEN BEVEL
  • 6
    08211-22362 WASHER, SEC DRIVEN GEAR
    WASHER, SEC DRIVEN GEAR
  • 7
    24971-38F50 SHAFT, SEC DRIVEN OUTPUT REAR
    SHAFT, SEC DRIVEN OUTPUT REAR
  • 8
    27130-03G00 YOKE, REAR DRIVE OUTPUT
    YOKE, REAR DRIVE OUTPUT
  • 9
    27592-38F00 PLATE, OUTPUT
    PLATE, OUTPUT
  • 10
    27150-38F00 SHAFT, PROPELLER REAR
    SHAFT, PROPELLER REAR
  • 11
    27161-38F11 YOKE, PROP SHAFT JOINT REAR
    YOKE, PROP SHAFT JOINT REAR
  • 12A
    27200-19810 JOINT SET, UNIVERSAL
    JOINT SET, UNIVERSAL
  • 13
    09380-20016 CIRCLIP
    CIRCLIP
  • 14
    09159-16003 NUT, REAR DRIVE OUTPUT YOKE
    NUT, REAR DRIVE OUTPUT YOKE
  • 15
    09159-22005 NUT, SEC DRIVEN GEAR
    NUT, SEC DRIVEN GEAR
  • 16
    09160-16026 WASHER, REAR OUTPUT FLANGE
    WASHER, REAR OUTPUT FLANGE
  • 17
    09181-25051 SHIM, SEC DRIVEN 25X34X.060
    SHIM, SEC DRIVEN 25X34X.060
  • 17
    09181-25052 SHIM, SEC DRIVEN 25X34X.06.5
    SHIM, SEC DRIVEN 25X34X.06.5
  • 17
    09181-25053 SHIM, SEC DRIVEN 25X34X.070
    SHIM, SEC DRIVEN 25X34X.070
  • 17
    09181-25054 SHIM, SEC DRIVEN 25X34X.075
    SHIM, SEC DRIVEN 25X34X.075
  • 17
    09181-25055 SHIM, SEC DRIVEN 25X34X.080
    SHIM, SEC DRIVEN 25X34X.080
  • 17
    09181-25056 SHIM, SEC DRIVEN 25X34X.085
    SHIM, SEC DRIVEN 25X34X.085
  • 17
    09181-25057 SHIM, SEC DRIVEN 25X34X.090
    SHIM, SEC DRIVEN 25X34X.090
  • 17
    09181-25058 SHIM, SEC DRIVEN 25X34X.095
    SHIM, SEC DRIVEN 25X34X.095
  • 17
    09181-25059 SHIM, SEC DRIVEN 25X34X1.00
    SHIM, SEC DRIVEN 25X34X1.00
  • 17
    09181-25060 SHIM, SEC DRIVEN 25X34X1.05
    SHIM, SEC DRIVEN 25X34X1.05
  • 17
    09181-25061 SHIM, SEC DRIVEN 25X34X1.10
    SHIM, SEC DRIVEN 25X34X1.10
  • 17
    09181-25062 SHIM, SEC DRIVEN 25X34X1.15
    SHIM, SEC DRIVEN 25X34X1.15
  • 17
    09181-25063 SHIM, SEC DRIVEN 25X34X1.20
    SHIM, SEC DRIVEN 25X34X1.20
  • 18
    09263-30050 BRG, SEC DRIVEN GEAR, M
    BRG, SEC DRIVEN GEAR, M
  • 19
    09267-25006 BRG, SEC DRIVEN OUTPUT SFT REAR
    BRG, SEC DRIVEN OUTPUT SFT REAR
  • 20
    09283-34008 OIL SEAL, DRIVEN SFT, REAR
    OIL SEAL, DRIVEN SFT, REAR
  • 21
    09390-50002 RING, SEC DRIVEN BRG, M
    RING, SEC DRIVEN BRG, M
  • 22
    01550-10203 BOLT, PROP SHAFT, REAR
    BOLT, PROP SHAFT, REAR
  • 23
    24961-38F50 SHAFT, SEC DRIVEN OUTPUT, FRONT
    SHAFT, SEC DRIVEN OUTPUT, FRONT
  • 24
    27130-03G00 YOKE, FR DRIVE OUTPUT
    YOKE, FR DRIVE OUTPUT
  • 25
    27592-38F00 PLATE, OUTPUT
    PLATE, OUTPUT
  • 26
    27140-03G00 YOKE, PROP SFT JOINT, FRONT
    YOKE, PROP SFT JOINT, FRONT
  • 27A
    27150-38F60 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 28
    27153-03G00 BOOT, PROP SHAFT
    BOOT, PROP SHAFT
  • 29
    27200-19810 JOINT SET, UNIVERSAL
    JOINT SET, UNIVERSAL
  • 30
    09380-20016 CIRCLIP
    CIRCLIP
  • 31
    09103-10310 BOLT, PROPELLER SHAFT
    BOLT, PROPELLER SHAFT
  • 32
    09159-16003 NUT, FR YOKE
    NUT, FR YOKE
  • 33
    09160-16026 WASHER, FRONT DRIVE OUTPUT YOKE 16X30X3
    WASHER, FRONT DRIVE OUTPUT YOKE 16X30X3
  • 34
    09262-25131 BEARING, SEC DRIVEN, FRONT 25X52X15
    BEARING, SEC DRIVEN, FRONT 25X52X15
  • 35
    09283-34008 OIL SEAL, FRONT
    OIL SEAL, FRONT
