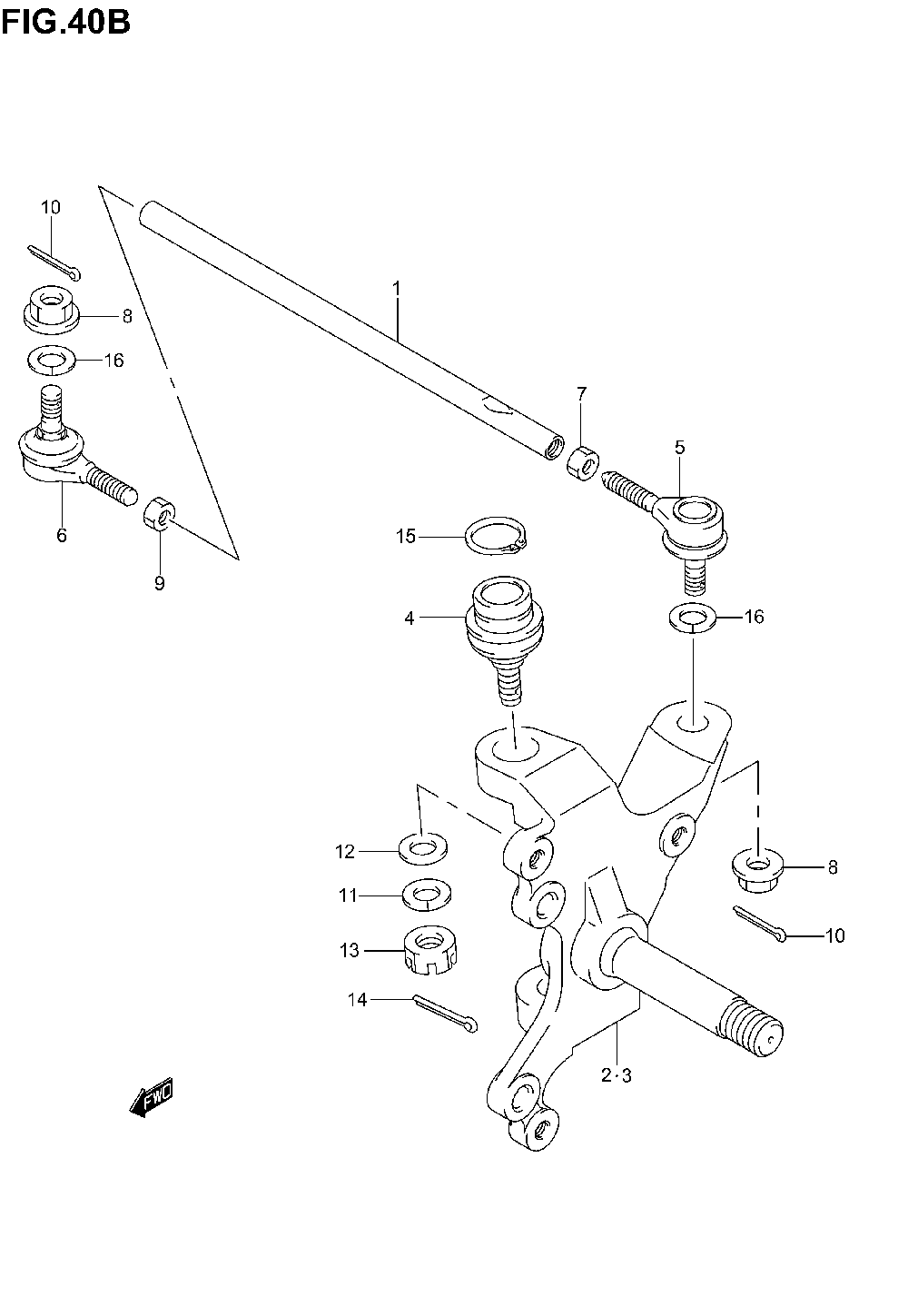

STEERING KNUCKLE W/ TIE RODS для Suzuki LT-F250 OZARK - 2005 года выпуска`
-
№АртикулНазвание
-
151281-05G00 TIE ROD, STEERINGTIE ROD, STEERING
-
251230-05G20 KNUCKLE, STEERING RIGHT HANDKNUCKLE, STEERING RIGHT HAND
-
351240-05G20 KNUCKLE, STEERING LEFT HANDKNUCKLE, STEERING LEFT HAND
-
451210-31G00 END, KNUCKLE STEERING UPPEREND, KNUCKLE STEERING UPPER
-
551260-21G00 ROD, END RIGHT HANDROD, END RIGHT HAND
-
651270-21G00 ROD, END LEFT HANDROD, END LEFT HAND
-
709140-10043 NUT, TIE ROD RIGHT HANDNUT, TIE ROD RIGHT HAND
-
808314-40103 NUT, ROD ENDNUT, ROD END
-
909140-10027 NUT, TIE ROD LEFT HANDNUT, TIE ROD LEFT HAND
-
1004111-20208 COTTER PIN, ROD ENDCOTTER PIN, ROD END
-
1109162-10008 WASHER, KNUCKLE ENDWASHER, KNUCKLE END
-
1208322-01103 WASHER, KNUCKLE ENDWASHER, KNUCKLE END
-
1308314-40103 NUT, KNUCKLE ENDNUT, KNUCKLE END
-
1404111-20208 COTTER PIN, KNUCKLE ENDCOTTER PIN, KNUCKLE END
-
1508331-31306 CIRCLIPCIRCLIP
-
1609162-10008 WASHER, ROD ENDWASHER, ROD END
