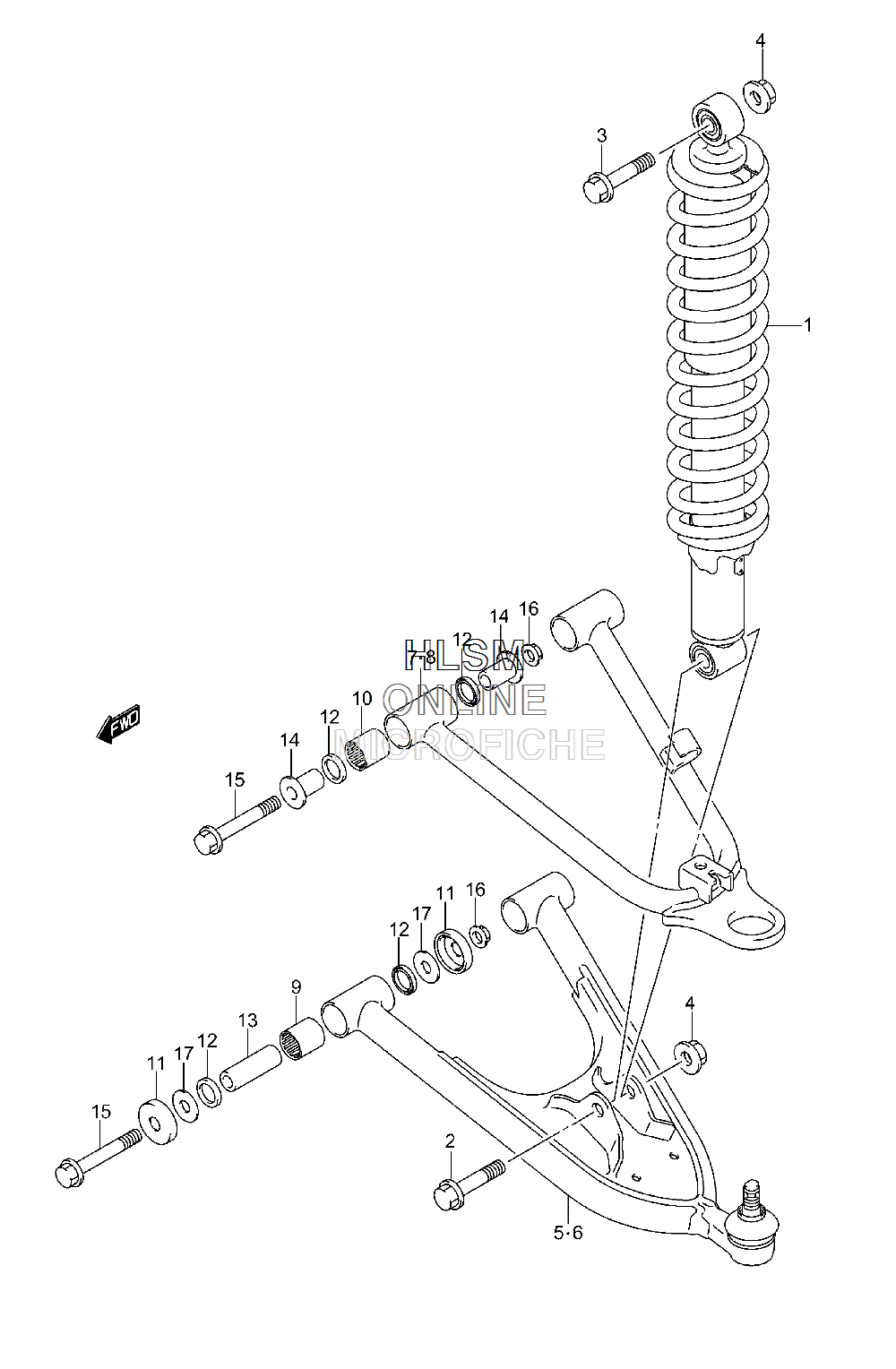

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-Z400 QUADSPORT Z400 - 2004 года выпуска

№

Артикул

Название
1

52100-07G00-37W ABSORBER ASSY, FRONT SHOCK (RED)

ABSORBER ASSY, FRONT SHOCK (RED)

2 281 500 ₽
2

09103-10352 BOLT, LOWER (10X48)

BOLT, LOWER (10X48)

860 ₽
3

09103-10351 BOLT, UPPER (10X38)

BOLT, UPPER (10X38)

860 ₽
4

09159-10058 NUT

NUT

620 ₽
5

52410-07G00-YD8 ARM ASSY, SUSPENSION LOWER RIGHT HAND

ARM ASSY, SUSPENSION LOWER RIGHT HAND

1 592 500 ₽
6

52420-07G00-YD8 ARM ASSY, SUSPENSION LOWER LEFT HAND

ARM ASSY, SUSPENSION LOWER LEFT HAND

1 592 500 ₽
7

52430-07G00-YD8 ARM ASSY, SUSPENSION UPPER RIGHT HAND

ARM ASSY, SUSPENSION UPPER RIGHT HAND

874 900 ₽
8

52440-07G00-YD8 ARM ASSY, SUSPENSION UPPER LEFT HAND

ARM ASSY, SUSPENSION UPPER LEFT HAND

874 900 ₽
9

09263-17033 BEARING, SUSPENSION ARM PIVOT

BEARING, SUSPENSION ARM PIVOT

4 180 ₽
10

09263-17034 BEARING, UPPER

BEARING, UPPER

4 810 ₽
11

52454-43B00 SEAL, SUSPENSION ARM PIVOT DUST

SEAL, SUSPENSION ARM PIVOT DUST

1 540 ₽
12

09285-17001 SEAL, PIVOT INNER DUST

SEAL, PIVOT INNER DUST

660 ₽
13

52455-43B00 SPACER, LOWER

SPACER, LOWER

3 220 ₽
14

52455-07G00 SPACER, UPPER

SPACER, UPPER

4 040 ₽
15

09103-10033 BOLT

BOLT

1 080 ₽
16

09159-10058 NUT

NUT

620 ₽
17

08211-10281 WASHER

WASHER

350 ₽
