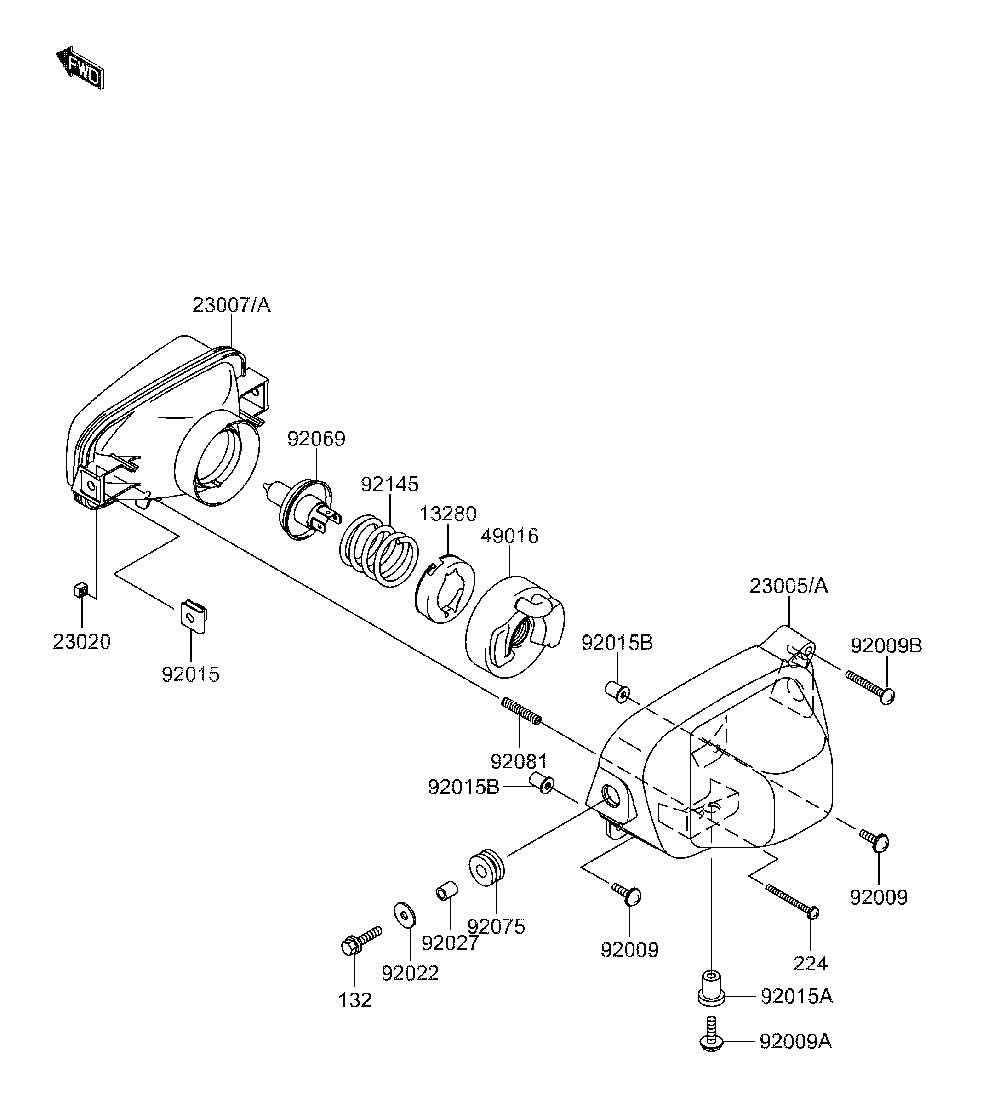

HEADLIGHT для Suzuki LT-V700F (CA) TWIN PEAKS - 2004 года выпуска

  • №
    Артикул
    Название
  • 13280
    K1328-01198 HOLDER, BULB SETTING
    HOLDER, BULB SETTING
  • 23005
    K2300-51180 BODY-COMP-HEAD LAMP, LEFT HAND
    BODY-COMP-HEAD LAMP, LEFT HAND
  • 23005A
    K2300-51181 BODY-COMP-HEAD LAMP, RIGHT HAND
    BODY-COMP-HEAD LAMP, RIGHT HAND
  • 23007
    K2300-71389 LENS-COMP, HEAD LAMP, LEFT HAND
    LENS-COMP, HEAD LAMP, LEFT HAND
  • 23007A
    K2300-71390 LENS-COMP, HEAD LAMP, RIGHT HAND
    LENS-COMP, HEAD LAMP, RIGHT HAND
  • 23020
    KK230-20018 NUT, 4MM, FOCUS ADJUST
    NUT, 4MM, FOCUS ADJUST
  • 49016
    K4901-61213 COVER-SEAL, HEAD LAMP
    COVER-SEAL, HEAD LAMP
  • 92009
    K9200-91654 SCREW, 5X16, BLACK
    SCREW, 5X16, BLACK
  • 92009A
    K9200-91664 SCREW, 6X22
    SCREW, 6X22
  • 92009B
    K9200-91928 SCREW, TAPPING, 5X40
    SCREW, TAPPING, 5X40
  • 92015
    K9201-51094 NUT, 6MM
    NUT, 6MM
  • 92015A
    K9201-51692 NUT, RUBBER, 6MM
    NUT, RUBBER, 6MM
  • 92015B
    K9201-51757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92022
    KK920-22125 WASHER, 6.5X20X1.6
    WASHER, 6.5X20X1.6
  • 92027
    KK920-27162 COLLAR, 6.8X10X12
    COLLAR, 6.8X10X12
  • 92069
    K9206-91114 BULB, 12V 45/45W, T15
    BULB, 12V 45/45W, T15
  • 92075
    K9207-51690 DAMPER
    DAMPER
  • 92081
    K9208-11896 SPRING, FOCUS ADJUST
    SPRING, FOCUS ADJUST
  • 92145
    K9214-51346 SPRING, BULB SETTING
    SPRING, BULB SETTING
  • 132
    KK132-H0625 BOLT-FLANGED-SMALL, 6X25
    BOLT-FLANGED-SMALL, 6X25
  • 224
    KK224-D0445 SCREW-PAN-WP-CROS
    SCREW-PAN-WP-CROS
