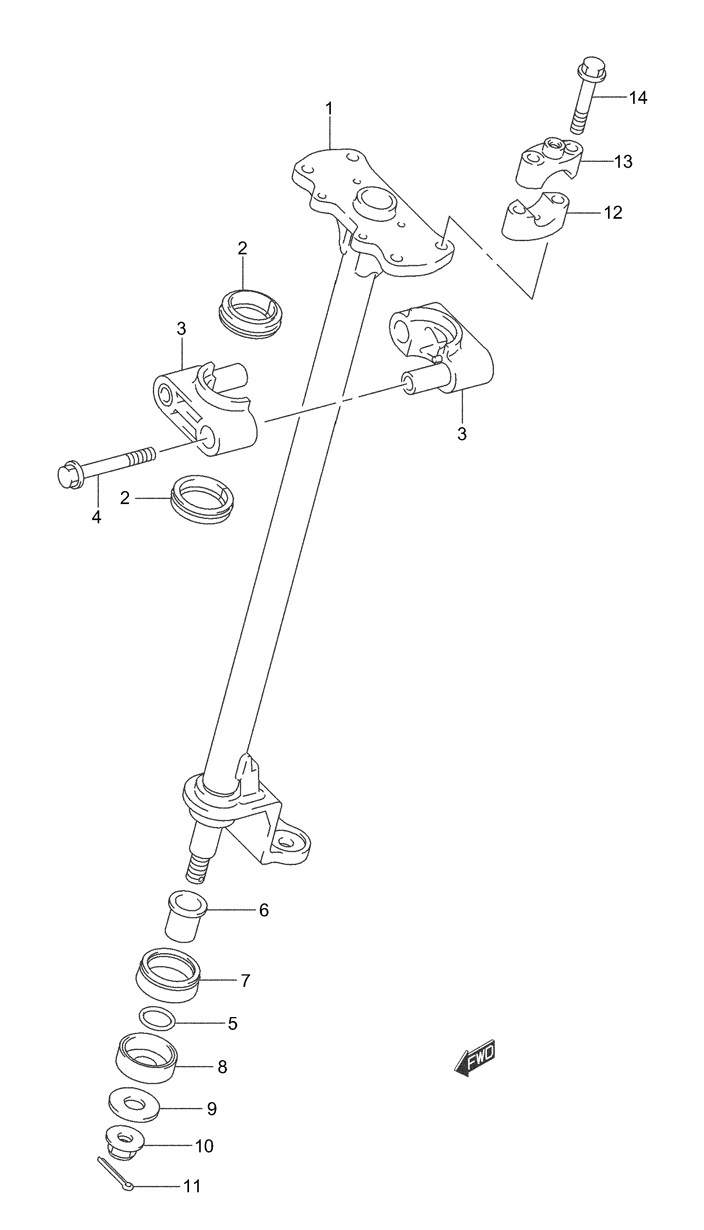

STEERING SHAFT для Suzuki LT-A500FB VISION 4X4 AUTOMATIC LTD. EDITION - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    51650-03G60 SHAFT, STEERING
    SHAFT, STEERING
  • 2
    51678-24500 DUST SEAL, STEERING HOLDER (27X38X8.5)
    DUST SEAL, STEERING HOLDER (27X38X8.5)
  • 3
    51670-24500 HOLDER, STEERING SHAFT
    HOLDER, STEERING SHAFT
  • 4
    01550-08753 BOLT
    BOLT
  • 5
    09280-17003 O RING (ID:16.8,D:3.10)
    O RING (ID:16.8,D:3.10)
  • 6
    51661-09F00 BUSH, STEERING SHAFT LOWER (17X26X36.9)
    BUSH, STEERING SHAFT LOWER (17X26X36.9)
  • 7
    51662-19A01 DUST SEAL, STEERING SHAFT (30X40X14.4)
    DUST SEAL, STEERING SHAFT (30X40X14.4)
  • 8
    51663-24500 DUST SEAL, STEERING LOWER (12.2X38X12)
    DUST SEAL, STEERING LOWER (12.2X38X12)
  • 9
    09160-12073 WASHER (12.5X32X2.3)
    WASHER (12.5X32X2.3)
  • 10
    08319-31123 NUT
    NUT
  • 11
    04111-20208 COTTER PIN
    COTTER PIN
  • 12
    56211-09F00-291 CLAMP, HANDLEBAR LOWER (BLACK)
    CLAMP, HANDLEBAR LOWER (BLACK)
  • 13
    56211-29900-291 CLAMP, HANDLEBAR UPPER (BLACK)
    CLAMP, HANDLEBAR UPPER (BLACK)
  • 14
    01550-08553 BOLT
    BOLT
